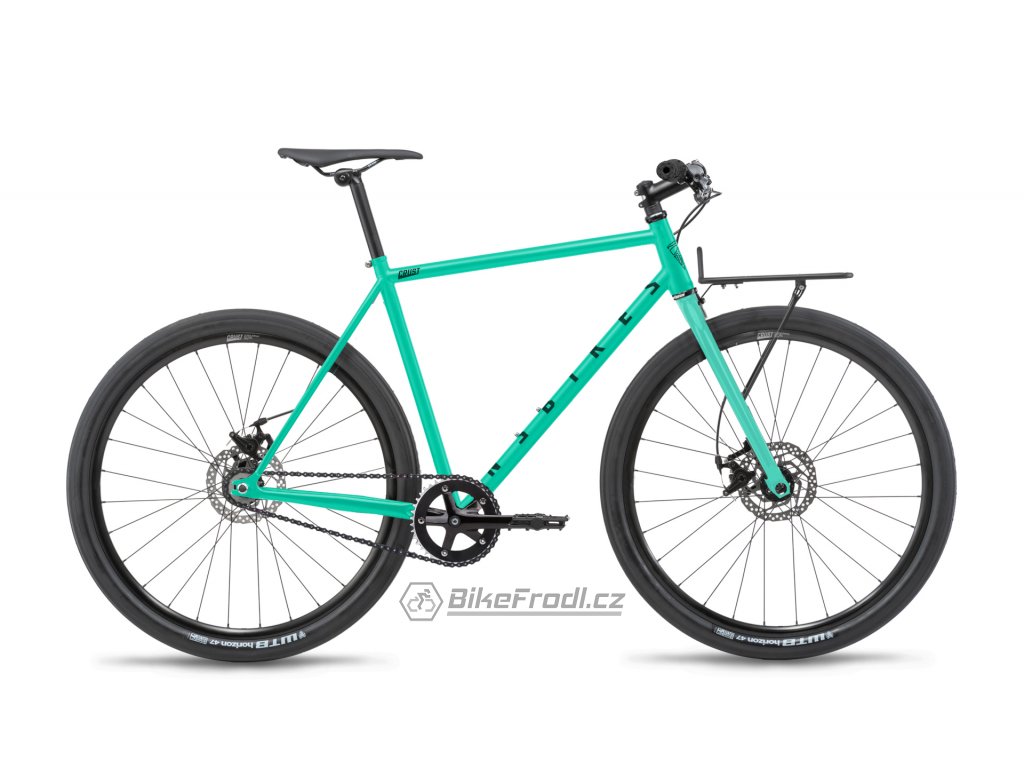

NS BIKES Crust
Specifikace
| Specifikace se mohou změnit bez předchozího upozornění. Skutečné barvy a design se mohou mírně lišit od obrázků na webových stránkách. |
Geometrie
Crust | S | M | L | |
| Wheel | size | 27,5'' | ||
| Fork | travel | A-C 412mm | A-C 412mm | A-C 412mm |
| Reach | mm | 400 | 415 | 430 |
| in | 15,7 | 16,3 | 16,9 | |
| FC | mm | 629 | 643 | 663 |
| in | 24,8 | 25,3 | 26,1 | |
| Standover | mm | 788 | 812 | 838 |
| in | 31,0 | 32,0 | 33,0 | |
| Stack | mm | 588 | 597 | 612 |
| in | 23,1 | 23,5 | 24,1 | |
| Effective TT | mm | 586 | 599 | 618 |
| in | 23,1 | 23,6 | 24,3 | |
| Actual TT | mm | 559 | 576 | 599 |
| in | 22,0 | 22,7 | 23,6 | |
| Seat tube | mm | 500 | 535 | 570 |
| in | 19,7 | 21,1 | 22,4 | |
| Chain stays | mm | 420 | 420 | 420 |
| in | 16,5 | 16,5 | 16,5 | |
| BB rise | mm | -69 | -69 | -69 |
| in | -2,7 | -2,7 | -2,7 | |
| Headtube | angle | 150 | 150 | 150 |
| ST angle | effective | 73 | 73 | 73 |
| Wheelbase | mm | 1001 | 1012 | 1018 |
| in | 39,4 | 39,8 | 40,1 | |
