Řada horských kol Genius je koncipována za jedním jediným účelem - ovládnout hory. Na stoupání, sjezdy i na všechno ostatní je Genius vždy ten nejlepší nástroj.

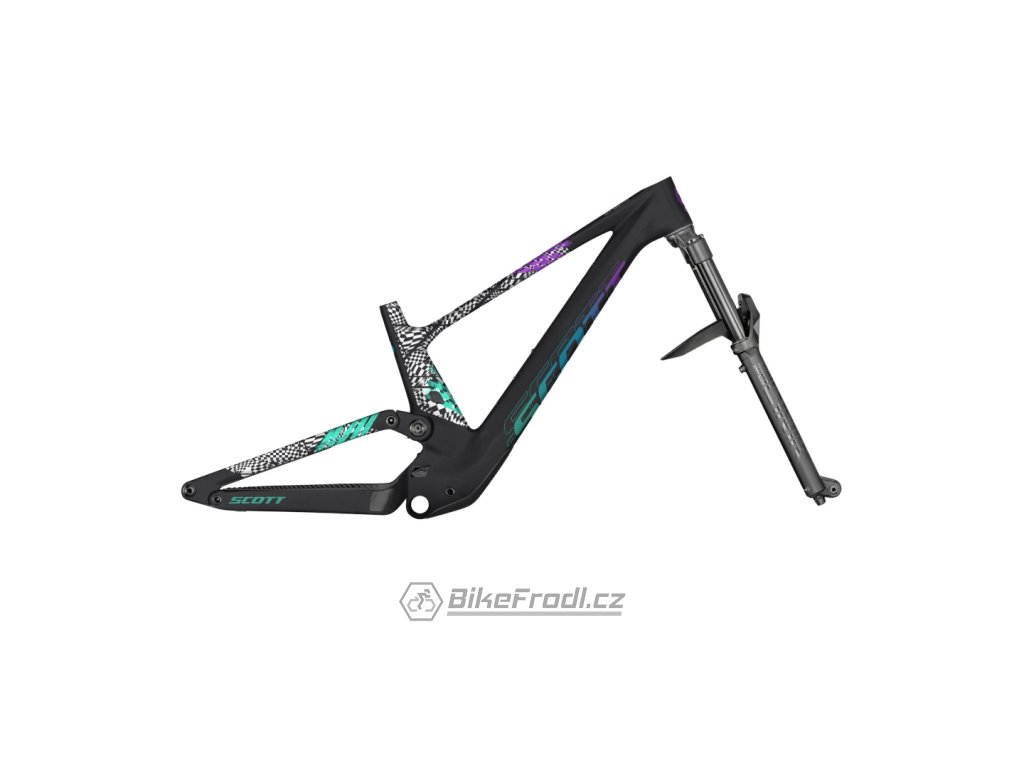

Rám + tlumči SCOTT Genius 900 Tuned HMX
Genius byl vždy naším oblíbeným modelem. Chytré tlumení, praktické vlastnosti a nejvytříbenější design tvoří neuvěřitelné trailové kolo, kterého se nikdy dost nenabažíte. Genius - kamkoli, kdykoli.
Technická specifikace
| Rám | Genius Carbon HMX Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline |
| Zdvih | Climb - 100 - 150mm |
| Tlumič | FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion Kashima / SCOTT custom w. travel / geo adj. 3 modes: Climb-Ramp Control-Descend Custom large Air volume / Comp & Reb. Adj. Bearing Hardware / T185X55mm |
| Příslušenství | Tracloc Remote Control Shifter Kit Syncros - Acros Pro Headset System Syncros rear axle |
| Hmotnost v kg (cca) | Frame without Shock 2295g |
| Hmotnost v lb (cca) | Frame without Shock 5.06 lbs |
Geometrie
| S | M | L | XL | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle (-0.6° Headset Setting) | 63.9 ° | 63.9 ° | 63.9 ° | 63.9 ° | ||||||||||||||
| B | head tube length | 90.0 mm | 3.5 in | 100.0 mm | 3.9 in | 120.0 mm | 4.7 in | 135.0 mm | 5.3 in | ||||||||||
| C | top tube horizontal | 570.1 mm | 22.4 in | 602.2 mm | 23.7 in | 631.3 mm | 24.9 in | 659.3 mm | 26.0 in | ||||||||||
| D | standover height | 728.5 mm | 28.7 in | 738.5 mm | 29.1 in | 753.5 mm | 29.7 in | 768.5 mm | 30.3 in | ||||||||||
| E | BB offset | -33.0 mm | -1.3 in | -33.0 mm | -1.3 in | -33.0 mm | -1.3 in | -33.0 mm | -1.3 in | ||||||||||
| F | BB height | 342.5 mm | 13.5 in | 342.5 mm | 13.5 in | 342.5 mm | 13.5 in | 342.5 mm | 13.5 in | ||||||||||
| G | wheel base | 1,195.0 mm | 47.0 in | 1,229.0 mm | 48.4 in | 1,263.0 mm | 49.7 in | 1,294.0 mm | 50.9 in | ||||||||||
| H | BB center to toptube center | ||||||||||||||||||
| I | BB center to top of seattube | 380.0 mm | 15.0 in | 410.0 mm | 16.1 in | 440.0 mm | 17.3 in | 470.0 mm | 18.5 in | ||||||||||
| J | seat angle | 76.8 ° | 77.1 ° | 77.2 ° | 77.4 ° | ||||||||||||||
| K | chainstay | 440.0 mm | 17.3 in | 440.0 mm | 17.3 in | 440.0 mm | 17.3 in | 440.0 mm | 17.3 in | ||||||||||
| L | reach | 430.0 mm | 16.9 in | 460.0 mm | 18.1 in | 485.0 mm | 19.1 in | 510.0 mm | 20.1 in | ||||||||||
| M | stack | 617.0 mm | 24.3 in | 626.1 mm | 24.6 in | 644.2 mm | 25.4 in | 657.8 mm | 25.9 in | ||||||||||
| N | stem length | 40.0 mm | 1.6 in | 40.0 mm | 1.6 in | 40.0 mm | 1.6 in | 40.0 mm | 1.6 in | ||||||||||
| 0 | trail | 125.8 mm | 5.0 in | 125.8 mm | 5.0 in | 125.8 mm | 5.0 in | 125.8 mm | 5.0 in | ||||||||||
| P | Fork length | 571.0 mm | 22.5 in | 571.0 mm | 22.5 in | 571.0 mm | 22.5 in | 571.0 mm | 22.5 in | ||||||||||
| Q | Maximum Seatpost Insertion | 173.0 mm | 6.8 in | 204.0 mm | 8.0 in | 234.0 mm | 9.2 in | 265.0 mm | 10.4 in | ||||||||||
| R | Crank Length | 170.0 mm | 6.7 in | 170.0 mm | 6.7 in | 170.0 mm | 6.7 in | 170.0 mm | 6.7 in |
