Nový Patron nabízí dvě odlišná nastavení na různé jízdní styly, obě k dispozici na stejném hlavním rámu: všestranná řada 900 je konstruovaná, aby bavila bez ohledu na terén. Řada ST je navržena na agresivní technické tratě a zvládání větších nárazů. Patron je dostupný jako karbonový či hliníkový, vyznačuje se elegantně začleněnou 800Wh baterií, lépe umístěným tlumičem, krytem se specifickou technologií, velkorysým prostorem pro pláště a u všech modelů dobře vyváženou nastavitelnou geometrií. Získáte tak skutečně jedinečné, krásné a rychlé kolo.

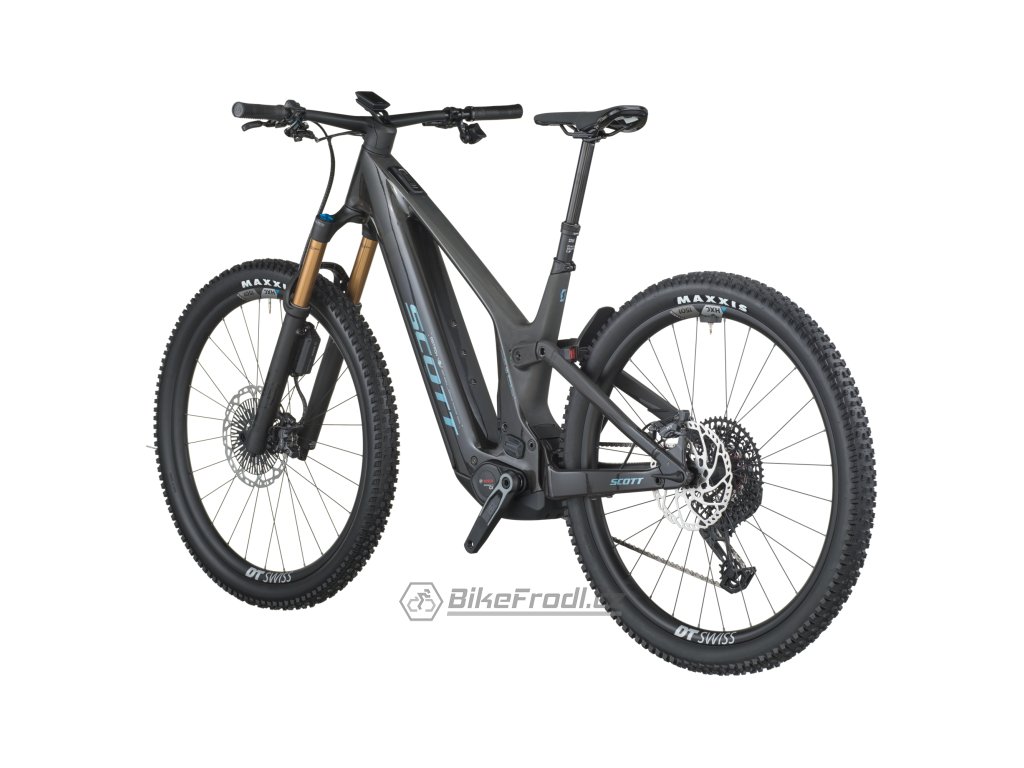

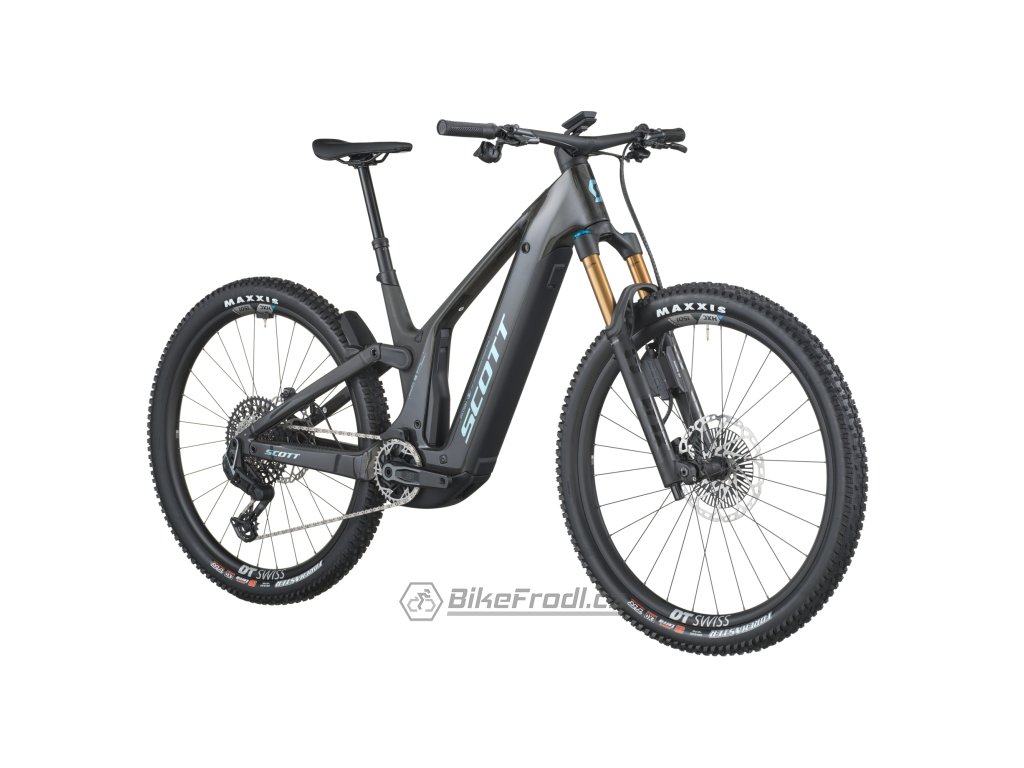

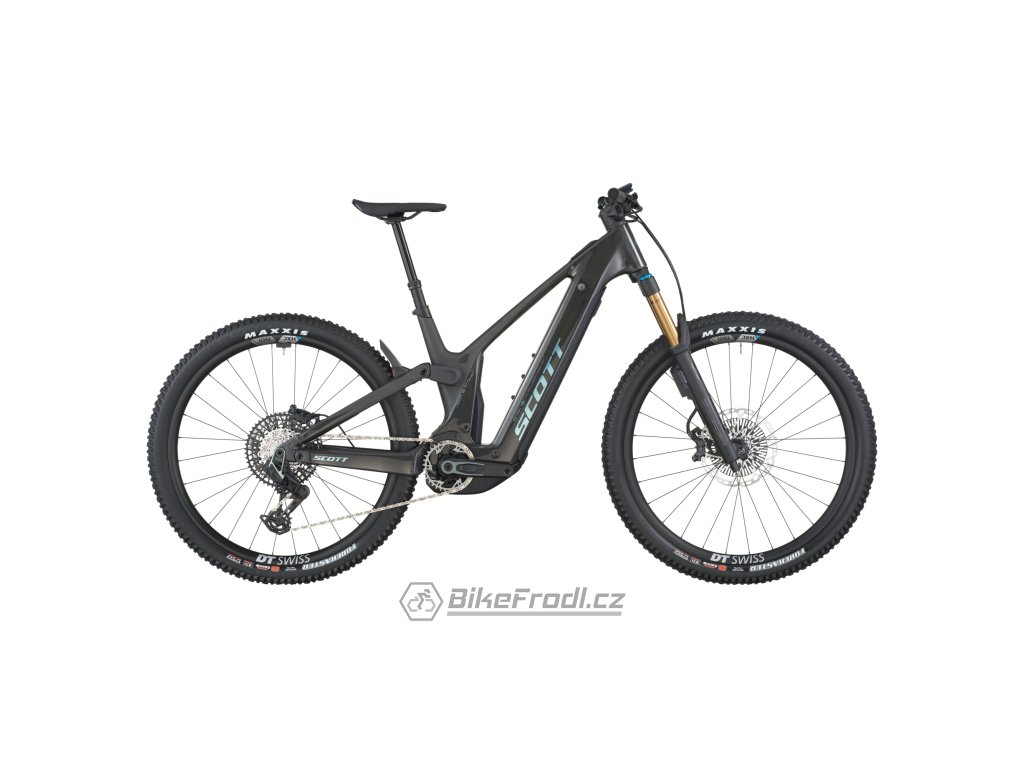

Horské elektrokolo SCOTT Patron 900 Ultimate
To nejlepší z obou světů. Má Patron 900 Ultimate.
Klíčové vlastnosti
- Carbon Main Frame, Alloy Rear Triangle
- Bosch CX, 800Wh PowerTube, SmartSystem
- Vidlice FOX 38 Factory, zdvih 150 mm
- Tlumič FOX Nude 6T EVOL, TracLoc, zdvih 150 mm
- SRAM X0 AXS Transmission, 12 rychlostí
- Shimano XT, diskové brzdy Bosch ABS Pro
- Sada kol DT Swiss HXC1501
- Pláště Maxxis Foldable
- Teleskopická sedlovka a komponenty Syncros
Technologie

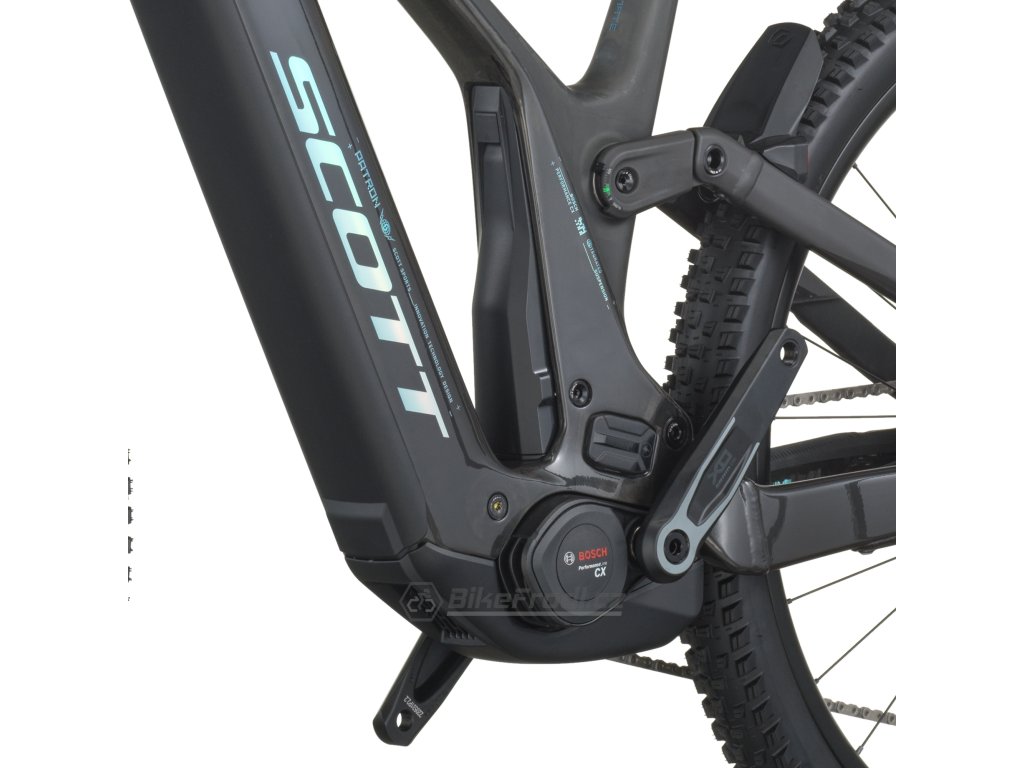

Motor & Battery
For the mountain biker looking to unlock new zones and ride more terrain than ever, the Patron eRIDE holsters the cutting edge of full-power motor and battery technology in a package built for singletrack domination. With the latest Bosch Performance CX drive unit paired with the 800Wh Powertube battery, the Patron is your ticket to freedom in the mountains.
Handlebar Display
Connectivity, flexibility and visibility are the key words for the Kiox 300 and the LED Mini Remote. The Kiox is a 2’’ colored screen integrated in the stem. It displays all necessary info including speed, GPS, cadence and a Bluetooth connection to the eBike Flow App. You don’t want to have a screen on your handlebar? You can take it off and control everything from the LED remote or your phone. The new LED remote, displays the current charge status and allows an easy switch from one mode to the other. The ambient light sensor automatically controls the brightness of the LEDs. In order to minimize distractions when you’re getting rowdy, all ST models opt for just the Mini Remote and Sytem controller, without the addition of the display. All key metrics can still be tracked and displayed via a cycling computer of your choice.

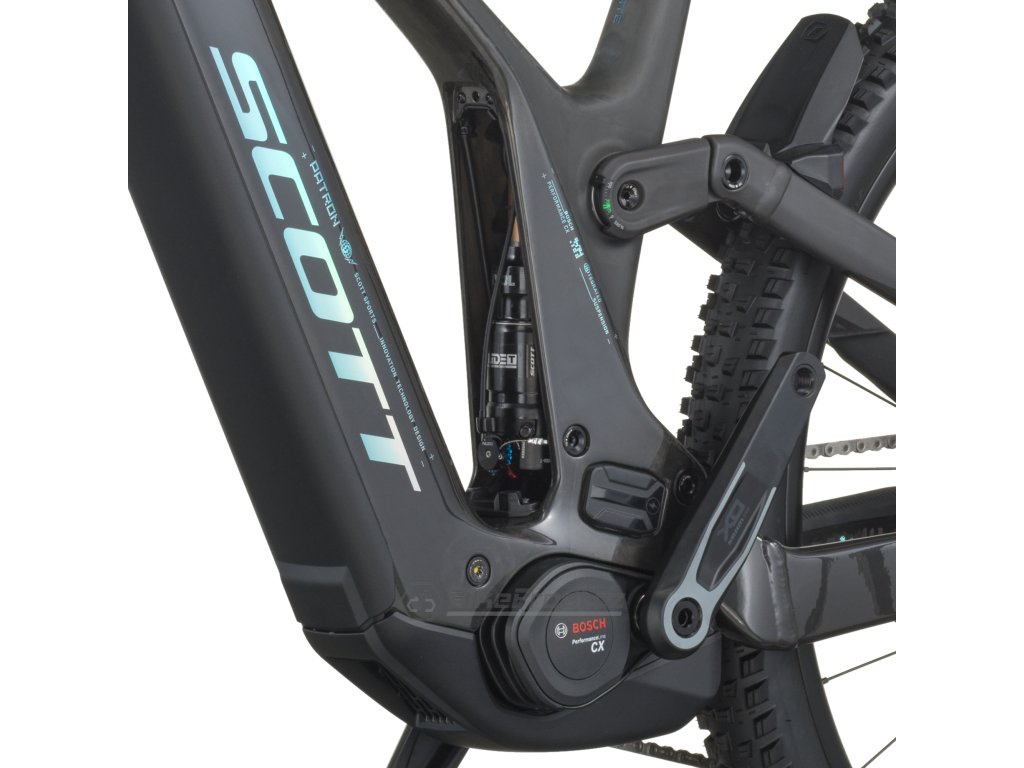

Patented Integrated Shock Technology
A stellar day on the trails begins with stellar suspension design, and the Patron’s 150mm of integrated travel will keep you tracking the ground smoothly no matter the terrain. Integrating the shock has allowed us to achieve desired shock characteristics, while also granting us the space to ideally position elements such as the motor, the battery and a water bottle. Riding a range of varied terrain? The TracLoc remote on the handlebar alters suspension characteristics with just a oush of the thumb, allowing you to match your suspension to the trail ahead.
Frame Construction
The Patron eRIDE lineup features carbon and alloy models, both meticulously engineered to harness the unique charactersitics of each material. Subjected to the highest degree of testing and numerous iterations in the development phase, the Patron eRIDE exhibits the perfect blend of stiffness and strength and weight distribution to lead to an unmatched ride feel - especially when things get rough.
Accessories & Compatibilities
Featuring tailor made details such as integrated fender and LED rear lights, the Patron eRIDE has been developed to be a “just get on and ride” kind of bike. To take this a step further, the Patron is pre-wired and ready for you to link up a front light to the main battery if you desire. A range of Syncros accessories are also available for the Patron eRIDE such as a kickstand, a rear rack or an action camera mount.
Cable Integration
Fact: With E-bikes come cables. Thankfully, on the Patron eRIDE, these are all cleanly integrated into the frame to hide them from sight, protect them from the elements and ensure no unnecessary bends impede on their function.
Technická specifikace
| Rám | Carbon Main Frame, Alloy SST-CST Integrated Suspension Technology Virtual 4 Link kinematic, Adjustable head angle Syncros Cable Integration System Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready, Kickstand mount |
| Zdvih | Front: 150mm, Rear: 150mm |

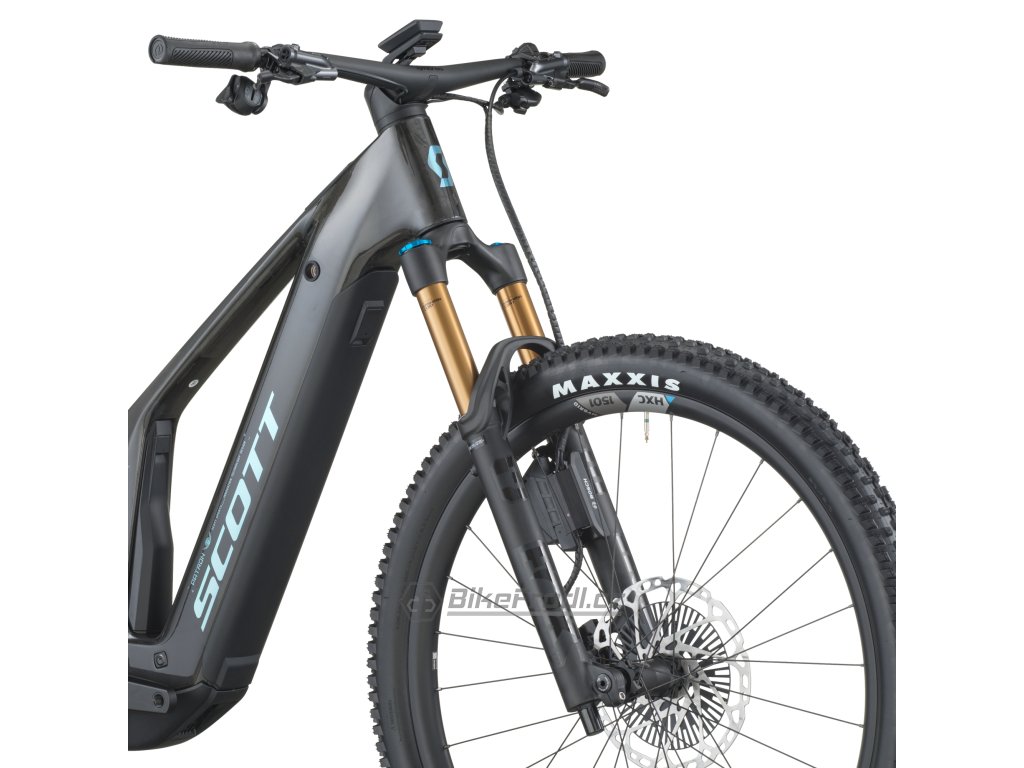

| Vidlice | FOX 36 Factory Air, eMTB+, Grip X2, HSC - LSC - HSR - LSR adjustable, QR Axle 15x110mm axle 44mm offset, tapered steerer, 150mm travel |
| Tlumič | FOX NUDE 6T Factory EVOL Trunnion SCOTT custom w. travel, geo adj. 3 modes: Lockout-Traction Control-Descend Low Speed Adj., Custom large Air volume, Reb. Adj. Bearing Hardware, Travel 150-100-Lockout, T185X55mm |
| Ovládací systém | Suspension & Dropper Remote SCOTT TracLoc 2 Technology 3 modes |
| Pohonná jednotka | EU: 25kmh, INT: 20mph Bosch Performance Line CX (BDU384Y) |
| Baterie | PowerTube 800Wh |
| Displej | Bosch System Controller, Mini Remote & Kiox 300 |
| Nabíječka | 4A Charger |

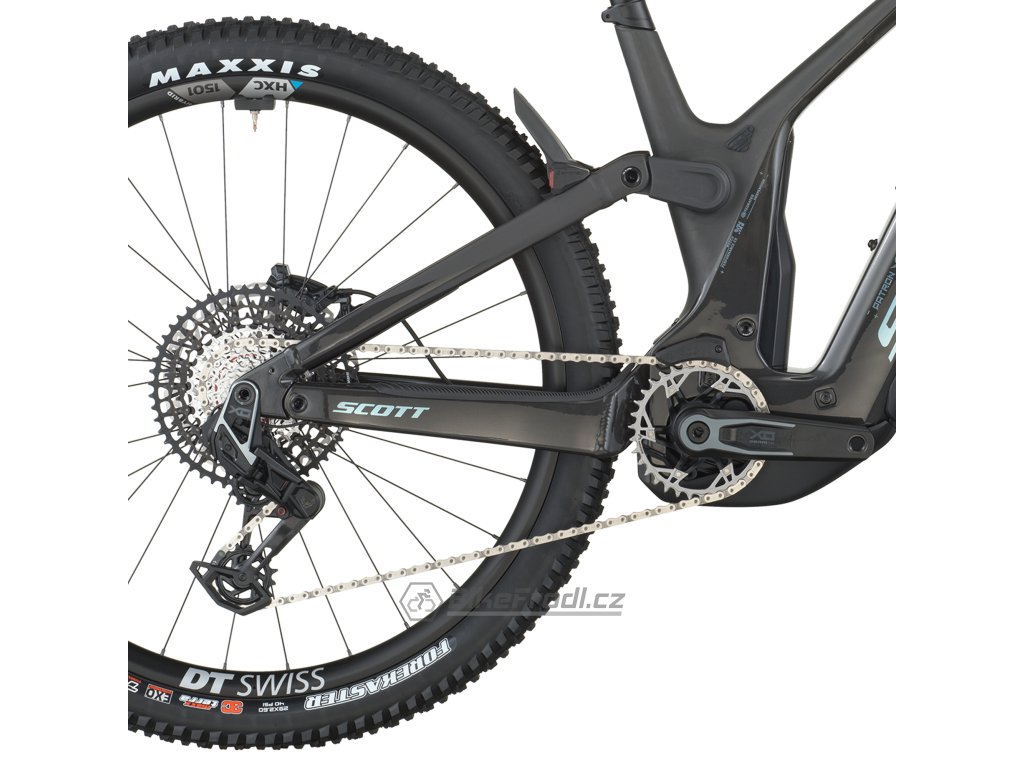

| Přehazovačka | SRAM X0 Eagle AXS Transmission 12 Speed Wireless Electronic Shift System |
| Řazení | SRAM AXS Rocker Pod Controller |
| Kliky | SRAM X0 Eagle, Alloy |
| Vodítko řetězu | e*thirteen, e*spec Slider |
| Převodník | SRAM Eagle Transmission 34T chainring |
| Řetěz | SRAM CN GX Eagle Transmission |
| Kazeta | SRAM GX Eagle XS 1275 Transmission 10-52 |
| Brzdy | Shimano XT BR-M8220 4 Piston, Bosch ABS Pro |
| Rotor | Front: SM-RT66 220mm, Rear: SM-RT66 203mm |
| Řidítka | Syncros Hixon iC Carbon, Size S & M 15mm rise, Size L & XL 25mm rise back sweep 8°, 780mm Syncros Performance XC lock-on grips |
| Sedlovka | Syncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm S size 140mm, M size 180mm, L size 180mm, XL size 210mm |
| Sedlovka | Syncros Tofino-E 1.5 Regular Titanium rails |
| Hlavové složení | Stainless, +-0.6° head angle adjustment Syncros - Acros Angle adjust & Cable Routing HS System ZS56/28.6 – ZS56/40 MTB |
| Sada kol | DT Swiss HXC1501, Hybrid, Carbon rims |
| Přední plášť | Maxxis Forekaster 29x2.6" 120TPI Foldable Bead EXO, TR Tubeless ready 3C Maxx Terra |
| Zadní plášť | Maxxis Forekaster 29x2.6" 120TPI Foldable Bead EXO, TR Tubeless ready 3C Maxx Terra |
| Světla | Syncros integrated rear fender light Front Light Cable pre-installed |
| Hmotnost v kg (cca) | 23.7 |
| Hmotnost v lb (cca) | 52.25 |
| Max. systémová hmotnost | 130kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| S | M | L | XL | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° | ||||||||||||||
| B | head tube length / hauteur tube de direction | 120.0 mm | 4.7 in | 125.0 mm | 4.9 in | 135.0 mm | 5.3 in | 145.0 mm | 5.7 in | ||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 579.3 mm | 22.8 in | 605.5 mm | 23.8 in | 626.6 mm | 24.7 in | 657.0 mm | 25.9 in | ||||||||||
| D | standover height / hauteur entre-jambes | 719.0 mm | 28.3 in | 719.0 mm | 28.3 in | 729.0 mm | 28.7 in | 732.0 mm | 28.8 in | ||||||||||
| E | BB offset / deport axe de pédalier | -36.2 mm | -1.4 in | -36.1 mm | -1.4 in | -35.9 mm | -1.4 in | -35.8 mm | -1.4 in | ||||||||||
| F | BB height / hauteur axe de pédalier | 340.8 mm | 13.4 in | 340.9 mm | 13.4 in | 341.1 mm | 13.4 in | 341.2 mm | 13.4 in | ||||||||||
| G | wheel base / entraxe roues | 1,212.8 mm | 47.7 in | 1,234.9 mm | 48.6 in | 1,264.7 mm | 49.8 in | 1,298.4 mm | 51.1 in | ||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 405.0 mm | 15.9 in | 435.0 mm | 17.1 in | 470.0 mm | 18.5 in | 500.0 mm | 19.7 in | ||||||||||
| J | seat angle / angle tube de selle | 77.4 ° | 77.2 ° | 77.2 ° | 77.2 ° | ||||||||||||||
| K | chainstay / longueur des bases | 453.5 mm | 17.9 in | 453.5 mm | 17.9 in | 453.5 mm | 17.9 in | 453.5 mm | 17.9 in | ||||||||||
| L | reach / reach | 439.4 mm | 17.3 in | 459.3 mm | 18.1 in | 484.7 mm | 19.1 in | 514.2 mm | 20.2 in | ||||||||||
| M | stack / stack | 643.0 mm | 25.3 in | 647.4 mm | 25.5 in | 656.3 mm | 25.8 in | 665.1 mm | 26.2 in | ||||||||||
| N | stem length / longueur potence | 50.0 mm | 2.0 in | 50.0 mm | 2.0 in | 50.0 mm | 2.0 in | 50.0 mm | 2.0 in | ||||||||||
| 0 | trail / chasse au sol | 120.5 mm | 4.7 in | 120.6 mm | 4.7 in | 120.8 mm | 4.8 in | 120.9 mm | 4.8 in | ||||||||||
| P | fork length / longueur fourche | 561.0 mm | 22.1 in | 561.0 mm | 22.1 in | 561.0 mm | 22.1 in | 561.0 mm | 22.1 in | ||||||||||
| Q | Maximum Seatpost Insertion / Insertion maximale de la tige de selle | 200.0 mm | 7.9 in | 230.0 mm | 9.1 in | 265.0 mm | 10.4 in | 295.0 mm | 11.6 in | ||||||||||
| R | Crank Length / longueur de manivelle | 165.0 mm | 6.5 in | 165.0 mm | 6.5 in | 165.0 mm | 6.5 in | 165.0 mm | 6.5 in |
