Nový Patron nabízí dvě odlišná nastavení na různé jízdní styly, obě k dispozici na stejném hlavním rámu: všestranná řada 900 je konstruovaná, aby bavila bez ohledu na terén. Řada ST je navržena na agresivní technické tratě a zvládání větších nárazů. Patron je dostupný jako karbonový či hliníkový, vyznačuje se elegantně začleněnou 800Wh baterií, lépe umístěným tlumičem, krytem se specifickou technologií, velkorysým prostorem pro pláště a u všech modelů dobře vyváženou nastavitelnou geometrií. Získáte tak skutečně jedinečné, krásné a rychlé kolo.

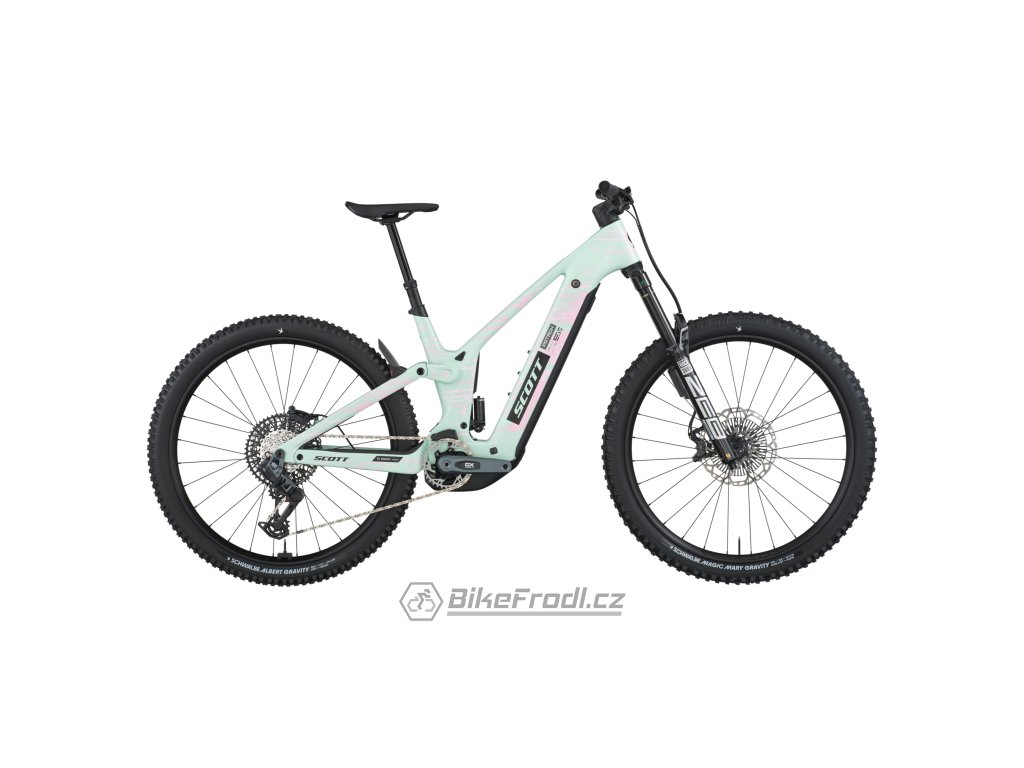

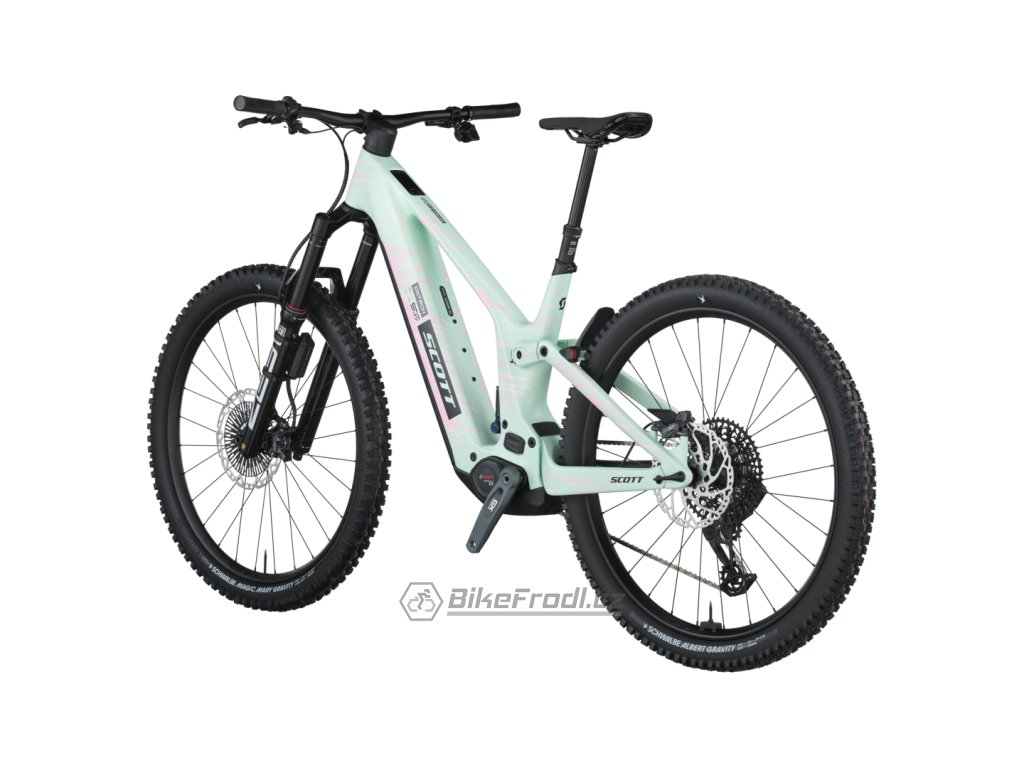

Horské elektrokolo SCOTT Patron ST 900
Patron ST 900. Když chcete zažít opravdu velké věci.
Klíčové vlastnosti
- Patron Carbon Frame
- Bosch CX, 800Wh PowerTube, SmartSystem Engine System
- RS ZEB Ultimate 170mm Fork
- Tlumič RS SuperDeluxe, zdvih 150 mm
- SRAM GX AXS Transmission 12 Speed Drivetrain
- Shimano XT 4 Piston Disc Brakes
- Syncros Revelstoke-HD 1.5 Wheelset
- Pláště Schwalbe Foldable
- Teleskopická sedlovka a komponenty Syncros
Technologie
Motor & Battery
For the mountain biker looking to unlock new zones and ride more terrain than ever, the Patron eRIDE holsters the cutting edge of full-power motor and battery technology in a package built for singletrack domination. With the latest Bosch Performance CX drive unit paired with the 800Wh Powertube battery, the Patron is your ticket to freedom in the mountains.
Patented Integrated Shock Technology
A stellar day on the trails begins with stellar suspension design, and the Patron’s 150mm of integrated travel will keep you tracking the ground smoothly no matter the terrain. Integrating the shock has allowed us to achieve desired shock characteristics, while also granting us the space to ideally position elements such as the motor, the battery and a water bottle. Riding a range of varied terrain? The TracLoc remote on the handlebar alters suspension characteristics with just a oush of the thumb, allowing you to match your suspension to the trail ahead.
Frame Construction
The Patron eRIDE lineup features carbon and alloy models, both meticulously engineered to harness the unique charactersitics of each material. Subjected to the highest degree of testing and numerous iterations in the development phase, the Patron eRIDE exhibits the perfect blend of stiffness and strength and weight distribution to lead to an unmatched ride feel - especially when things get rough.
Accessories & Compatibilities
Featuring tailor made details such as integrated fender and LED rear lights, the Patron eRIDE has been developed to be a “just get on and ride” kind of bike. To take this a step further, the Patron is pre-wired and ready for you to link up a front light to the main battery if you desire. A range of Syncros accessories are also available for the Patron eRIDE such as a kickstand, a rear rack or an action camera mount.
Cable Integration
Fact: With E-bikes come cables. Thankfully, on the Patron eRIDE, these are all cleanly integrated into the frame to hide them from sight, protect them from the elements and ensure no unnecessary bends impede on their function.
Technická specifikace
| Rám | Carbon Frame, Integrated Suspension Technology Virtual 4 Link kinematic, Adjustable head angle Syncros Cable Integration System Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready |
| Zdvih | Front: 170mm, Rear: 150mm |

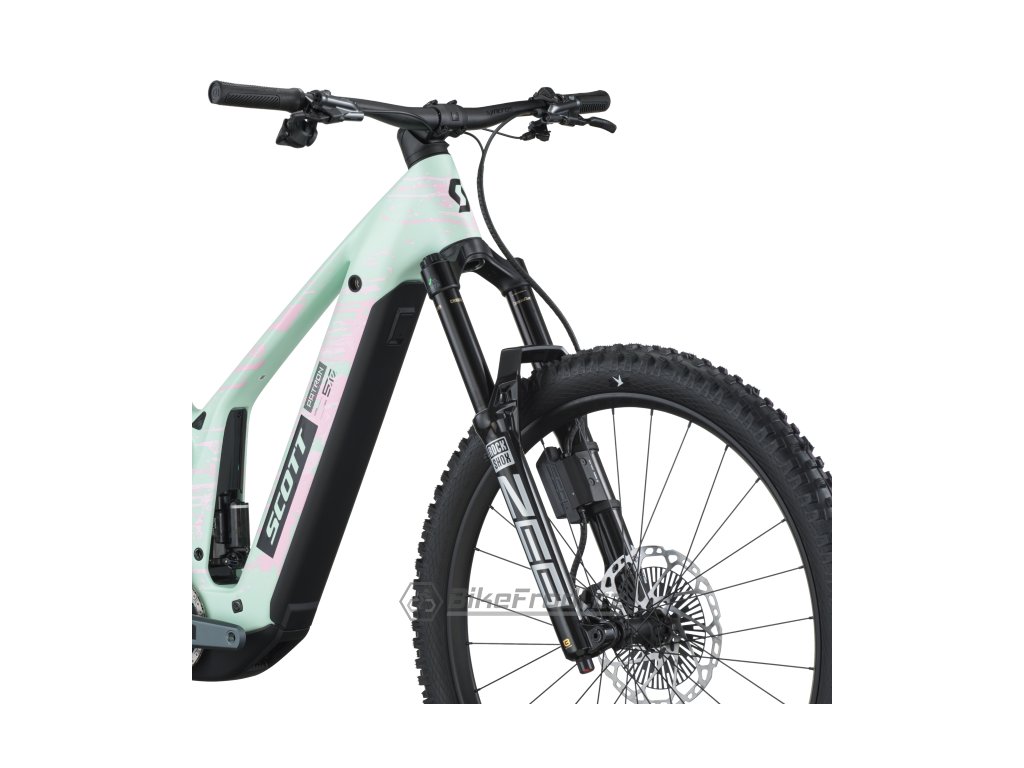

| Vidlice | RockShox ZEB Ultimate Air, E-Bike, Charger 3.1, HSC - LSC, Reb Adj., ButterCups, 15x110mm axle 44mm offset, tapered steerer, 170mm travel |
| Tlumič | RockShox SuperDeluxe Ultimate, DebonAir Linear, Trunnion, RC2T, Reb Adj., T185X55mm |
| Pohonná jednotka | EU: 25kmh, INT: 20mph Bosch Performance Line CX (BDU384Y) |
| Baterie | PowerTube 800Wh |
| Displej | Bosch Kiox 400C, Mini Remote |
| Nabíječka | 4A Charger |
| Přehazovačka | SRAM GX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System |
| Řazení | SRAM AXS Rocker Pod Controller |
| Kliky | SRAM GX Eagle, Alloy |
| Vodítko řetězu | e*thirteen, e*spec Slider |
| Převodník | SRAM Eagle Transmission 34T chainring |
| Řetěz | SRAM CN GX Eagle Transmission |
| Kazeta | SRAM GX Eagle XS 1275 Transmission 10-52 |
| Brzdy | Shimano XT BR-M8220 4 Piston, Bosch ABS Pro |
| Rotor | Front: SM-RT66 220mm, Rear: SM-RT66 203mm |
| Řidítka | back sweep 8°, 780mm Syncros Hixon iC Carbon, Size S & M 15mm rise, Size L & XL 25mm rise Syncros Endurance lock-on grips |
| Sedlovka | S size 140mm, M size 180mm, L size 180mm, XL size 210mm Syncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm |
| Sedlovka | Syncros Tofino-E 1.5 Regular Titanium rails |
| Hlavové složení | Stainless, +-0.6° head angle adjustment Syncros - Acros Angle adjust & Cable Routing HS System ZS56/28.6 – ZS56/40 MTB |
| Sada kol | Syncros Revelstoke-HD 1.5 IS F: 15x110mm, R: 12x148mm Boost 30mm Tubeless ready rim 28H Syncros Axle w/Removable Lever with Tool |
| Přední plášť | Schwalbe Magic Mary 29x2.5", Gravity, Radial, Ultra Soft, Tubeless ready 120TPI Foldable Bead |
| Zadní plášť | Schwalbe Albert 29x2.5", Gravity, Radial, Soft, Tubeless ready 120TPI Foldable Bead |
| Světla | Front Light Cable pre-installed Syncros integrated rear fender light |
| Hmotnost v kg (cca) | 24.3 |
| Hmotnost v lb (cca) | 53.57 |
| Max. systémová hmotnost | 130kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| S | M | L | XL | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° | ||||||||||||||
| B | head tube length / hauteur tube de direction | 120.0 mm | 4.7 in | 125.0 mm | 4.9 in | 135.0 mm | 5.3 in | 145.0 mm | 5.7 in | ||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 582.4 mm | 22.9 in | 607.9 mm | 23.9 in | 629.7 mm | 24.8 in | 660.2 mm | 26.0 in | ||||||||||
| D | standover height / hauteur entre-jambes | 719.0 mm | 28.3 in | 719.0 mm | 28.3 in | 729.0 mm | 28.7 in | 732.0 mm | 28.8 in | ||||||||||
| E | BB offset / deport axe de pédalier | -28.4 mm | -1.1 in | -28.4 mm | -1.1 in | -28.4 mm | -1.1 in | -28.5 mm | -1.1 in | ||||||||||
| F | BB height / hauteur axe de pédalier | 348.6 mm | 13.7 in | 348.6 mm | 13.7 in | 348.6 mm | 13.7 in | 348.5 mm | 13.7 in | ||||||||||
| G | wheel base / entraxe roues | 1,222.3 mm | 48.1 in | 1,244.5 mm | 49.0 in | 1,274.2 mm | 50.2 in | 1,308.0 mm | 51.5 in | ||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 405.0 mm | 15.9 in | 435.0 mm | 17.1 in | 470.0 mm | 18.5 in | 500.0 mm | 19.7 in | ||||||||||
| J | seat angle / angle tube de selle | 76.4 ° | 76.3 ° | 76.3 ° | 76.3 ° | ||||||||||||||
| K | chainstay / longueur des bases | 454.0 mm | 17.9 in | 454.0 mm | 17.9 in | 454.0 mm | 17.9 in | 454.0 mm | 17.9 in | ||||||||||
| L | reach / reach | 428.3 mm | 16.9 in | 448.3 mm | 17.6 in | 473.9 mm | 18.7 in | 503.4 mm | 19.8 in | ||||||||||
| M | stack / stack | 650.5 mm | 25.6 in | 655.0 mm | 25.8 in | 664.2 mm | 26.1 in | 673.3 mm | 26.5 in | ||||||||||
| N | stem length / longueur potence | 50.0 mm | 2.0 in | 50.0 mm | 2.0 in | 50.0 mm | 2.0 in | 50.0 mm | 2.0 in | ||||||||||
| 0 | trail / chasse au sol | 127.9 mm | 5.0 in | 127.9 mm | 5.0 in | 127.9 mm | 5.0 in | 127.9 mm | 5.0 in | ||||||||||
| P | fork length / longueur fourche | 584.0 mm | 23.0 in | 584.0 mm | 23.0 in | 584.0 mm | 23.0 in | 584.0 mm | 23.0 in | ||||||||||
| Q | Maximum Seatpost Insertion / Insertion maximale de la tige de selle | 200.0 mm | 7.9 in | 230.0 mm | 9.1 in | 265.0 mm | 10.4 in | 295.0 mm | 11.6 in | ||||||||||
| R | Crank Length / longueur de manivelle | 165.0 mm | 6.5 in | 165.0 mm | 6.5 in | 165.0 mm | 6.5 in | 165.0 mm | 6.5 in |
