Nový Patron nabízí dvě odlišná nastavení na různé jízdní styly, obě k dispozici na stejném hlavním rámu: všestranná řada 900 je konstruovaná, aby bavila bez ohledu na terén. Řada ST je navržena na agresivní technické tratě a zvládání větších nárazů. Patron je dostupný jako karbonový či hliníkový, vyznačuje se elegantně začleněnou 800Wh baterií, lépe umístěným tlumičem, krytem se specifickou technologií, velkorysým prostorem pro pláště a u všech modelů dobře vyváženou nastavitelnou geometrií. Získáte tak skutečně jedinečné, krásné a rychlé kolo.

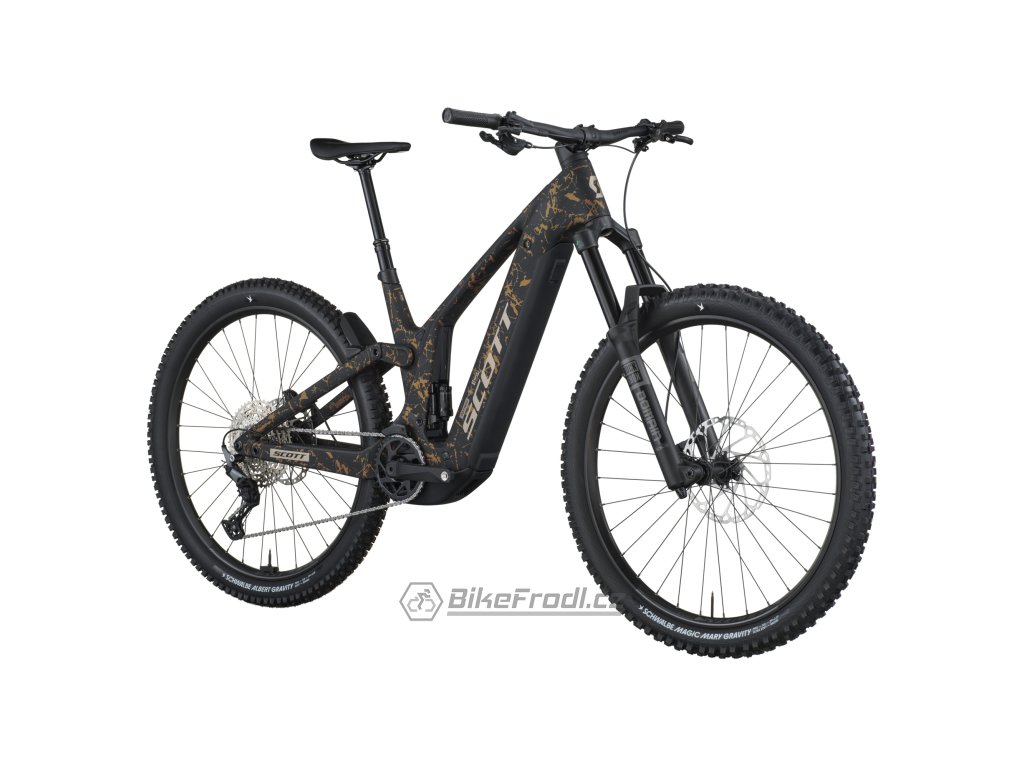

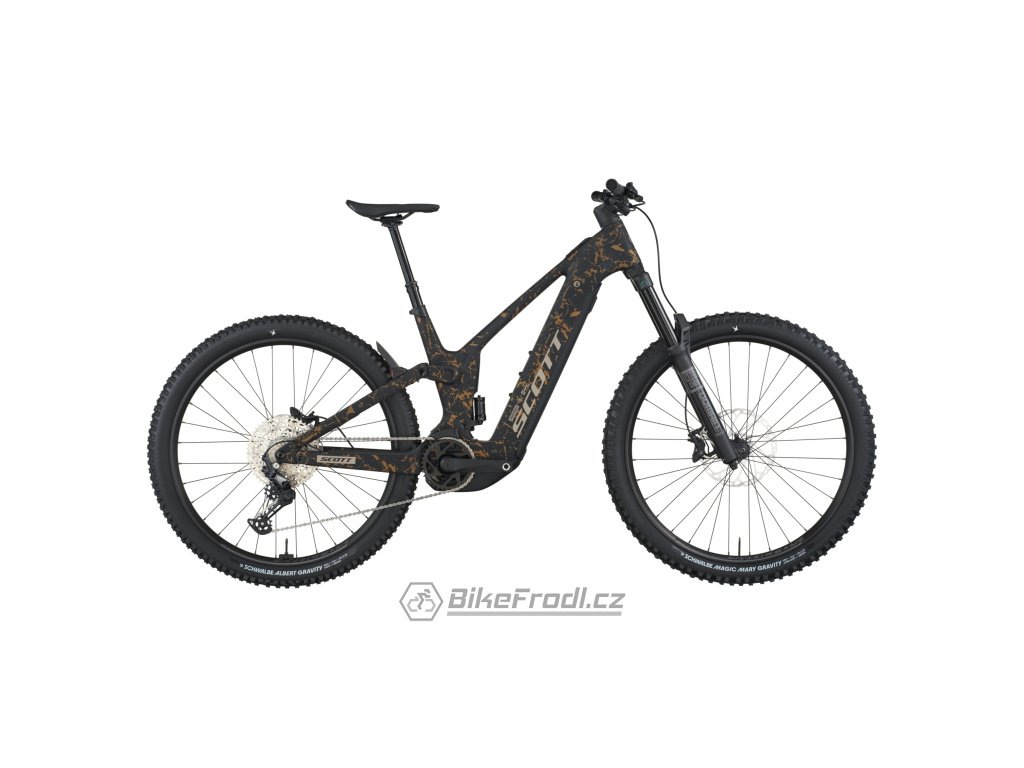

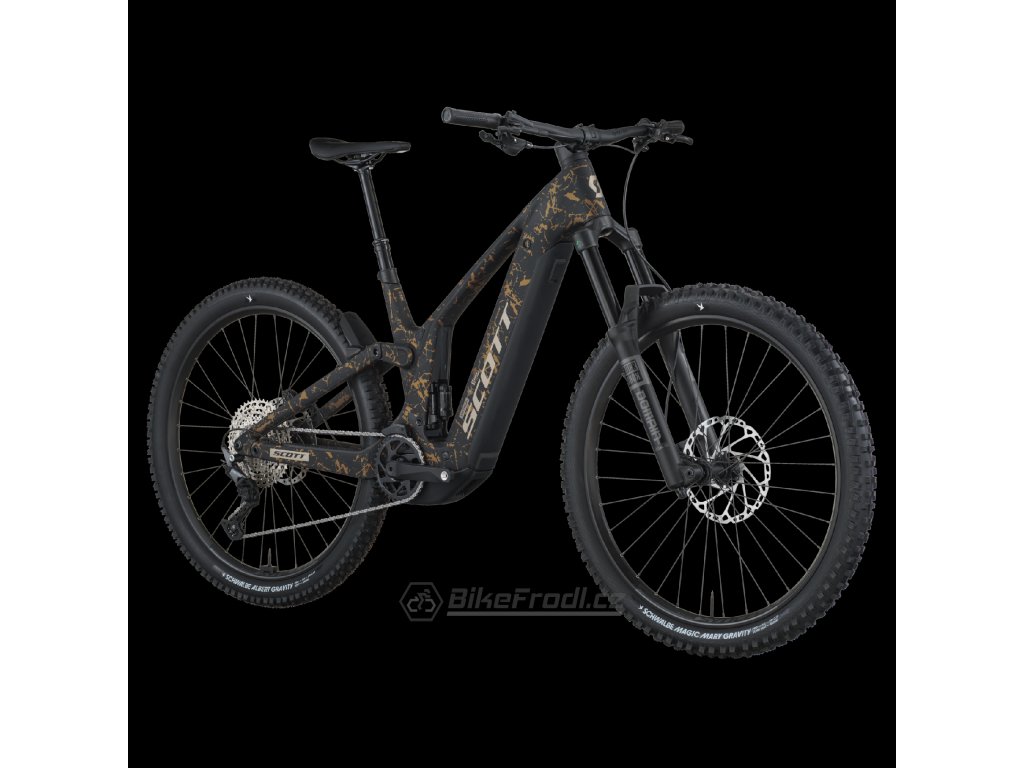

Horské elektrokolo SCOTT Patron ST 910
Patron ST 910. Když chcete zažít opravdu velké věci.
Klíčové vlastnosti
- Carbon Main Frame, Alloy Rear Triangle
- Bosch CX, 800Wh PowerTube, SmartSystem Engine System
- RS Domain R 170mm Fork
- RS SuperDeluxe, 150mm Shock
- Shimano Deore 12 Speed Drivetrain
- Shimano Deore 4 Piston Disc Brakes
- Pláště Schwalbe Foldable
- Teleskopická sedlovka a komponenty Syncros
Technologie
Motor & Battery
For the mountain biker looking to unlock new zones and ride more terrain than ever, the Patron eRIDE holsters the cutting edge of full-power motor and battery technology in a package built for singletrack domination. With the latest Bosch Performance CX drive unit paired with the 800Wh Powertube battery, the Patron is your ticket to freedom in the mountains.

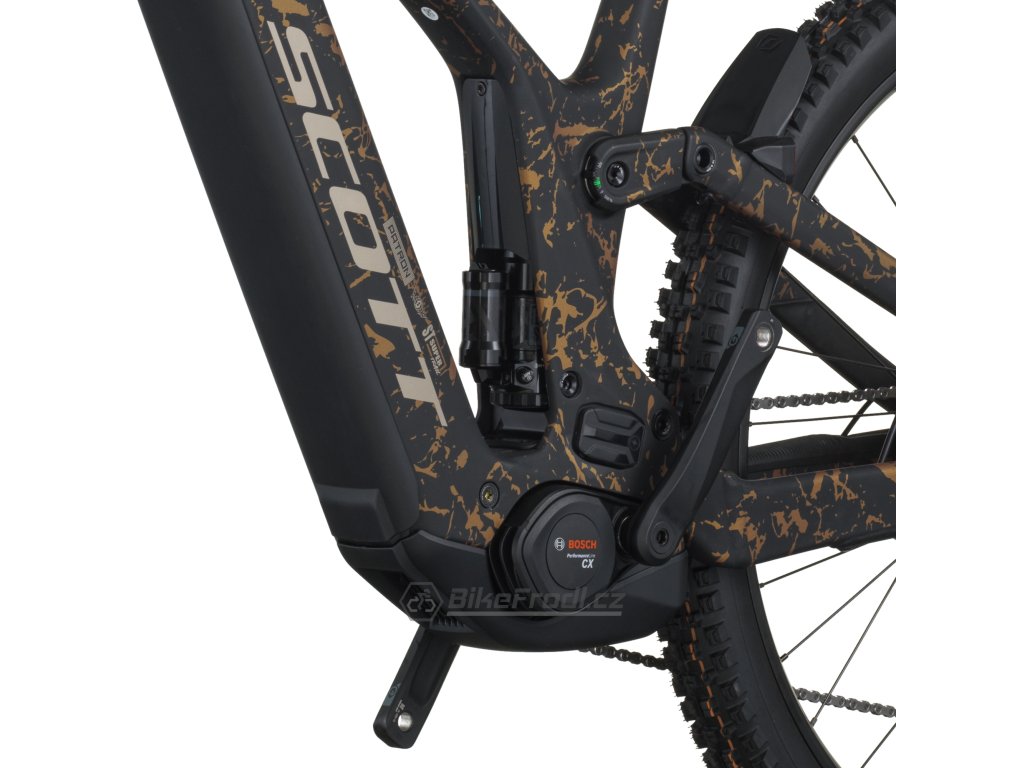

Patented Integrated Shock Technology
A stellar day on the trails begins with stellar suspension design, and the Patron’s 150mm of integrated travel will keep you tracking the ground smoothly no matter the terrain. Integrating the shock has allowed us to achieve desired shock characteristics, while also granting us the space to ideally position elements such as the motor, the battery and a water bottle. Riding a range of varied terrain? The TracLoc remote on the handlebar alters suspension characteristics with just a oush of the thumb, allowing you to match your suspension to the trail ahead.
Frame Construction
The Patron eRIDE lineup features carbon and alloy models, both meticulously engineered to harness the unique charactersitics of each material. Subjected to the highest degree of testing and numerous iterations in the development phase, the Patron eRIDE exhibits the perfect blend of stiffness and strength and weight distribution to lead to an unmatched ride feel - especially when things get rough.
Accessories & Compatibilities
Featuring tailor made details such as integrated fender and LED rear lights, the Patron eRIDE has been developed to be a “just get on and ride” kind of bike. To take this a step further, the Patron is pre-wired and ready for you to link up a front light to the main battery if you desire. A range of Syncros accessories are also available for the Patron eRIDE such as a kickstand, a rear rack or an action camera mount.
Cable Integration
Fact: With E-bikes come cables. Thankfully, on the Patron eRIDE, these are all cleanly integrated into the frame to hide them from sight, protect them from the elements and ensure no unnecessary bends impede on their function.
Technická specifikace
| Rám | Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline Virtual 4 Link kinematic, Adjustable head angle Integrated Suspension Technology Syncros Cable Integration System Bosch PowerMore Ready Kickstand mount Carbon Main Frame, Alloy SST-CST |
| Zdvih | Front: 170mm, Rear: 150mm |
| Vidlice | RockShox Domain R Air, E-Bike, Reb Adj., 15x110mm axle 44mm offset, tapered steerer, 170mm travel |
| Tlumič | RockShox SuperDeluxe, DebonAir Linear, Trunnion, Reb Adj., T185X55mm |
| Pohonná jednotka | EU: 25kmh, INT: 20mph Bosch Performance Line CX (BDU384Y) |
| Baterie | PowerTube 800Wh |
| Displej | Bosch System Controller, Mini Remote |
| Nabíječka | 4A Charger |
| Přehazovačka | Shimano Deore RD-M6100 SGS Shadow Plus, 12 Speed |
| Řazení | Shimano Deore SL-M6100-IR, Rapidfire Plus |
| Kliky | FSA Alloy |
| Vodítko řetězu | e*thirteen, e*spec Slider |
| Převodník | FSA 12 Speed 34T chainring |
| Řetěz | Shimano CN-M6100 |
| Kazeta | Shimano CS-M6100, 10-51 |
| Brzdy | Shimano Deore M6120 4-Piston Disc |
| Rotor | Front: SM-RT64 CL 220mm, Rear: SM-RT64 CL 203mm |
| Řidítka | Syncros Hixon 2.0 Alloy 6061 Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mm Syncros Endurance lock-on grips |
| Představec | Syncros AM 2.0 Syncros Cable Integration System 4° rise, 6061 Alloy, 31.8mm, 1 1/8" |
| Sedlovka | Syncros Duncan Dropper Post 2.5, 31.6mm S size 125mm, M size 150mm, L size 170mm, XL size 200mm |
| Sedlovka | Syncros Tofino-E 2.5 Regular |
| Hlavové složení | Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Přední náboj | Formula CL-811, 15x110mm |
| Zadní náboj | Formula ECT-148M, Boost 148x12mm |
| Výplet | Stainless Black |
| Ráfky | Syncros MD30, 32H, 30mm, Pin Joint Tubeless ready |
| Přední plášť | Schwalbe Magic Mary 29x2.5", Gravity, Radial, Ultra Soft, Tubeless ready 120TPI Foldable Bead |
| Zadní plášť | Schwalbe Albert 29x2.5", Gravity, Radial, Soft, Tubeless ready 120TPI Foldable Bead |
| Světla | Syncros integrated rear fender light Front Light Cable pre-installed |
| Extra | Kickstand mount |
| Hmotnost v kg (cca) | 25.3 |
| Hmotnost v lb (cca) | 55.78 |
| Max. systémová hmotnost | 130kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| S | M | L | XL | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° | ||||||||||||||
| B | head tube length / hauteur tube de direction | 120.0 mm | 4.7 in | 125.0 mm | 4.9 in | 135.0 mm | 5.3 in | 145.0 mm | 5.7 in | ||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 582.4 mm | 22.9 in | 607.9 mm | 23.9 in | 629.7 mm | 24.8 in | 660.2 mm | 26.0 in | ||||||||||
| D | standover height / hauteur entre-jambes | 719.0 mm | 28.3 in | 719.0 mm | 28.3 in | 729.0 mm | 28.7 in | 732.0 mm | 28.8 in | ||||||||||
| E | BB offset / deport axe de pédalier | -28.4 mm | -1.1 in | -28.4 mm | -1.1 in | -28.4 mm | -1.1 in | -28.5 mm | -1.1 in | ||||||||||
| F | BB height / hauteur axe de pédalier | 348.6 mm | 13.7 in | 348.6 mm | 13.7 in | 348.6 mm | 13.7 in | 348.5 mm | 13.7 in | ||||||||||
| G | wheel base / entraxe roues | 1,222.3 mm | 48.1 in | 1,244.5 mm | 49.0 in | 1,274.2 mm | 50.2 in | 1,308.0 mm | 51.5 in | ||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 405.0 mm | 15.9 in | 435.0 mm | 17.1 in | 470.0 mm | 18.5 in | 500.0 mm | 19.7 in | ||||||||||
| J | seat angle / angle tube de selle | 76.4 ° | 76.3 ° | 76.3 ° | 76.3 ° | ||||||||||||||
| K | chainstay / longueur des bases | 454.0 mm | 17.9 in | 454.0 mm | 17.9 in | 454.0 mm | 17.9 in | 454.0 mm | 17.9 in | ||||||||||
| L | reach / reach | 428.3 mm | 16.9 in | 448.3 mm | 17.6 in | 473.9 mm | 18.7 in | 503.4 mm | 19.8 in | ||||||||||
| M | stack / stack | 650.5 mm | 25.6 in | 655.0 mm | 25.8 in | 664.2 mm | 26.1 in | 673.3 mm | 26.5 in | ||||||||||
| N | stem length / longueur potence | 50.0 mm | 2.0 in | 50.0 mm | 2.0 in | 50.0 mm | 2.0 in | 50.0 mm | 2.0 in | ||||||||||
| 0 | trail / chasse au sol | 127.9 mm | 5.0 in | 127.9 mm | 5.0 in | 127.9 mm | 5.0 in | 127.9 mm | 5.0 in | ||||||||||
| P | fork length / longueur fourche | 584.0 mm | 23.0 in | 584.0 mm | 23.0 in | 584.0 mm | 23.0 in | 584.0 mm | 23.0 in | ||||||||||
| Q | Maximum Seatpost Insertion / Insertion maximale de la tige de selle | 200.0 mm | 7.9 in | 230.0 mm | 9.1 in | 265.0 mm | 10.4 in | 295.0 mm | 11.6 in | ||||||||||
| R | Crank Length / longueur de manivelle | 165.0 mm | 6.5 in | 165.0 mm | 6.5 in | 165.0 mm | 6.5 in | 165.0 mm | 6.5 in |
