Elektrické stylové městské kolo navržené pro snadnou a bezproblémovou jízdu ve městě. To je Passage eRIDE. Je vybaveno lehkým motorem Bosch SX a baterií o kapacitě 400 Wh, které vám při jízdě dodávají pocit beztíže a zároveň vám poskytují sílu jet dál. Vaše cesta městem se právě stala snazší.

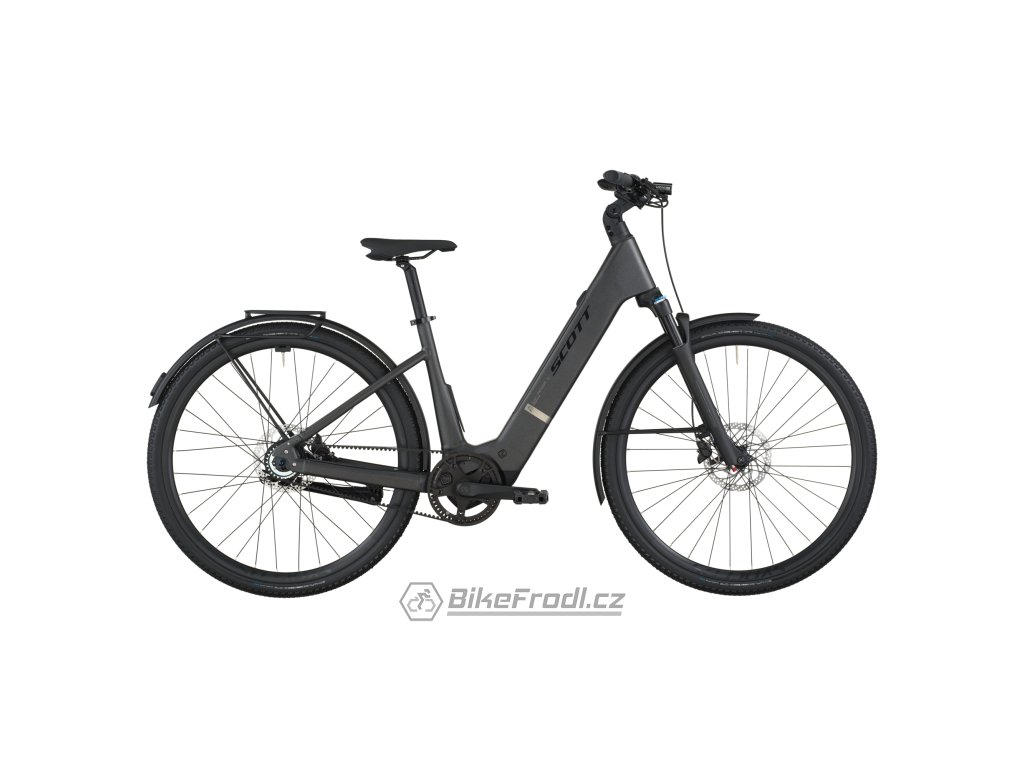

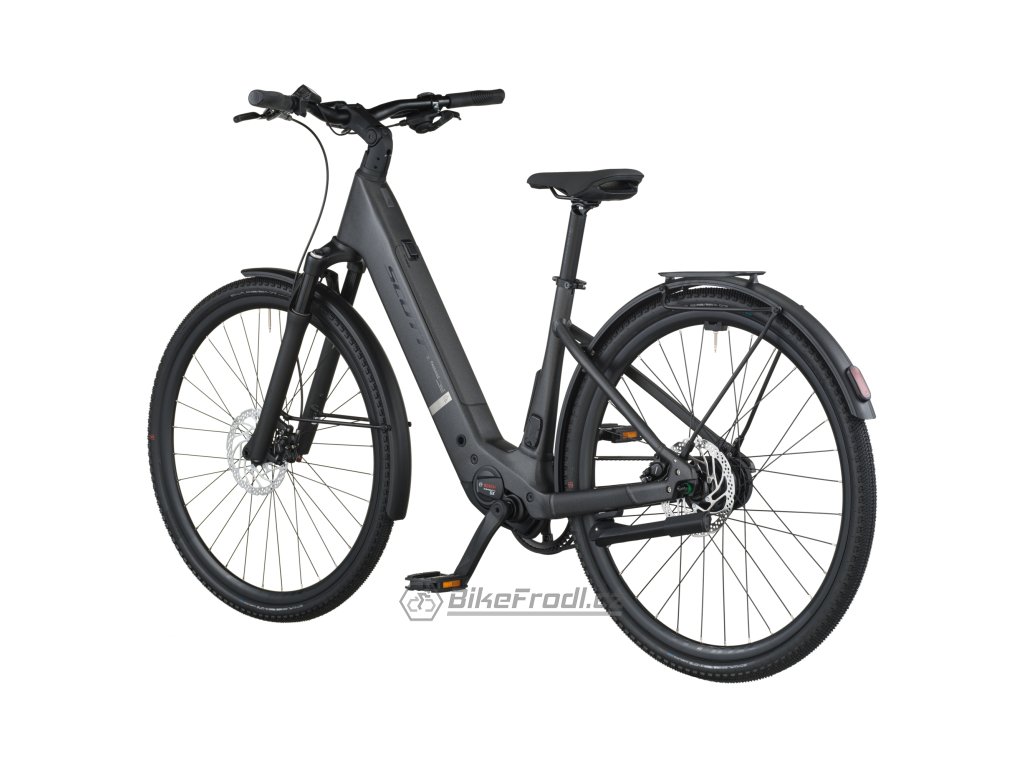

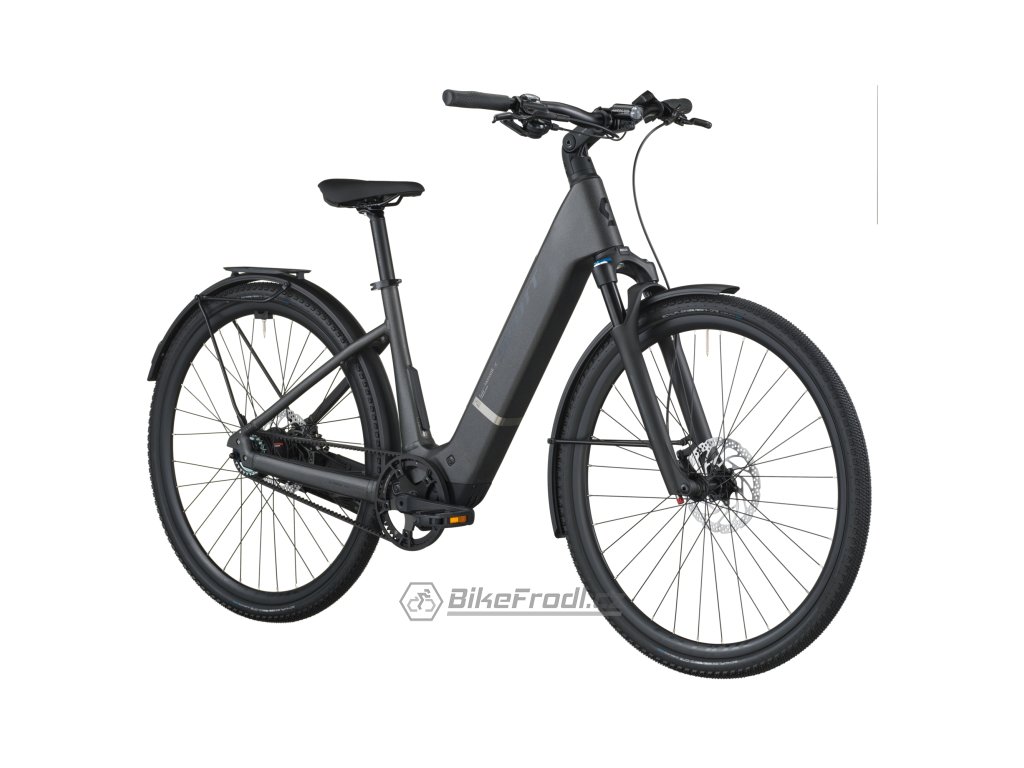

Městské elektrokolo SCOTT Passage 10 Wave
Passage 10 Wave je elektrokolo do města, na kterém se díky nízkému nástupu bude snadno a dobře jezdit všem členům rodiny.
Klíčové vlastnosti
- Hliníkový rám Passage eRIDE
- Bosch SX, CT400 SmartSystem Engine System
- Vidlice SR Suntour, zdvih 75 mm
- Řazení Shimano Nexus 8 rychlostí v náboji, řemenový pohon
- Diskové brzdy Shimano
- Přední světlo Lezyne / zadní integrované Syncros
- Nosič Racktime Micro, kompatibilní se systémem Snap it 2.0, nosnost 8 kg
Technologie

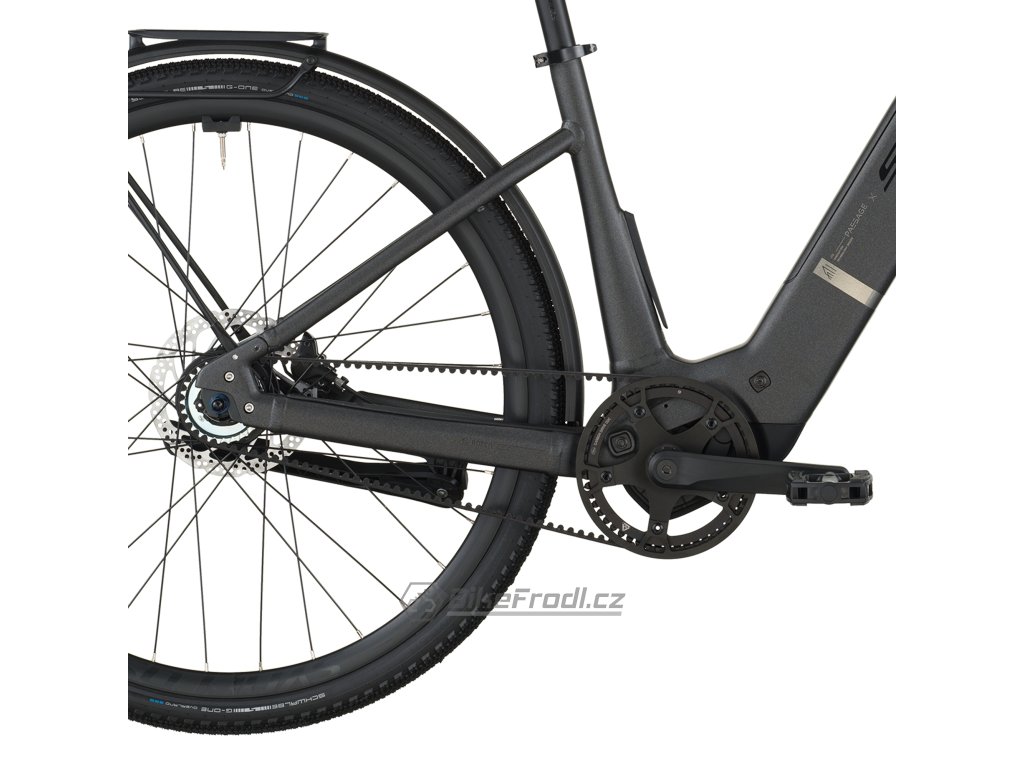

BELT AND INTERNAL GEAR HUB
Passage is an e-bike designed for the city to allow you to have as little maintenance as possible. Passage 10 features a belt-driven drivetrain and Shimano Nexus internal gear hub. This is the perfect combination for minimal maintenance, less noise and longer durability. A belt drive works without oil, meaning it needs to be replaced less often, no more getting dirty and no rust on the chain – a win-win-win situation! The Shimano Nexus hub shifts smoothly and, as it is protected in the hub housing the gear, it is easier to maintain.

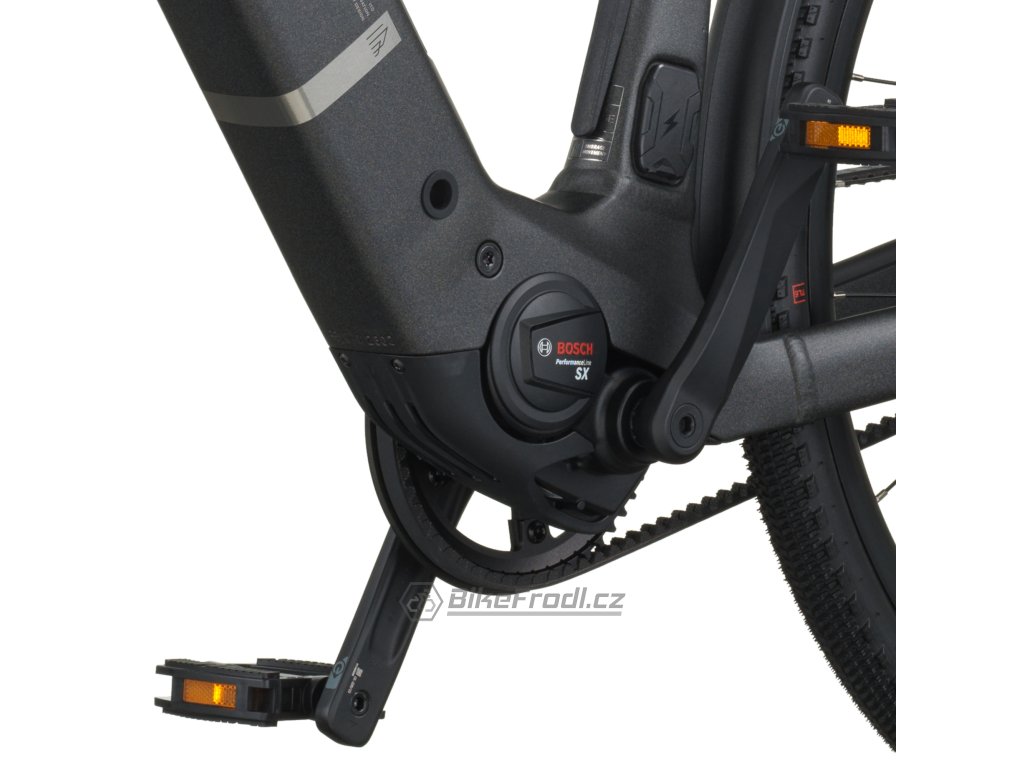

BOSCH SX - 400 WH BATTERY
Reliability is key when it comes to e-Bike systems and Bosch is among the leaders. The Performance Line SX drive unit with 55Nm – the lightest drive unit from Bosch - is extremely compact, sporty, and paired with the integrated 400 WH CompactTube battery make Passage a lightweight, yet powerful driven e-bike, easy to carry on the stairs. The e-bike is also compatible with the Bosch PowerMore 250 range extender.

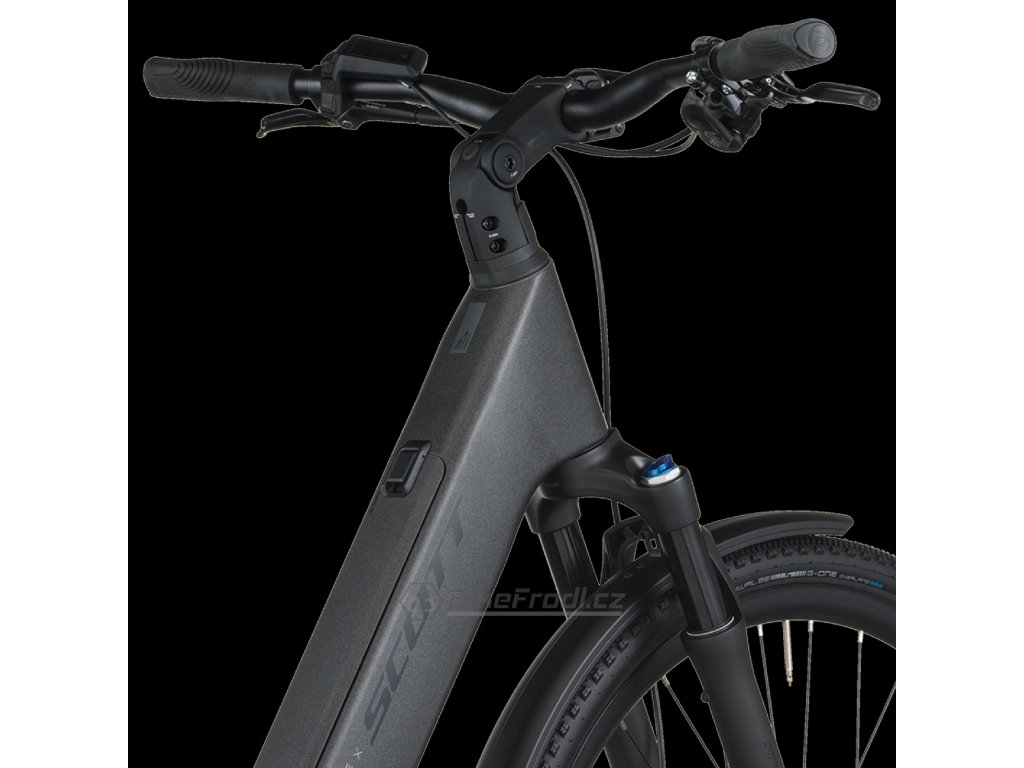

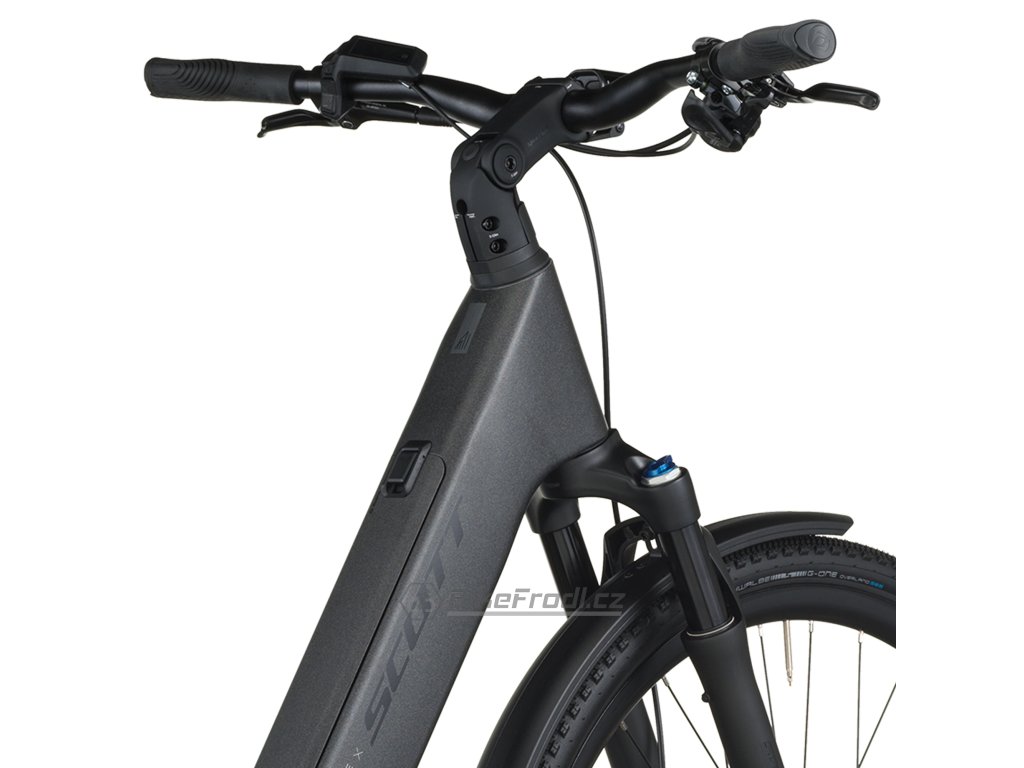

Adjustable Stem
The adjustable stem allows you to raise or lower the handlebar to improve comfort, match your body and ride style.
DESIGN REAR RACK
Lightweight is key on an e-bike, and the new minimalistic Racktime rear rack that can support 8kg + 8kg side bags integrated with fenders and Supernova rear light, not only achieve this goal, but it gives Passage a stylish look.
TWO FRAME SHAPES
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a step-through. Pick the one that best suits you.
Technická specifikace
| Rám | Alloy S-L=29", 6061 Alloy custom butted tubing Top extraction battery |
| Zdvih | 75mm |

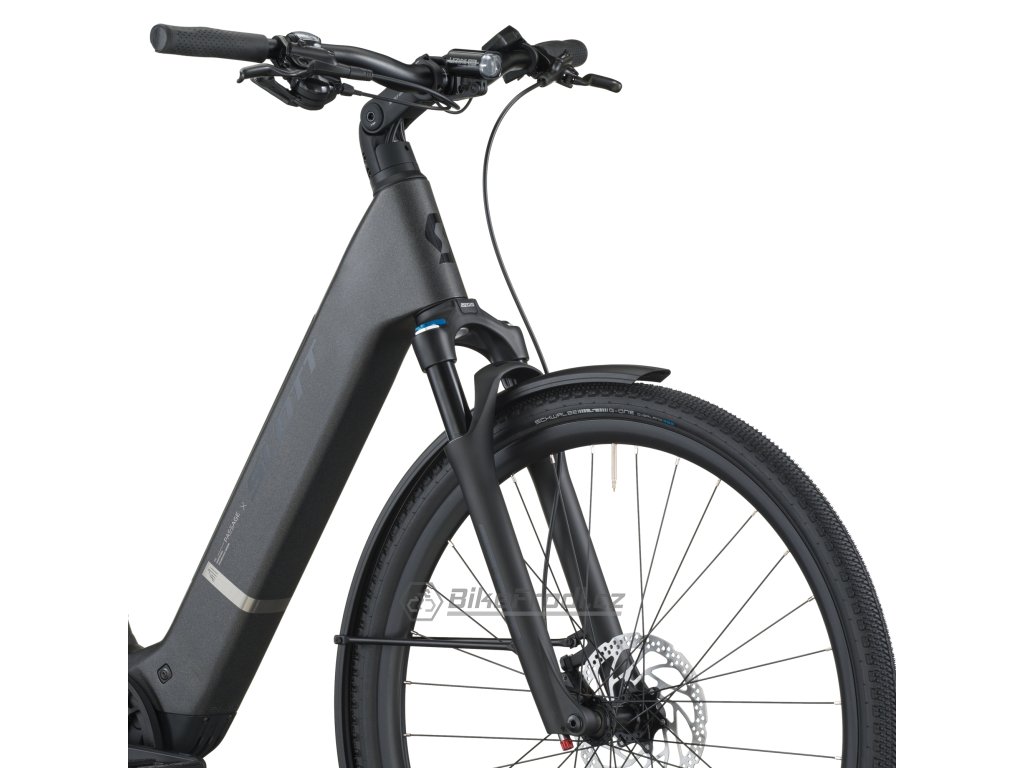

| Vidlice | SR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Alloy Steerer, 75mm Travel |
| Pohonná jednotka | Bosch Performance Line SX (BDU314Y) EU: 25kmh |
| Baterie | Compact Tube 400Wh |
| Displej | Bosch Purion 200 |
| Nabíječka | 2A Charger |
| Řazení | Shimano Alfine SL-S503 Rapid Fire Plus |
| Kliky | FSA CK-220 170mm |
| Převodník | Gates CDC 52T w/Guard |
| Řetěz | Gates CDC 125T |
| Kazeta | Gates CDC 26T |
| Brzdy | Shimano BR-MT200 Disc |
| Rotor | Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm |
| Řidítka | Syncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount |
| Sedlovka | Syncros M3.0, 31.6 |
| Sedlovka | Syncros Capilano |
| Hlavové složení | Acros, 1.5"- 1.5" semi integ. OD 50/61mm, ID 44/55mm |
| Přední náboj | Shimano HBTC50015B CL, 15x100mm |
| Zadní náboj | Shimano Nexus 8 Speed |
| Výplet | Black Spokes |
| Ráfky | Syncros X15 Disc |
| Přední plášť | Schwalbe G-One Overland 365 Performance, 700x45C |
| Zadní plášť | Schwalbe G-One Overland 365 Performance, 700x45C |
| Světla | Lezyne Fusion E550SM front light Rear Supernova TL3Z |
| Nosič & blatníky | Racktime Micro Rack SnapIt 2.0 8KG |
| Pedály | Marwi SP-827 |
| Extra | Alumee alloy profile Fender Passage Kickstand |
| Hmotnost v kg (cca) | 22.5 |
| Hmotnost v lb (cca) | 49.6 |
| Max. systémová hmotnost | 130kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| S / 900 | M / 900 | L / 900 | XL / 900 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 67.0 ° | 67.5 ° | 67.0 ° | 67.5 ° | ||||||||||||||
| B | head tube length / hauteur tube de direction | 140.0 mm | 5.5 in | 140.0 mm | 5.5 in | 160.0 mm | 6.3 in | 160.0 mm | 6.3 in | ||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 570.0 mm | 22.4 in | 590.0 mm | 23.2 in | 610.0 mm | 24.0 in | 630.0 mm | 24.8 in | ||||||||||
| D | standover height / hauteur entre-jambes | 420.0 mm | 16.5 in | 420.0 mm | 16.5 in | 420.0 mm | 16.5 in | 420.0 mm | 16.5 in | ||||||||||
| E | BB offset / deport axe de pédalier | -60.0 mm | -2.4 in | -60.0 mm | -2.4 in | -60.0 mm | -2.4 in | -60.0 mm | -2.4 in | ||||||||||
| F | BB height / hauteur axe de pédalier | 302.0 mm | 11.9 in | 302.0 mm | 11.9 in | 302.0 mm | 11.9 in | 302.0 mm | 11.9 in | ||||||||||
| G | wheel base / entraxe roues | 1,163.9 mm | 45.8 in | 1,178.3 mm | 46.4 in | 1,206.8 mm | 47.5 in | 1,221.0 mm | 48.1 in | ||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 410.0 mm | 16.1 in | 450.0 mm | 17.7 in | 500.0 mm | 19.7 in | 550.0 mm | 21.7 in | ||||||||||
| J | seat angle / angle tube de selle | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | ||||||||||||||
| K | chainstay / longueur des bases | 475.0 mm | 18.7 in | 475.0 mm | 18.7 in | 475.0 mm | 18.7 in | 475.0 mm | 18.7 in | ||||||||||
| L | reach / reach | 401.9 mm | 15.8 in | 421.2 mm | 16.6 in | 436.9 mm | 17.2 in | 456.3 mm | 18.0 in | ||||||||||
| M | stack / stack | 627.5 mm | 24.7 in | 630.0 mm | 24.8 in | 645.9 mm | 25.4 in | 648.5 mm | 25.5 in | ||||||||||
| N | stem length / longueur potence | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | ||||||||||
| 0 | trail / chasse au sol | 103.7 mm | 4.1 in | 100.2 mm | 3.9 in | 103.7 mm | 4.1 in | 100.2 mm | 3.9 in |
