Solace Gravel eRIDE má pohodlnou geometrii, jízdní pozice inspiruje k dlouhým vyjížďkám. Spolu s lehkým karbonovým rámem, dostatečným prostorem v oblasti, kudy jím prochází kolo s pláštěm, a po vzoru modelu SCOTT Addict Gravel, nabízí elektrokolo Solace Gravel eRIDE jízdní zážitek povzbuzující k průzkumu všech prašných cest v okolí.

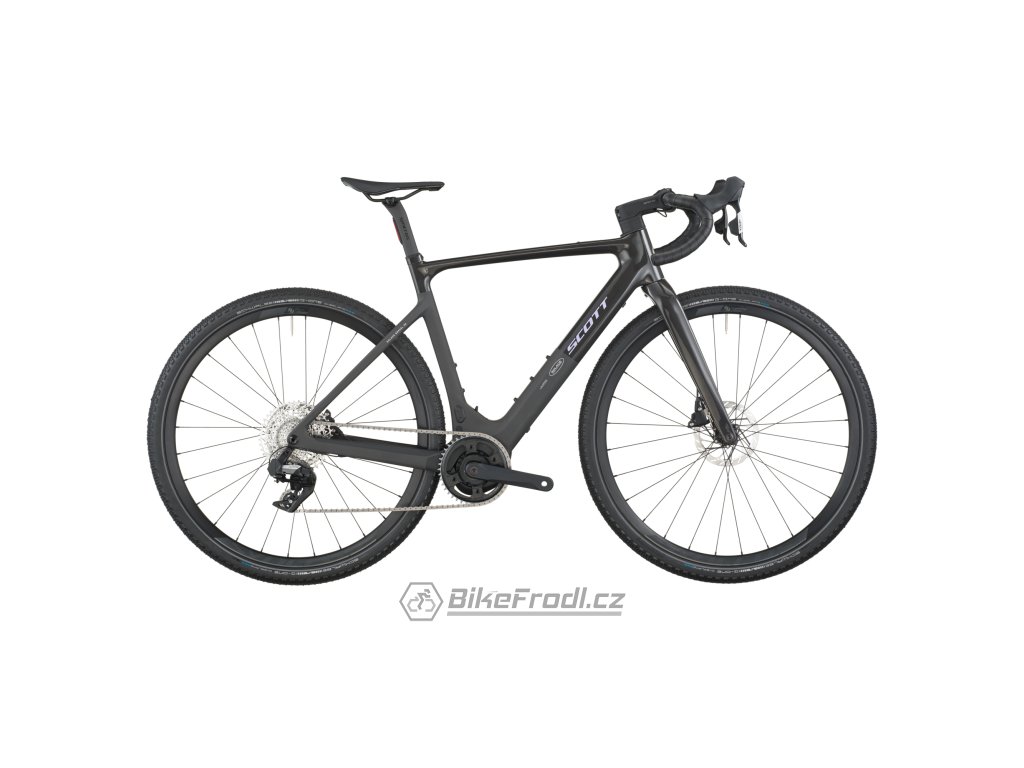

Elektrokolo SCOTT Solace Gravel 30
Na nejlepší šotolinové výjezdy se vám bude daleko lépe vyrážet na elektromodelu Solace Gravel 30. Díky vyšší výdrži baterie v lehkém, hbitém a univerzálním designu rámu získáte jistotu a sebevědomí na to, abyste se pustili na průzkum dál.
Klíčové vlastnosti
- Karbonový rám Solace eRIDE Disc HMX
- TQ mid-drive 60Nm, až 520 Wh, Engine System
- Karbonová vidlice Solace eRIDE HMF
- Sada SRAM APEX XPLR AXS Disc, 12 rychlostí
- Diskové brzdy Sram Apex
- Sada kol Syncros Capital 2.0 Disc
- Pláště Schwalbe G-One Overland 365 50 mm TL
- Hliníkové komponenty Syncros
Technologie
TQ APP
The TQ app offers real benefit and is easy to use. It’s easy to connect, customize and control your TQ-powered E-Bike with the TQ E-Bike app. The bike comes with a suggested SCOTT motor tune, with the app you can further tune your drive unit to either save battery life or maximize the power output. You can alter the pedal response either for a faster motor uptake or to slow it down for a more natural feeling. Lastly, you can customize the display, altering the order and number of screens available, turn on and off control sounds, etc.
TQ HPR60 Motor
TQ is a German company founded in 1994 who specialize in electric components across a range of industries. The latest generation of the Harmonic Pin Ring from TQ (HPR) - the HPR60, delivers an unprecedented weight/power ratio of 1910g for 60Nm. TQ can make a reduction of drive unit size, while also increasing the accuracy of the system. This results in a lighter bike, better integration, while reducing backlash for a more natural pedalling sensation. This technology also allows for the reduction in system noise for a truly natural experience. After all, you are in the outdoors to, well, enjoy the outdoors.
TQ Range Extender
In addition to the 360Wh battery integrated in downtube, all SCOTT TQ-powered eROAD and eGRAVEL bikes are compatible with an additional 160Wh range extender. The range extender comes as an accessory and looks like a simple water bottle. Utilizing the SCOTT specific quick-release system, the range extender is easy to swap in for a bottle cage, tool free. Thanks to TQ’s expertise and unique cell efficiency, battery capacity is optimized to the fullest. The e-bike’s system automatically adapts to having two power sources with SMART technology.
TQ HPR60 Battery
The Solace features a 360Wh internal battery which can be further complemented by a 160Wh external range extender. Thanks to TQ’s electronic expertise, the battery, when combined with the range extender, guarantees maximum performance right through until empty. TQ uses specific battery cells to ensure both the battery and range extender continue at full output, even as it reaches low capacity. The system can be charged with the range extender in place, the smart charger, prioritizing the bike battery to charge first, so you’ll never be caught short when heading out to ride.
NOSIČ A BLATNÍKY
For all-weather riding, fender kits are available from Syncros. The tire clearance with fenders is 45mm.
Technická specifikace
| Rám | Solace Gravel Disc HMX, Endurance geometry, Syncros Cable Integration System, TQ HPR60, UDH Interface, Range Extender Ready |
| Vidlice | Solace Gravel HMF Flatmount Disc 1 1/4"-1 1/2" Eccentric Carbon steerer |
| Pohonná jednotka | TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh - US: 28mph |
| Baterie | TQ Internal 360Wh |
| Displej | TQ HPR 60, Bluetooth, ANT+, AXS, Dedicated Smartphone app |
| Nabíječka | TQ AC 90-264V 2A |
| Přehazovačka | SRAM APEX XPLR eTap AXS, 12 Speed |
| Řazení | SRAM APEX AXS HRD Shift-Brake System |
| Kliky | FSA eBike Alloy CK-746 |
| Převodník | SRAM X-SYNC 42T 107 BCD |
| Řetěz | SRAM APEX |
| Kazeta | SRAM XPLR PG1231, 11-44 |
| Brzdy | SRAM APEX eTap AXS HRD Shift-Brake System, Flatmount |
| Rotor | SRAM HS2 rotor 160/F and 160/R |
| Řidítka | Syncros Creston 2.0 X Alloy 31.8mm |
| Představec | Syncros RR-2.5 1 1/4", four Bolt 31.8mm |
| Sedlovka | Syncros Duncan 1.0 iL D-shape |
| Sedlovka | Syncros Tofino Regular 2.0 Cutout |
| Hlavové složení | Acros AIF-1112 |
| Sada kol | Syncros Capital 2.0 Disc 28 Front 12x100mmTA /28 Rear 12x142mmTA Syncros Axle w/Removable Lever with Tool |
| Přední plášť | Schwalbe G-One Overland 365 Perf, 700x50C |
| Zadní plášť | Schwalbe G-One Overland 365 Perf, 700x50C |
| Světla | Syncros Campbell iL rear |
| Hmotnost v kg (cca) | 14.3 |
| Hmotnost v lb (cca) | 31.53 |
| Max. systémová hmotnost | 120kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| XS/49 | S/52 | M/54 | L/56 | XL/58 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 69.5 ° | 70.0 ° | 71.0 ° | 71.0 ° | 71.0 ° | |||||||||||||
| B | head tube length / hauteur tube de direction | 85.0 mm | 3.3 in | 110.0 mm | 4.3 in | 128.0 mm | 5.0 in | 154.0 mm | 6.1 in | 175.0 mm | 6.9 in | ||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 518.0 mm | 20.4 in | 534.2 mm | 21.0 in | 554.5 mm | 21.8 in | 578.4 mm | 22.8 in | 592.5 mm | 23.3 in | ||||||||
| D | standover height / hauteur entre-jambes | 759.0 mm | 29.9 in | 785.0 mm | 30.9 in | 803.0 mm | 31.6 in | 824.0 mm | 32.4 in | 841.0 mm | 33.1 in | ||||||||
| E | BB offset / deport axe de pédalier | 76.0 mm | 3.0 in | 76.0 mm | 3.0 in | 76.0 mm | 3.0 in | 76.0 mm | 3.0 in | 76.0 mm | 3.0 in | ||||||||
| F | BB height / hauteur axe de pédalier | 294.0 mm | 11.6 in | 294.0 mm | 11.6 in | 294.0 mm | 11.6 in | 294.0 mm | 11.6 in | 294.0 mm | 11.6 in | ||||||||
| G | wheel base / entraxe roues | 1,021.5 mm | 40.2 in | 1,030.1 mm | 40.6 in | 1,036.8 mm | 40.8 in | 1,056.2 mm | 41.6 in | 1,071.1 mm | 42.2 in | ||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 477.0 mm | 18.8 in | 507.0 mm | 20.0 in | 527.0 mm | 20.7 in | 547.0 mm | 21.5 in | 567.0 mm | 22.3 in | ||||||||
| J | seat angle / angle tube de selle | 74.5 ° | 74.0 ° | 73.5 ° | 73.0 ° | 73.0 ° | |||||||||||||
| K | chainstay / longueur des bases | 435.0 mm | 17.1 in | 435.0 mm | 17.1 in | 435.0 mm | 17.1 in | 435.0 mm | 17.1 in | 435.0 mm | 17.1 in | ||||||||
| L | reach / reach | 374.0 mm | 14.7 in | 378.0 mm | 14.9 in | 387.0 mm | 15.2 in | 398.0 mm | 15.7 in | 406.0 mm | 16.0 in | ||||||||
| M | stack / stack | 519.3 mm | 20.4 in | 544.7 mm | 21.4 in | 565.6 mm | 22.3 in | 590.2 mm | 23.2 in | 610.0 mm | 24.0 in | ||||||||
| N | stem length / longueur potence | 80.0 mm | 3.1 in | 90.0 mm | 3.5 in | 100.0 mm | 3.9 in | 100.0 mm | 3.9 in | 110.0 mm | 4.3 in | ||||||||
| 0 | trail / chasse au sol | 80.8 mm | 3.2 in | 77.5 mm | 3.0 in | 70.7 mm | 2.8 in | 70.7 mm | 2.8 in | 70.7 mm | 2.8 in |
