Sub eRIDE. Nemyslete už na šílené dopravní zácpy, nedostatková volná parkovací místa a nemožně prudké kopce! Začněte si každodenní dojíždění užívat, těšte se, že budete pochůzky vyřizovat na kole, žijte své město naplno! Městská elektrokola SCOTT konstruujeme jako silná, pohodlná a odolná, aby byla ideální pro všechny, kteří chtějí stylový produkt špičkové kvality s výkonem nejvyšší úrovně.

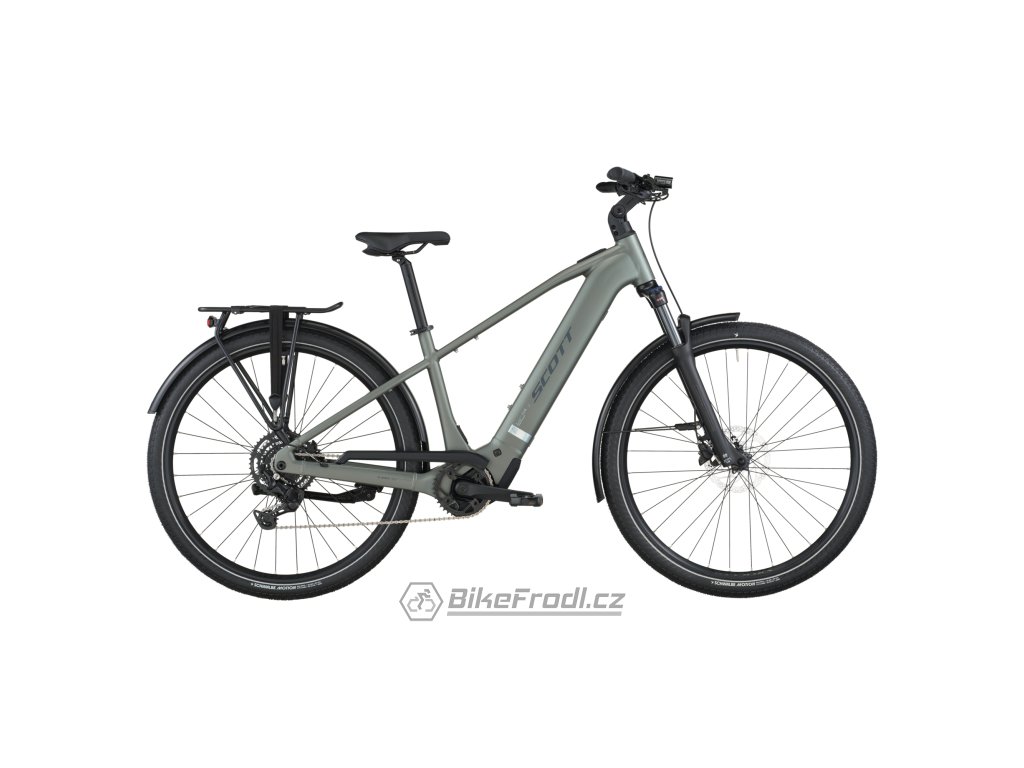

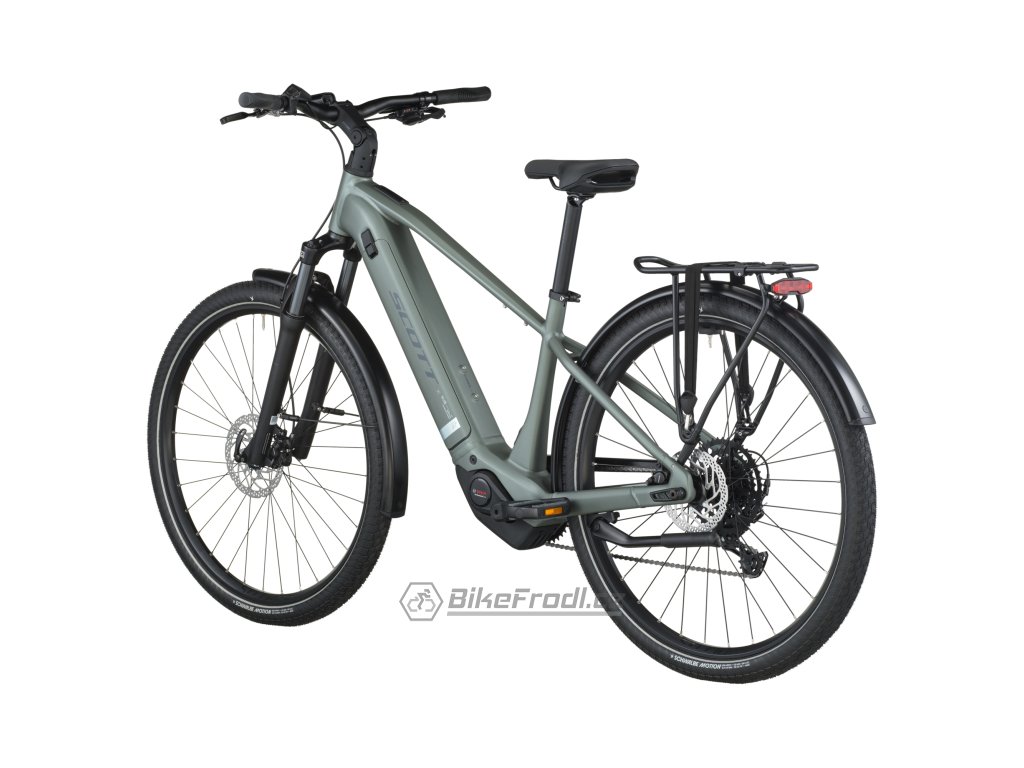

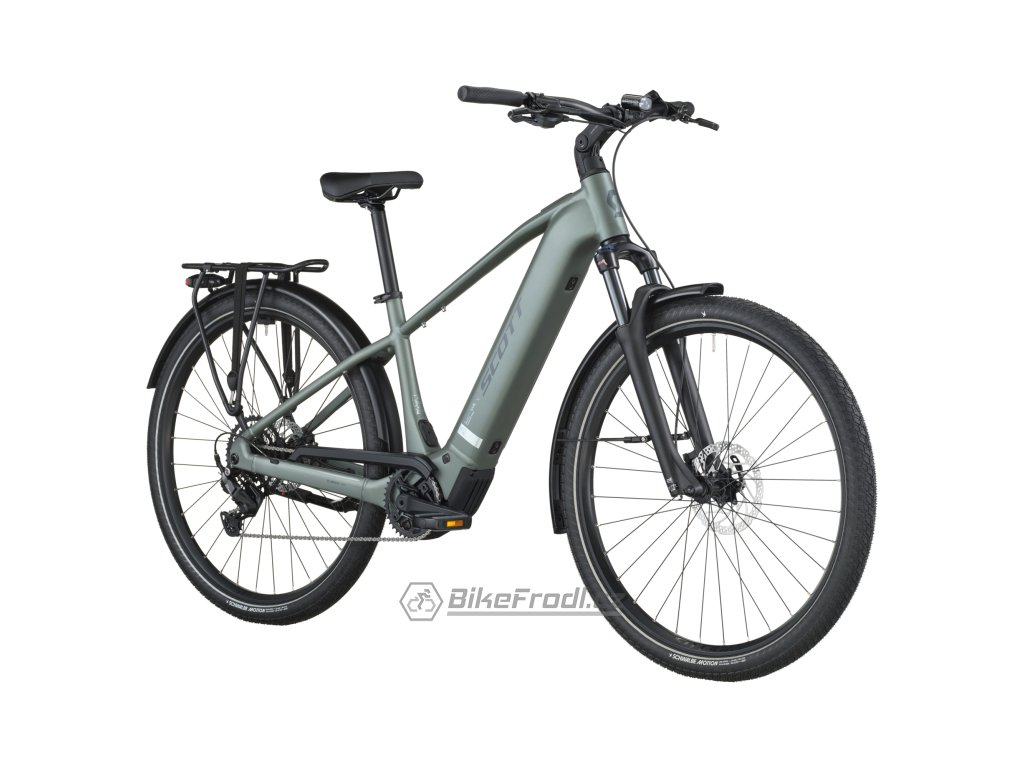

Městské kolo SCOTT Sub Sport 30
Užijte si jízdu na kole a dojíždění do práce bez starostí s provozem. Vyměňte auto za spolehlivé městské elektrokolo Sub Sport 30 se silným univerzálním motorem Bosch a intuitivním ovládáním.
Klíčové vlastnosti
- Hliníkový rám SUB eRIDE
- Bosch Performance, PT540 SmartSystem Engine System
- Vidlice SR Suntour, zdvih 100 mm
- Sada Shimano CUES, 9 rychlostí
- Diskové brzdy Shimano
- Pláště Schwalbe Big Apple
- Přední světlo Lezyne / zadní integrovaná světla Syncros, hliníkové blatníky Curana
- Kompatibilní s adaptérem na nosič Racktime Snap It 2.0, nosnost 25 kg
Technologie

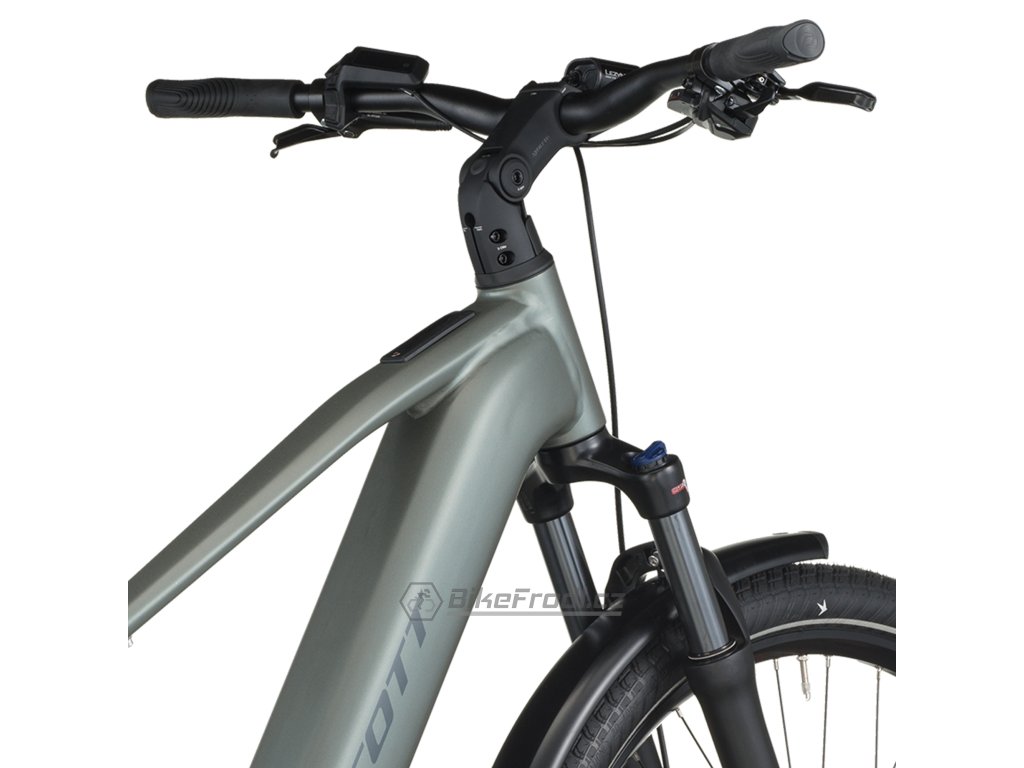

SYNCROS COCKPIT
The new Syncros cockpit, equipped with an adjustable stem, gives the handlebar a sleek and attractive look.

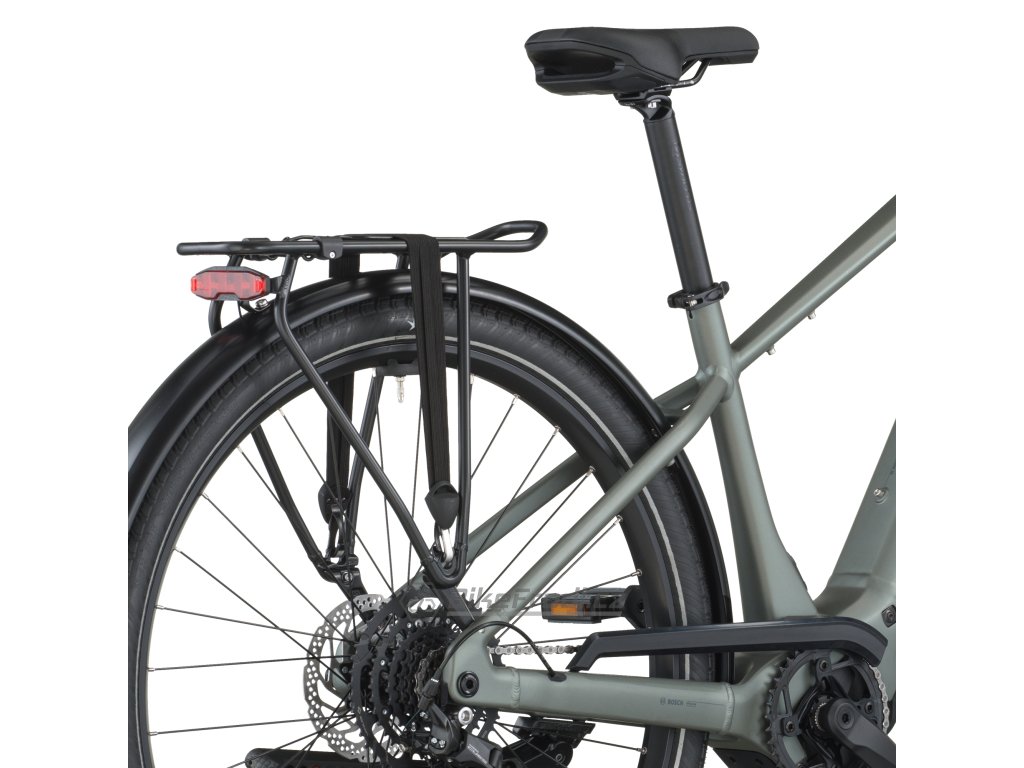

HEAVY-DUTY REAR RACK AND POWERFUL LIGHTS
Planning to carry a heavy load? No problem. The e-bike comes with a heavy-duty rear rack that supports up to 27 kg, perfect for a kids’ seat as well. Compatible with the Racktime Snap it 2.0 system adapter, the bike also features a powerful Lezyne front light and Syncros rear light: the rear light, integrated into the rear rack, is still visible with a kids’ seat mounted and thanks to its wraparound design, ensures visibility from a broader spectrum of angles.
SYNCROS COMBO
The new Syncros combo features a single-piece design with an integrated display, front light and cables, creating a sleek and aesthetically appealing handlebar.
SUB GEOMETRY
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a low step-through called “wave”, which is easier to mount and dismount. Pick the one that fits best suits you.
Technická specifikace
| Rám | Alloy S-XL=29", 6061 Alloy custom butted tubing Side extraction battery UDH Interface, 12x148mm with 52mm Chainline |
| Zdvih | 100mm |

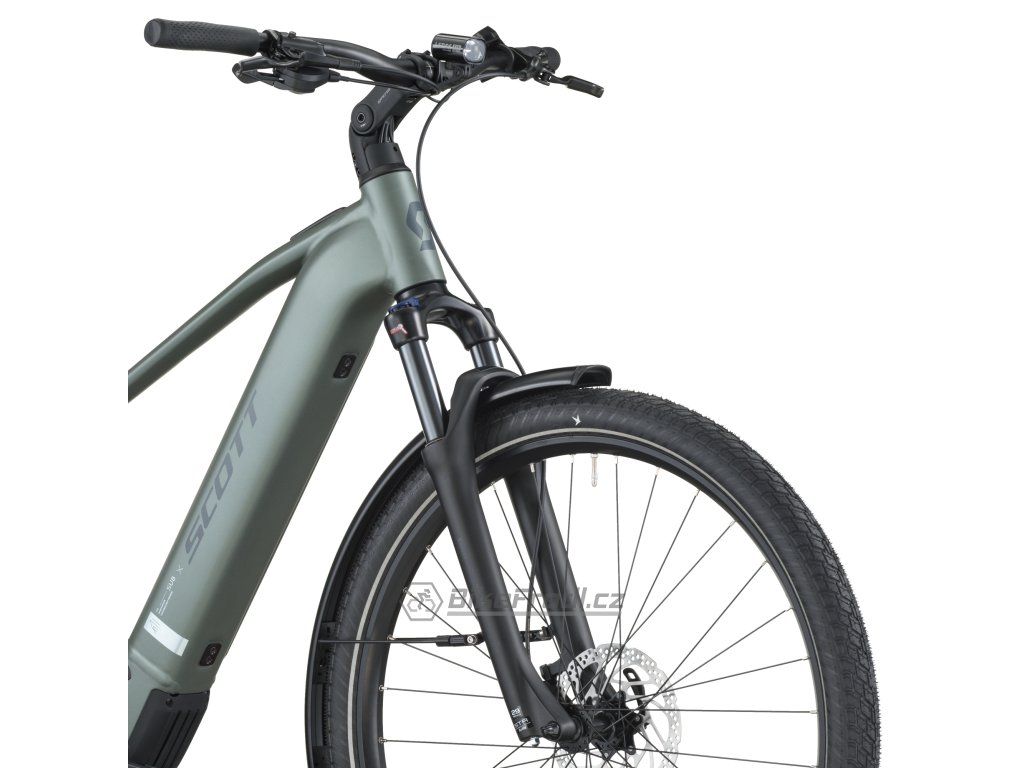

| Vidlice | SR Suntour NVX 32 5TA NLO Coil, Tapered, 5x100 TA, Lock Out, 100mm Travel |

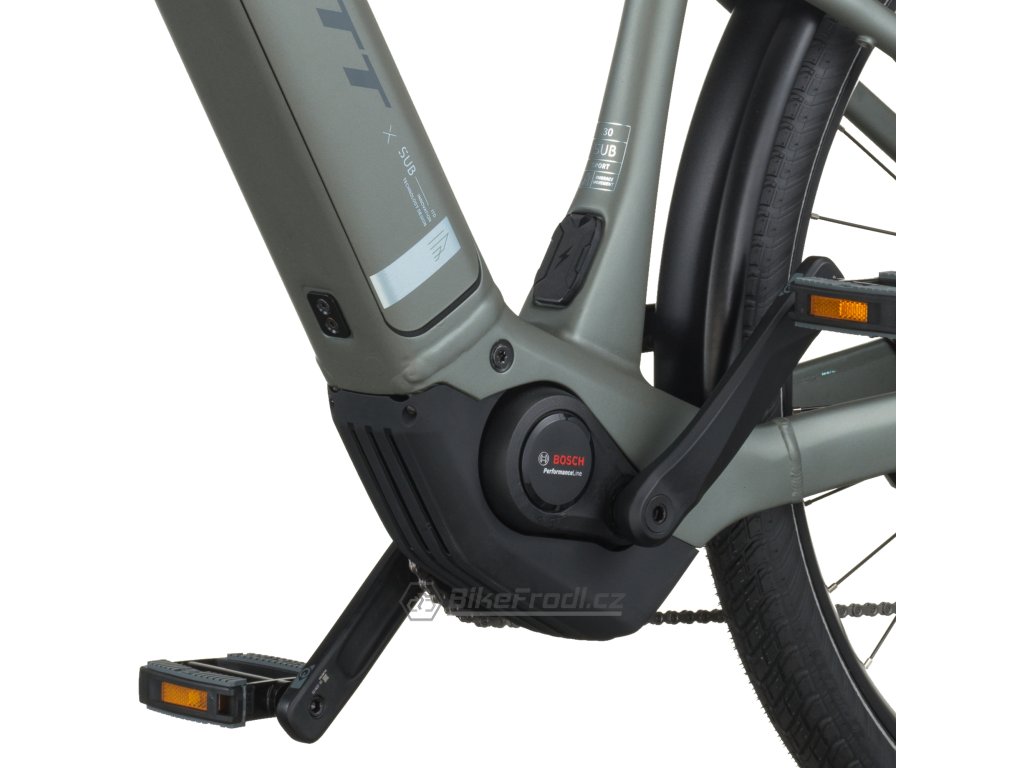

| Pohonná jednotka | Bosch Performance Line (BDU346Y) EU: 25kmh |
| Baterie | PowerTube 540Wh |
| Displej | Bosch Purion 200 |
| Nabíječka | 2A Charger |

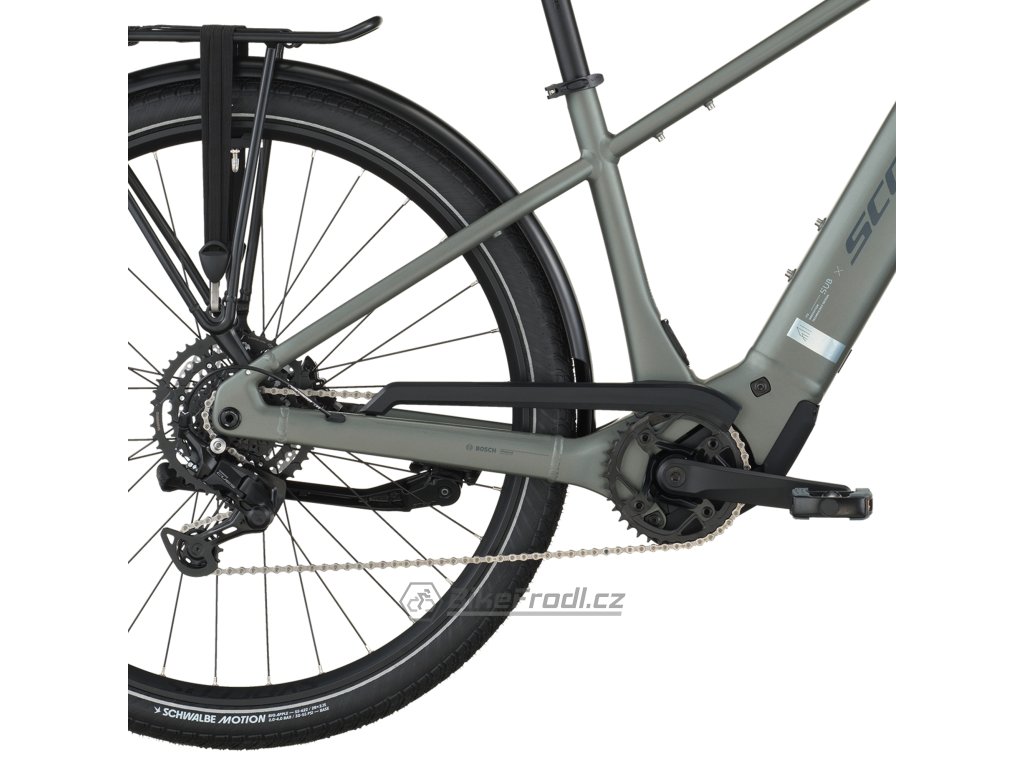

| Řazení | Shimano CUES RD-U4000GS 9 Speed |
| Kliky | FSA CK-220 170mm |
| Vodítko řetězu | Syncros |
| Převodník | FSA 38T |
| Řetěz | Shimano LG500 |
| Kazeta | Shimano CS-LG3009 11-46 T |
| Brzdy | Shimano BR-MT200 Disc |
| Rotor | Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm |
| Řidítka | Syncros UC3.0 680mm, Rise 12mm, Backsweep 15° |
| Představec | Syncros UC 3.0 adjustable with front Light mount |
| Sedlovka | Syncros 3.0, 31.6mm, 350mm |
| Sedlovka | Syncros Capilano |
| Hlavové složení | Acros, 1.5"- 1.5" semi integ. OD 50/61mm, ID 44/55mm |
| Přední náboj | Shimano HBQC400B58LL, 5x100mm |
| Zadní náboj | Shimano FHTC500HMBB, 148x12mm |
| Výplet | Black Spokes |
| Ráfky | Syncros X18 Disc |
| Přední plášť | Schwalbe Big Apple Performance, 55-622 |
| Zadní plášť | Schwalbe Big Apple Performance, 55-622 |
| Světla | Front Lezyne Hecto E65 Rear Super Bright Lezyne Light |
| Nosič & blatníky | Racktime carrier SnapIt 2.0 25KG |
| Pedály | Marwi SP-828 |
| Hmotnost v kg (cca) | 27.6 |
| Hmotnost v lb (cca) | 60.85 |
| Max. systémová hmotnost | 160kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| XS | S | M | L | XL | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 67.2 ° | 67.2 ° | 68.2 ° | 68.2 ° | 68.2 ° | |||||||||||||
| B | head tube length / hauteur tube de direction | 130.0 mm | 5.1 in | 130.0 mm | 5.1 in | 130.0 mm | 5.1 in | 140.0 mm | 5.5 in | 150.0 mm | 5.9 in | ||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 577.0 mm | 22.7 in | 577.0 mm | 22.7 in | 597.0 mm | 23.5 in | 617.0 mm | 24.3 in | 637.0 mm | 25.1 in | ||||||||
| D | standover height / hauteur entre-jambes | 752.2 mm | 29.6 in | 767.2 mm | 30.2 in | 768.0 mm | 30.2 in | 805.4 mm | 31.7 in | 840.1 mm | 33.1 in | ||||||||
| E | BB offset / deport axe de pédalier | 72.6 mm | 2.9 in | 72.6 mm | 2.9 in | 72.6 mm | 2.9 in | 72.6 mm | 2.9 in | 72.6 mm | 2.9 in | ||||||||
| F | BB height / hauteur axe de pédalier | 302.4 mm | 11.9 in | 302.4 mm | 11.9 in | 302.4 mm | 11.9 in | 302.4 mm | 11.9 in | 302.4 mm | 11.9 in | ||||||||
| G | wheel base / entraxe roues | 1,205.7 mm | 47.1 in | 1,197.1 mm | 47.1 in | 1,205.7 mm | 47.5 in | 1,227.2 mm | 48.3 in | 1,248.8 mm | 49.2 in | ||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 370.0 mm | 14.6 in | 400.0 mm | 15.7 in | 440.0 mm | 17.3 in | 490.0 mm | 19.3 in | 540.0 mm | 21.3 in | ||||||||
| J | seat angle / angle tube de selle | 77.0 ° | 77.0 ° | 77.0 ° | 77.0 ° | 77.0 ° | |||||||||||||
| K | chainstay / longueur des bases | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | ||||||||
| L | reach / reach | 425.4 mm | 16.7 in | 425.4 mm | 16.7 in | 444.2 mm | 17.5 in | 461.8 mm | 18.2 in | 479.4 mm | 18.9 in | ||||||||
| M | stack / stack | 636.0 mm | 25.0 in | 636.0 mm | 25.0 in | 641.0 mm | 25.2 in | 651.0 mm | 25.6 in | 660.0 mm | 26.0 in | ||||||||
| N | stem length / longueur potence | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | ||||||||
| 0 | trail / chasse au sol | 115.6 mm | 4.6 in | 115.6 mm | 4.6 in | 108.3 mm | 4.3 in | 108.3 mm | 4.3 in | 108.3 mm | 4.3 in |
