Speedster je lehčí a stylovější než dřív. Rámovou sadu jsme vybavili karbonovou vidlicí, vnitřně vedenou kabeláží a prověřenou vytrvalostní geometrií.

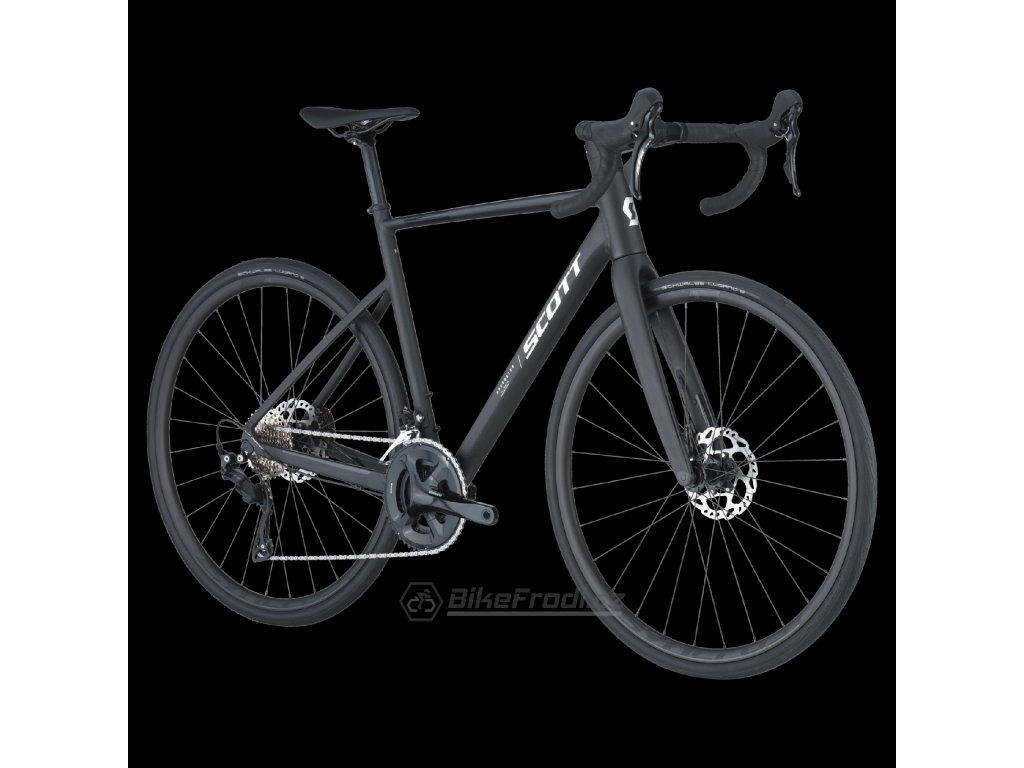

Silniční kolo SCOTT Speedster 10
Lehké a hbité silniční kolo - hliníkový Speedster 10. Nejen, že se na něm bezvadně jezdí, ale s plně integrovanou kabeláží navíc také skvěle vypadá.
Klíčové vlastnosti
- Hliníkový rám Speedster Disc
- Hliníkový rám Speedster Disc
- Karbonová vidlice Speedster Disc
- Ráfky Syncros Race 24 Disc
- Sada Shimano 105 Disc, 24 rychlostí
- Ráfky Syncros Race 25 Disc
- Pláště Schwalbe Lugano
Technická specifikace
| Rám | Speedster Disc, 6061 D.Butted Alloy Endurance geometry, int. cable routing Syncros fender kit ready |
| Vidlice | Speedster HMF Disc 1 1/4"-1 1/2" Eccentric Carbon steerer |
| Přehazovačka | Shimano 105 RD-R7100 24 Speed |
| Přesmykač | Shimano 105 FD-R7100 |
| Řazení | Shimano 105 ST-R7120 Disc Dual control 24 Speed |
| Kliky | Shimano FC-RS520 50/34 |
| BB-Set | Shimano BB-RS500-PB |
| Řetěz | Shimano CN-M6100-12 |
| Kazeta | Shimano CS-R7101 11-34 |
| Brzdy | Shimano BR-R7170 Hyd.Disc |
| Rotor | Shimano RT-CL700 rotor 160/F and 160/R |
| Řidítka | Syncros Creston 2.0 Compact 31.8mm |
| Představec | Syncros RR2.5 1 1/4", four Bolt 31.8mm |
| Sedlovka | Syncros RR2.5 27.2/350mm |
| Sedlovka | Syncros Tofino Regular 2.5 |
| Hlavové složení | Acros AIF-1133 |
| Přední náboj | Formula Team II CL Disc 28 H |
| Zadní náboj | Formula Team II CL Disc 28 H |
| Výplet | Black 2mm |
| Ráfky | 28 Front, 28 Rear Syncros Race 25 Disc |
| Přední plášť | Schwalbe Lugano, 700x32C |
| Zadní plášť | Schwalbe Lugano, 700x32C |
| Hmotnost v kg (cca) | 10.2 |
| Hmotnost v lb (cca) | 22.49 |
| Max. systémová hmotnost | 120kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 70.5 ° | 71.0 ° | 72.0 ° | 72.5 ° | 73.0 ° | 73.3 ° | 73.3 ° | |||||||||
| B | head tube length / hauteur tube de direction | 93.0 mm | 3.7 in | 103.0 mm | 4.1 in | 123.0 mm | 4.8 in | 143.0 mm | 5.6 in | 163.0 mm | 6.4 in | 183.0 mm | 7.2 in | 203.0 mm | 8.0 in | ||
| C | top tube horizontal / longueur horizontale tube supérieur | 515.0 mm | 20.3 in | 525.0 mm | 20.7 in | 540.0 mm | 21.3 in | 554.0 mm | 21.8 in | 569.0 mm | 22.4 in | 583.0 mm | 23.0 in | 596.0 mm | 23.5 in | ||
| D | standover height / hauteur entre-jambes | 735.0 mm | 28.9 in | 754.0 mm | 29.7 in | 780.0 mm | 30.7 in | 800.0 mm | 31.5 in | 820.0 mm | 32.3 in | 840.0 mm | 33.1 in | 864.0 mm | 34.0 in | ||
| E | BB offset / deport axe de pédalier | -70.0 mm | -2.8 in | -70.0 mm | -2.8 in | -70.0 mm | -2.8 in | -70.0 mm | -2.8 in | -70.0 mm | -2.8 in | -70.0 mm | -2.8 in | -70.0 mm | -2.8 in | ||
| F | BB height / hauteur axe de pédalier | 275.3 mm | 10.8 in | 275.3 mm | 10.8 in | 275.3 mm | 10.8 in | 275.3 mm | 10.8 in | 275.3 mm | 10.8 in | 275.3 mm | 10.8 in | 275.3 mm | 10.8 in | ||
| G | wheel base / entraxe roues | 1,001.5 mm | 39.4 in | 1,007.9 mm | 39.7 in | 1,010.0 mm | 39.8 in | 1,015.8 mm | 40.0 in | 1,023.3 mm | 40.3 in | 1,030.3 mm | 40.6 in | 1,043.0 mm | 41.1 in | ||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | 430.0 mm | 16.9 in | 450.0 mm | 17.7 in | 480.0 mm | 18.9 in | 500.0 mm | 19.7 in | 520.0 mm | 20.5 in | 540.0 mm | 21.3 in | 570.0 mm | 22.4 in | ||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 470.0 mm | 18.5 in | 490.0 mm | 19.3 in | 520.0 mm | 20.5 in | 540.0 mm | 21.3 in | 560.0 mm | 22.0 in | 580.0 mm | 22.8 in | 610.0 mm | 24.0 in | ||
| J | seat angle / angle tube de selle | 75.0 ° | 75.0 ° | 74.5 ° | 74.0 ° | 73.5 ° | 73.1 ° | 73.0 ° | |||||||||
| K | chainstay / longueur des bases | 425.0 mm | 16.7 in | 425.0 mm | 16.7 in | 425.0 mm | 16.7 in | 425.0 mm | 16.7 in | 427.0 mm | 16.8 in | 427.0 mm | 16.8 in | 427.0 mm | 16.8 in | ||
| L | reach / reach | 376.0 mm | 14.8 in | 383.0 mm | 15.1 in | 387.0 mm | 15.2 in | 391.0 mm | 15.4 in | 385.0 mm | 15.2 in | 399.0 mm | 15.7 in | 406.0 mm | 16.0 in | ||
| M | stack / stack | 517.8 mm | 20.4 in | 529.1 mm | 20.8 in | 551.6 mm | 21.7 in | 572.4 mm | 22.5 in | 593.3 mm | 23.4 in | 613.6 mm | 24.2 in | 632.7 mm | 24.9 in | ||
| N | stem length / longueur potence | 83.0 mm | 3.3 in | 83.0 mm | 3.3 in | 93.0 mm | 3.7 in | 103.0 mm | 4.1 in | 103.0 mm | 4.1 in | 113.0 mm | 4.4 in | 113.0 mm | 4.4 in |
