Celodpružený Axis eRIDE - dokonalé hybridní elektrokolo. Kompromis mezi městským a all-terain kolem, pohodlný na stezce i v terénu, připravený odvézt vše potřebné, kamkoli se vám zamane, o víkendu nebo při dojíždění ve všední dny.

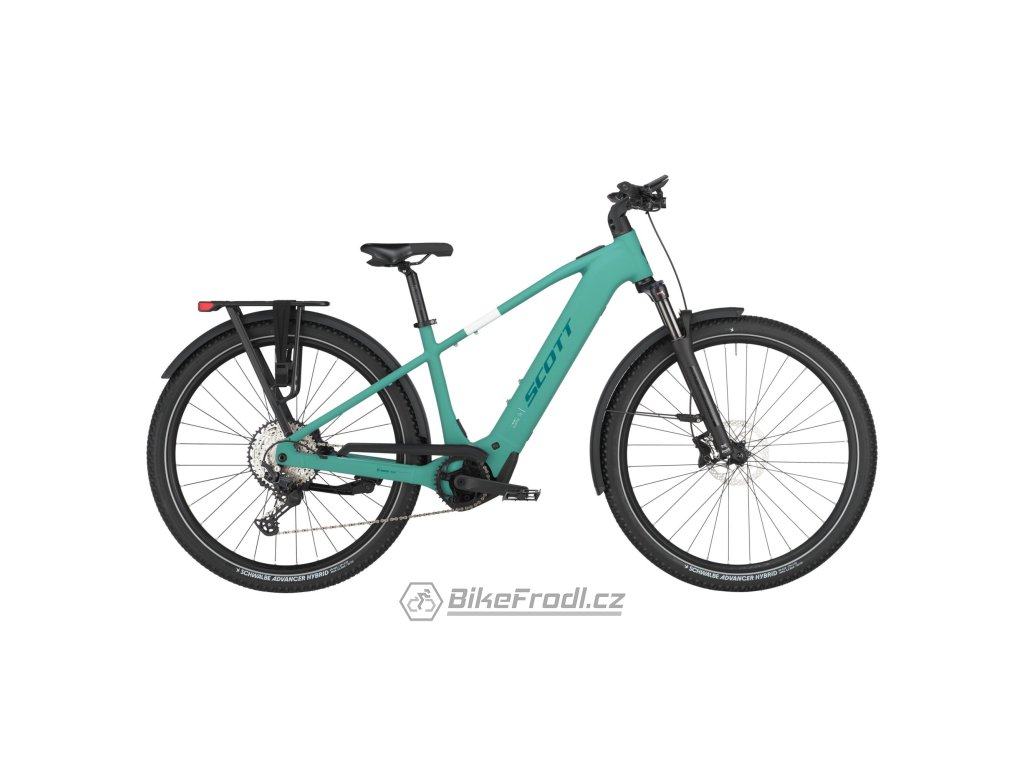

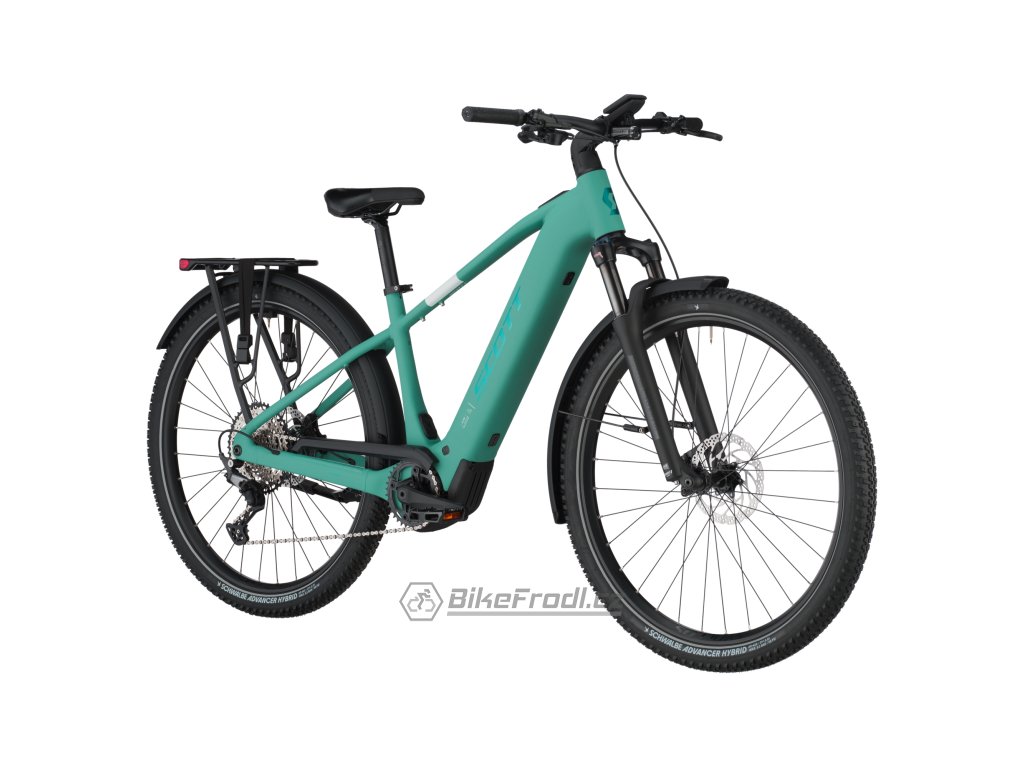

Trekingové elektrokolo SCOTT Axis 20
Dokonalý prostředek na cestováníí městem i na horskou cyklistikou.
Klíčové vlastnosti
- Vidlice Suntour, zdvih 120 mm
- Shimano Deore 12 rychlostí
- Diskové brzdy Shimano
- Adaptér Syncros na připojení vozíku za kolo
- Přední a zadní světlo Lezyne / zadní integrované v nosiči Syncros
- Kompatibilní s adaptérem na nosič Racktime Snap It 2.0, nosnost 27 kg
- Syncros bike trailer adapter Lezyne front / Syncros rear-rack integrated rear Lights / Curana alloy fenders
- Racktime carrier Snap It 2.0 compatible, 27KG
Technologie
HEAVY-DUTY REAR RACK AND POWERFUL LIGHTS
Planning to carry a heavy load? No problem. The e-bike comes with a heavy-duty rear rack that supports up to 27 kg, perfect for a kids’ seat as well. Compatible with the Racktime Snap it 2.0 system adapter, the bike also features a powerful Lezyne front light and Syncros rear light: the rear light, integrated into the rear rack, is still visible with a kids’ seat mounted and thanks to its wraparound design, ensures visibility from a broader spectrum of angles.
SYNCROS ADAPTER FOR BIKE TRAILER
Need to bring your kids or pets along for the ride or just carry your grocery shopping bags? No problem! Our Syncros team has designed a thru-axle which enables you to tow any bike or cargo trailer so you can enjoy your time with your loved ones on your e-bike.
BOSCH EBIKE SYSTEM - 600 WH BATTERY
Reliability is key when it comes to e-Bike systems and Bosch is among the leaders. With the new Performance CX drive unit of 85 Nm, paired with the powerful, integrated PowerTube 600 WH battery, you can simply enjoy your ride. And if that’s still not enough, the e-bike is compatible with the Bosch PowerMore 250 range extender. The battery weight is also reduced to 3.9 kg thanks to its high energy density 205WH/kg.
SYNCROS COCKPIT
The new Syncros cockpit, equipped with an adjustable stem, gives the handlebar a sleek and attractive look.
AXIS GEOMETRY
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a low step-through called “wave”, which is easier to mount and dismount. Pick the one that fits best suits you.
Technická specifikace
| Rám | Alloy S-XL=29", 6061 Alloy custom butted tubing Side extraction battery UDH Interface, 12x148mm with 52mm Chainline |
| Zdvih | 120mm |
| Vidlice | SR Suntour XCM34 LO Coil, Tapered, 15x110 TA, Lock Out, 120mm Travel |
| Pohonná jednotka | Bosch Performance Line CX (BDU384Y) EU: 25kmh |
| Baterie | PowerTube 600Wh |
| Displej | Bosch System Controller Intuvia 100 Mini remote |
| Nabíječka | 2A Charger |
| Přehazovačka | Shimano Deore RD M6100SGS 12 Speed |
| Řazení | Shimano Deore SL-M6100RA |
| Kliky | FSA CK-220 165mm |
| Vodítko řetězu | Syncros |
| Převodník | FSA 36T |
| Řetěz | KMC E12S |
| Kazeta | Shimano CS-M6100-12 10-51T 12 Speed |
| Brzdy | Shimano BR-MT420 Disc Brakes |
| Rotor | Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 180mm |
| Řidítka | Syncros 3.0 720mm, 31.8mm, Backsweep 9°, 12mm rise Syncros Lock On Grip |
| Představec | Syncros with front Light mount and Intuvia 100 mount |
| Sedlovka | Syncros M3.0, 31.6 |
| Sedlovka | Syncros Capilano |
| Hlavové složení | Acros, 1.5"- 1.5" semi integ. OD 50/61mm, ID 44/55mm |
| Přední náboj | Shimano HB-TC50015BB CL, 15x110mm |
| Zadní náboj | Shimano FH-TC500HMSBB CL, Boost 12x148mm |
| Výplet | Black Spokes |
| Ráfky | Syncros X18 Disc |
| Přední plášť | Schwalbe Advancer 60-622 Wired |
| Zadní plášť | Schwalbe Advancer 60-622 Wired |
| Světla | Front Lezyne Hecto E65 Rear Super Bright Lezyne Light |
| Nosič & blatníky | Racktime Micro Rack SnapIt 2.0 27KG |
| Pedály | VP VPE-506 |
| Hmotnost v kg (cca) | 28.3 |
| Hmotnost v lb (cca) | 62.39 |
| Max. systémová hmotnost | 160kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| XS | S | M | L | XL | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 66.0 ° | 66.0 ° | 67.0 ° | 67.0 ° | 67.0 ° | |||||||||||||
| B | head tube length / hauteur tube de direction | 130.0 mm | 5.1 in | 130.0 mm | 5.1 in | 130.0 mm | 5.1 in | 140.0 mm | 5.5 in | 150.0 mm | 5.9 in | ||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 580.0 mm | 22.8 in | 580.0 mm | 22.8 in | 600.0 mm | 23.6 in | 620.0 mm | 24.4 in | 640.0 mm | 25.2 in | ||||||||
| D | standover height / hauteur entre-jambes | 773.1 mm | 30.4 in | 788.2 mm | 31.0 in | 789.3 mm | 31.1 in | 826.6 mm | 32.5 in | 861.4 mm | 33.9 in | ||||||||
| E | BB offset / deport axe de pédalier | 63.0 mm | 2.5 in | 63.0 mm | 2.5 in | 63.0 mm | 2.5 in | 63.0 mm | 2.5 in | 63.0 mm | 2.5 in | ||||||||
| F | BB height / hauteur axe de pédalier | 312.0 mm | 12.3 in | 312.0 mm | 12.3 in | 312.0 mm | 12.3 in | 312.0 mm | 12.3 in | 312.0 mm | 12.3 in | ||||||||
| G | wheel base / entraxe roues | 1,213.1 mm | 47.8 in | 1,213.1 mm | 47.8 in | 1,221.1 mm | 48.1 in | 1,242.7 mm | 48.9 in | 1,264.3 mm | 49.8 in | ||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 370.0 mm | 14.6 in | 400.0 mm | 15.7 in | 440.0 mm | 17.3 in | 490.0 mm | 19.3 in | 540.0 mm | 21.3 in | ||||||||
| J | seat angle / angle tube de selle | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° | |||||||||||||
| K | chainstay / longueur des bases | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | ||||||||
| L | reach / reach | 412.2 mm | 16.2 in | 412.2 mm | 16.2 in | 430.8 mm | 17.0 in | 448.5 mm | 17.7 in | 466.2 mm | 18.4 in | ||||||||
| M | stack / stack | 663.0 mm | 26.1 in | 663.0 mm | 26.1 in | 668.6 mm | 26.3 in | 677.8 mm | 26.7 in | 687.0 mm | 27.0 in | ||||||||
| N | stem length / longueur potence | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | ||||||||
| 0 | trail / chasse au sol | 111.1 mm | 4.4 in | 111.1 mm | 4.4 in | 103.8 mm | 4.1 in | 103.8 mm | 4.1 in | 103.8 mm | 4.1 in |
