Celodpružený Axis eRIDE - dokonalé hybridní elektrokolo. Kompromis mezi městským a all-terain kolem, pohodlný na stezce i v terénu, připravený odvézt vše potřebné, kamkoli se vám zamane, o víkendu nebo při dojíždění ve všední dny.

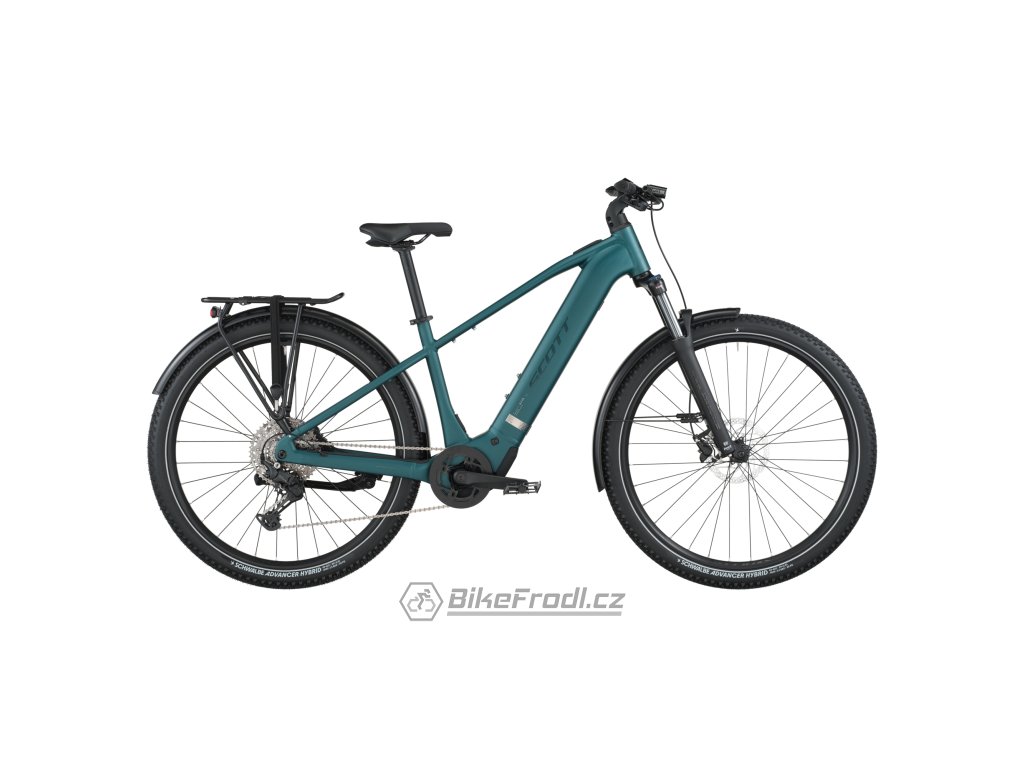

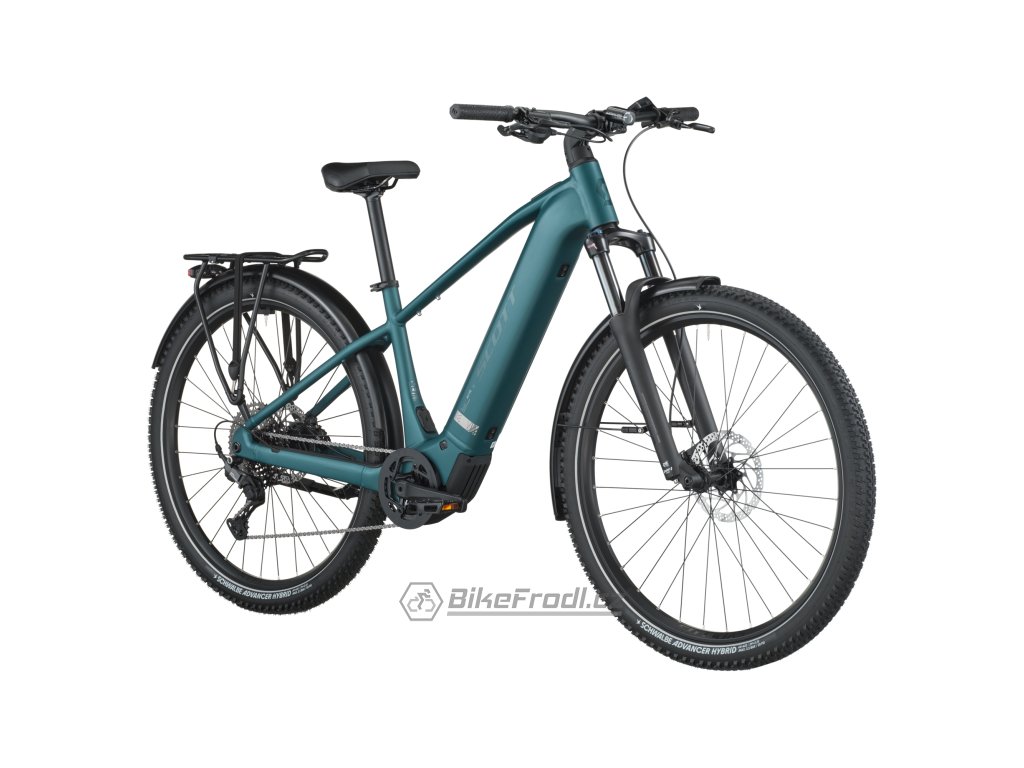

Trekingové elektrokolo SCOTT Axis 30
Dokonalý prostředek na cestování městem i na horskou cyklistiku.
Klíčové vlastnosti
- Hliníkový rám Axis eRIDE

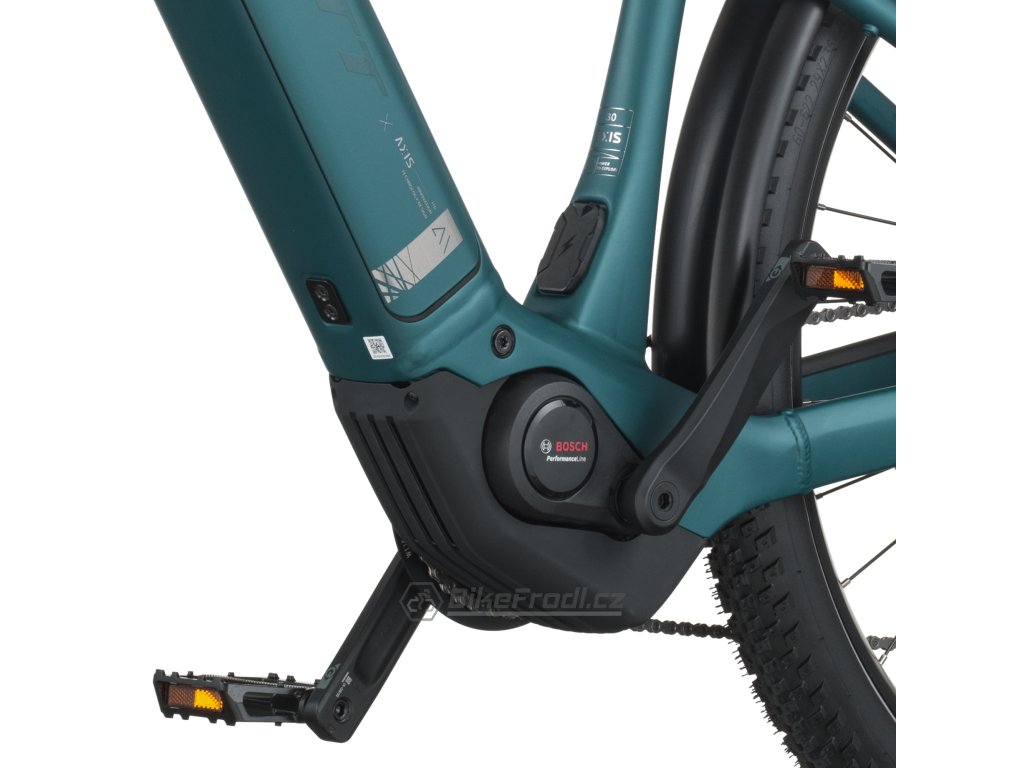

- Bosch Performance, PT540 SmartSystem Engine System

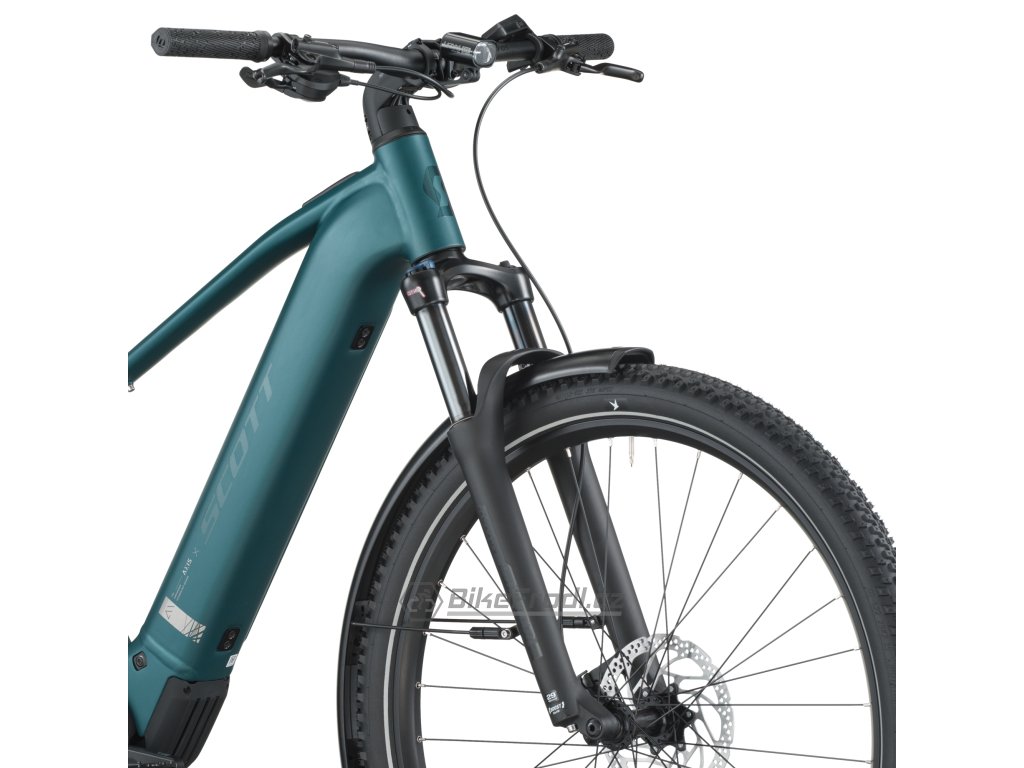

- Vidlice Suntour, zdvih 120 mm
- Sada Shimano CUES, 10 rychlostí
- Diskové brzdy Shimano
- Adaptér Syncros na připojení vozíku za kolo / Přední světlo Lezyne / Zadní integrované v nosiči Syncros / Hliníkové blatníky Curana
- Kompatibilní s adaptérem na nosič Racktime Snap It 2.0, nosnost 27 kg
Technologie
HEAVY-DUTY REAR RACK AND POWERFUL LIGHTS
Planning to carry a heavy load? No problem. The e-bike comes with a heavy-duty rear rack that supports up to 27 kg, perfect for a kids’ seat as well. Compatible with the Racktime Snap it 2.0 system adapter, the bike also features a powerful Lezyne front light and Syncros rear light: the rear light, integrated into the rear rack, is still visible with a kids’ seat mounted and thanks to its wraparound design, ensures visibility from a broader spectrum of angles.
AXIS GEOMETRY
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a low step-through called “wave”, which is easier to mount and dismount. Pick the one that fits best suits you.
Technická specifikace
| Rám | Alloy S-XL=29", 6061 Alloy custom butted tubing Side extraction battery UDH Interface, 12x148mm with 52mm Chainline |
| Zdvih | 120mm |
| Vidlice | SR Suntour XCM34 Coil, Tapered, 15x110 TA, 120mm Travel |
| Pohonná jednotka | Bosch Performance Line (BDU346Y) EU: 25kmh |
| Baterie | PowerTube 540Wh |
| Displej | Bosch Purion 200 |
| Nabíječka | 2A Charger |
| Přehazovačka | Shimano CUES RD-U6000GS 10 Speed |
| Řazení | Shimano SL-U600010RC |
| Kliky | FSA CK-220 165mm |
| Převodník | Miranda 36T w/Chain Guard |
| Řetěz | Shimano LG500 |
| Kazeta | Shimano CS-LG40010 11-48T 10 Speed |
| Brzdy | Shimano BR-MT200 Disc Brakes |
| Rotor | Front: SM-RT30 CL 180mm, Rear: RT-EM300 CL 180mm |
| Řidítka | Syncros 3.0 720mm, 31.8mm, Backsweep 9°, 12mm rise Syncros Lock On Grip |
| Představec | Syncros with front Light mount |
| Sedlovka | Syncros 3.0, 31.6mm |
| Sedlovka | Syncros Capilano |
| Hlavové složení | Acros, 1.5"- 1.5" semi integ. OD 50/61mm, ID 44/55mm |
| Přední náboj | Shimano HBTC50015BB, 15x110mm |
| Zadní náboj | Shimano FHTC500HMBB, 148x12mm |
| Výplet | Stainless Black |
| Ráfky | Syncros X18 Disc |
| Přední plášť | Schwalbe Advancer 60-622 Wired |
| Zadní plášť | Schwalbe Advancer 60-622 Wired |
| Světla | Front Lezyne Hecto E65 Rear Super Bright Lezyne Light |
| Nosič & blatníky | Racktime Micro Rack SnapIt 2.0 27KG |
| Pedály | VP VPE-506 |
| Extra | Curana alloy profile Fender Ursus Kickstand |
| Hmotnost v kg (cca) | 28.2 |
| Hmotnost v lb (cca) | 62.17 |
| Max. systémová hmotnost | 160kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| XS | S | M | L | XL | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 66.0 ° | 66.0 ° | 67.0 ° | 67.0 ° | 67.0 ° | |||||||||||||
| B | head tube length / hauteur tube de direction | 130.0 mm | 5.1 in | 130.0 mm | 5.1 in | 130.0 mm | 5.1 in | 140.0 mm | 5.5 in | 150.0 mm | 5.9 in | ||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 580.0 mm | 22.8 in | 580.0 mm | 22.8 in | 600.0 mm | 23.6 in | 620.0 mm | 24.4 in | 640.0 mm | 25.2 in | ||||||||
| D | standover height / hauteur entre-jambes | 773.1 mm | 30.4 in | 788.2 mm | 31.0 in | 789.3 mm | 31.1 in | 826.6 mm | 32.5 in | 861.4 mm | 33.9 in | ||||||||
| E | BB offset / deport axe de pédalier | 63.0 mm | 2.5 in | 63.0 mm | 2.5 in | 63.0 mm | 2.5 in | 63.0 mm | 2.5 in | 63.0 mm | 2.5 in | ||||||||
| F | BB height / hauteur axe de pédalier | 312.0 mm | 12.3 in | 312.0 mm | 12.3 in | 312.0 mm | 12.3 in | 312.0 mm | 12.3 in | 312.0 mm | 12.3 in | ||||||||
| G | wheel base / entraxe roues | 1,213.1 mm | 47.8 in | 1,213.1 mm | 47.8 in | 1,221.1 mm | 48.1 in | 1,242.7 mm | 48.9 in | 1,264.3 mm | 49.8 in | ||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 370.0 mm | 14.6 in | 400.0 mm | 15.7 in | 440.0 mm | 17.3 in | 490.0 mm | 19.3 in | 540.0 mm | 21.3 in | ||||||||
| J | seat angle / angle tube de selle | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° | |||||||||||||
| K | chainstay / longueur des bases | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | ||||||||
| L | reach / reach | 412.2 mm | 16.2 in | 412.2 mm | 16.2 in | 430.8 mm | 17.0 in | 448.5 mm | 17.7 in | 466.2 mm | 18.4 in | ||||||||
| M | stack / stack | 663.0 mm | 26.1 in | 663.0 mm | 26.1 in | 668.6 mm | 26.3 in | 677.8 mm | 26.7 in | 687.0 mm | 27.0 in | ||||||||
| N | stem length / longueur potence | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | ||||||||
| 0 | trail / chasse au sol | 111.1 mm | 4.4 in | 111.1 mm | 4.4 in | 103.8 mm | 4.1 in | 103.8 mm | 4.1 in | 103.8 mm | 4.1 in |
