Vysoce výkonný a pohodlný v náročném terénu, ale zároveň je připravený i na cestu do obchodu. To je AXIS FS eRide, dokonalé elektrické dobrodružné kolo s celoodpružením. S Axis FS je jediným limitem vaše představivost.

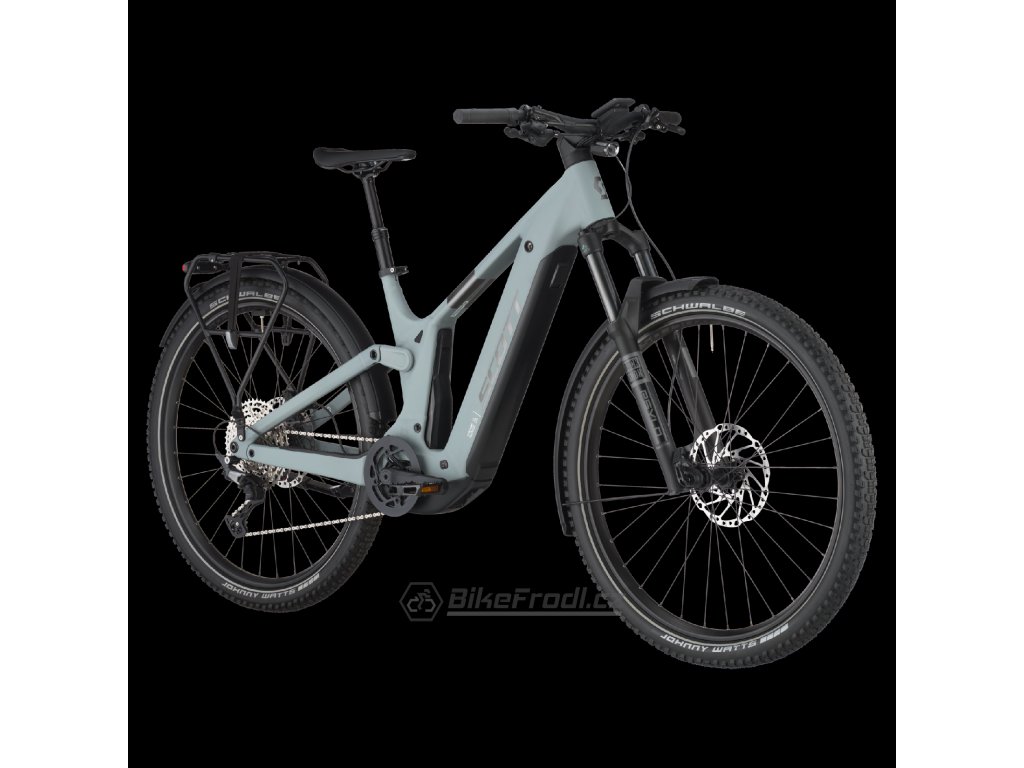

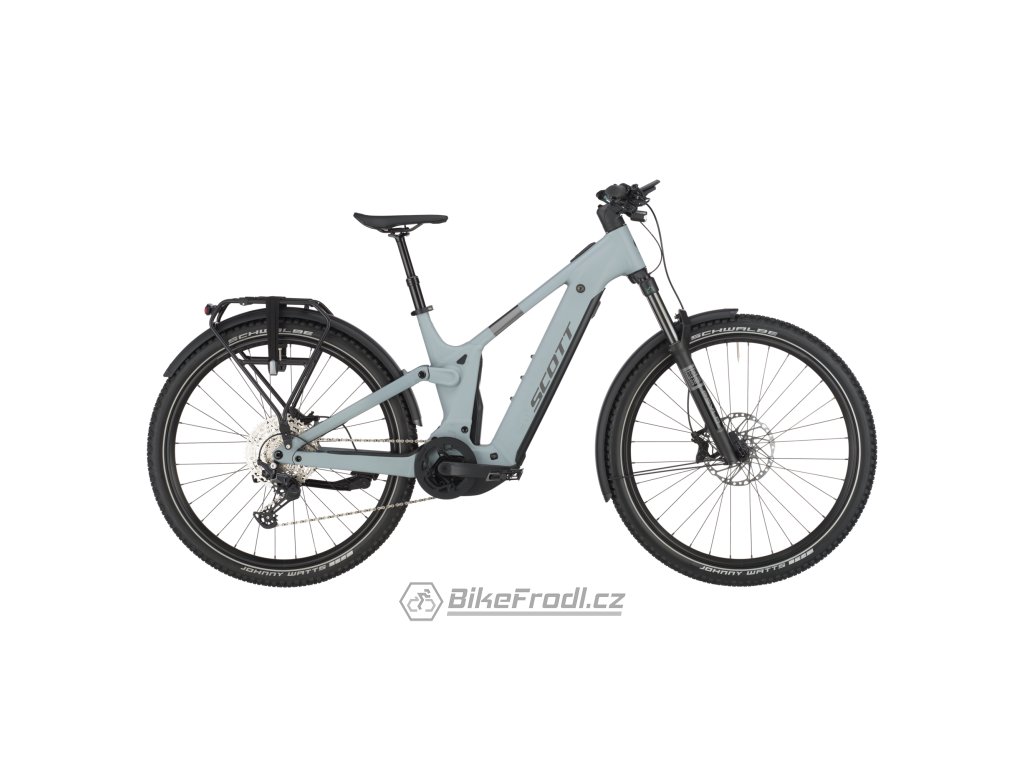

Trekingové elektrokolo SCOTT Axis FS 20
Objevujte neznámá místa. Na ZBRUSU NOVÉM celoodpruženém elektrokole Axis FS eRIDE. Je mimořádně schopné a pohodlné i v drsném terénu a zároveň připravené kdykoli odvézt nákup. Vybaveno nejnovější pohonnou jednotkou Bosch Performance CX a 800Wh baterií. Axis FS vás doveze za vysněnými cíli.
Klíčové vlastnosti
- Vidlice Rock Shox Psylo, specifická pro e-kola, zdvih 140 mm
- Tlumič X-Fusion Nude, vidlice se zdvihem 140 mm
- SCOTT TwinLoc Remote
- Shimano Deore 12 rychlostí
- Diskové brzdy Shimano
- Hliníkové blatníky Curana
- Přední a zadní světlo Lezyne
- Kompatibilní se systémem Racktime Snap It 2.0, nosnost 15 kg
- Curana alloy fenders, Lezyne front and rear lights
- Racktime carrier Snap It 2.0 15KG
Technologie
AXIS FS FRAME
The Axis FS features the same frame as the alloy version of the Patron eRide, one of our highest end eMTB’s. Subjected to the highest degree of testing and numerous iterations in the development phase, Axis FS exhibits the perfect blend of stiffness, strength and weight distribution resulting in an unmatched ride feel.

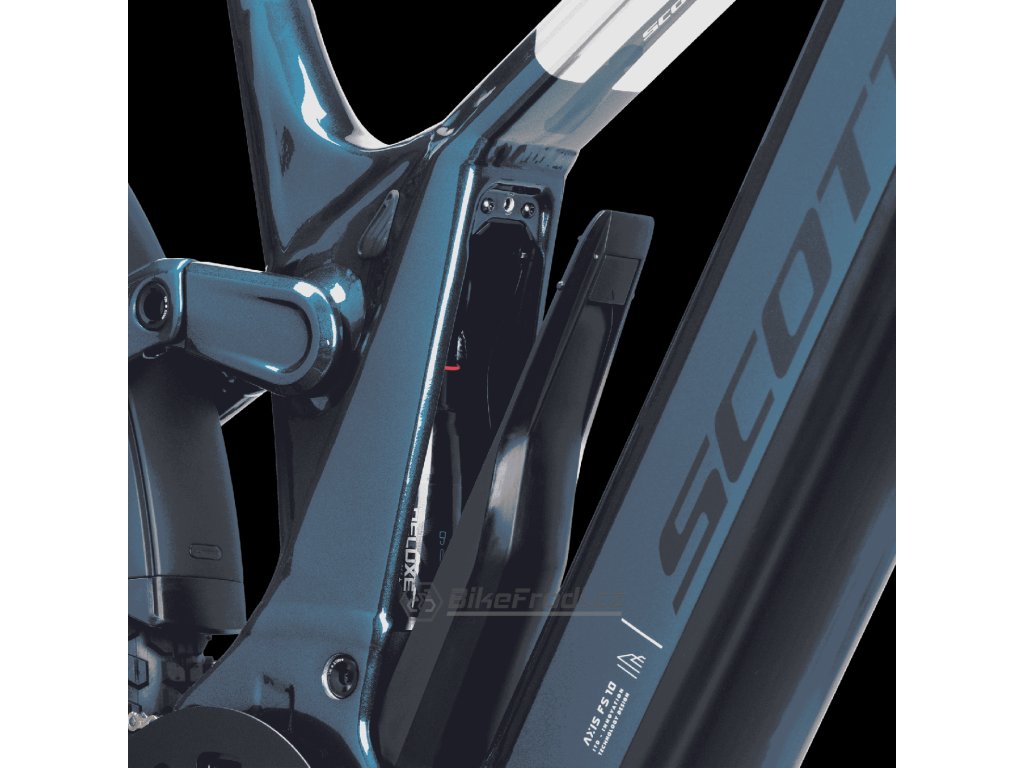

INTEGRATED SUSPENSION TECHNOLOGY
The Axis FS’s rear suspension is integrated into the frame. Not only does this give the bike a clean look, but it also has allowed us to achieve desired shock characteristics while granting us the space to strategically position elements such as the motor, the battery and a water bottle. Riding a range of varied terrain? The TracLoc remote on the handlebar alters suspension characteristics with just a touch of the thumb allowing you to adapt your suspension whenever you need it.
BOSCH E-BIKE SYSTEM
Reliability is key when it comes to e-Bike systems and Bosch is among the leaders. With the new Performance CX drive unit of 85 Nm, paired with the powerful, integrated PowerTube 800 WH battery, you can simply enjoy your ride. And if that’s still not enough, the e-bike is compatible with the Bosch PowerMore 250 range extender.
140MM TRAVEL AND DROPPER SEAT-POST
The Axis FS is a versatile e-bike, with the capability to go on trails. Equipped with a 140mm front and rear travel, a dropper post to raise and lower your saddle more easily, and mtb tires, your ride is guaranteed to be a comfortable one both on the trail and in the city.

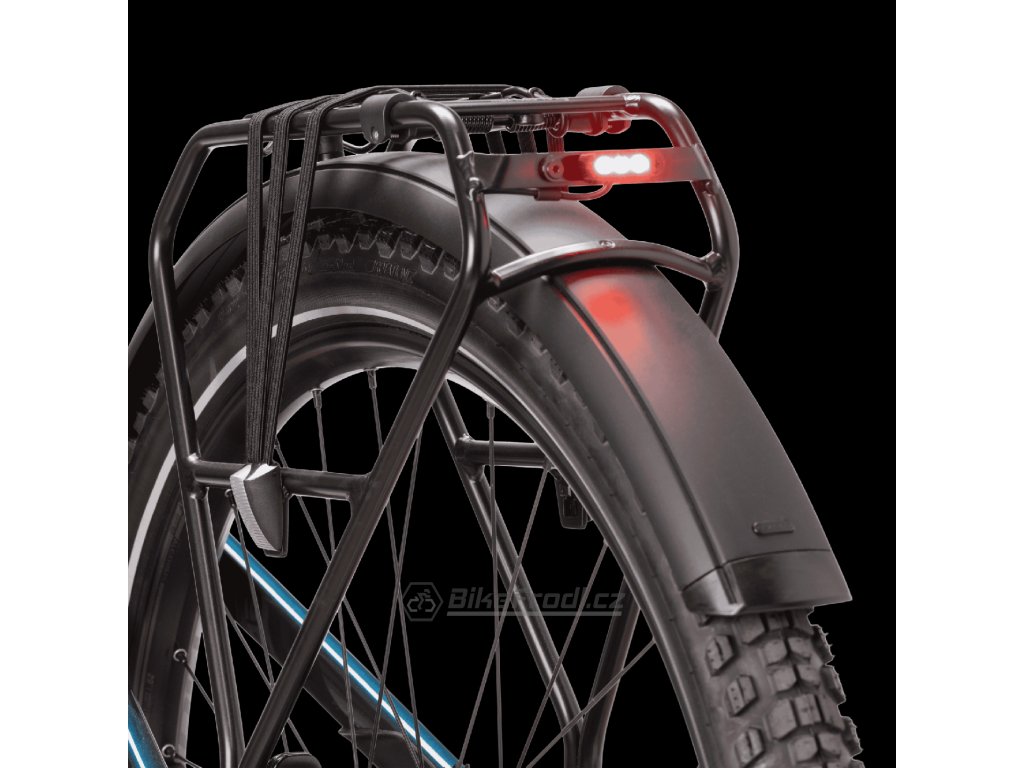

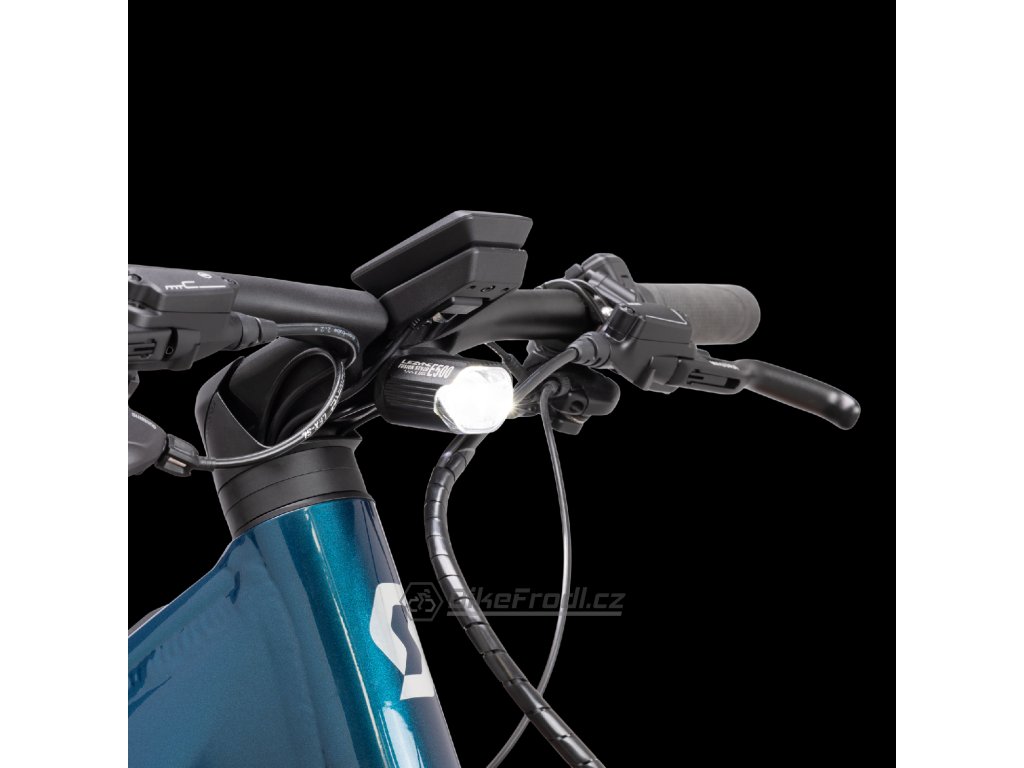

REAR RACK, FENDERS, AND POWERFUL LIGHTS
The Axis FS is equipped with all the features you need from your everyday companion, whether on trails or for grocery shopping. Strong Curana alloy fenders prevent you from getting dirty, powerful front and rear lights that allow you to see and be seen, a rear- rack compatible with SNAP IT 2.0 that supports up to 15kg.
Technická specifikace
| Rám | Alloy S-XL=29" Integrated Suspension Technology Virtual 4 Link kinematic, Adjustable head angle Syncros Cable Integration System Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready |
| Zdvih | Front: 140mm, Rear: 140mm |
| Vidlice | RockShox Psylo Silver RC Solo Air, E-Bike, Remote Motion Control Damper 2P, QR Axle 15x110mm axle 44mm offset, tapered steerer, 140mm travel |
| Tlumič | X-Fusion Nude RLX Trunnion 185x47 5mm, 2P, Remote Ready, 140mm Travel |
| Ovládací systém | SCOTT TwinLoc Remote 2P |
| Pohonná jednotka | Bosch Performance Line CX (BDU384Y) EU: 25kmh |
| Baterie | PowerTube 800Wh |
| Displej | Bosch System Controller Intuvia 100 Mini remote |
| Nabíječka | 2A Charger |
| Přehazovačka | Shimano Deore RD M6100SGS 12 Speed |
| Přesmykač | SCOTT Chainguide |
| Řazení | Shimano Deore SL-M6100RA |
| Kliky | FSA CK-745 165mm |
| Převodník | FSA 36T w/Chain Guard |
| Řetěz | KMC E12S |
| Kazeta | Shimano CS-M6100-12 10-51T |
| Brzdy | Shimano BR-MT520 4 Piston Disc Brakes |
| Rotor | Front: SM-RT64 CL 203mm, Rear: SM-RT64 CL 203mm |
| Řidítka | Syncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount and Intuvia 100 mount |
| Sedlovka | Syncros Duncan Dropper Post 2.5 31.6mm, S&M 361mm, L&XL 403mm |
| Sedlovka | Syncros Tofino E 2.0 |
| Hlavové složení | Syncros - Acros Angle adjust & Cable Routing HS System Stainless, +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Přední náboj | Formula CL-811, 15x110mm |
| Zadní náboj | Formula CL-148M, Boost 12x148mm |
| Výplet | Sapim double butted |
| Ráfky | Syncros MD30, 32H, 30mm, Pin Joint Tubeless ready |
| Přední plášť | Schwalbe Advancer 60-622 Wired |
| Zadní plášť | Schwalbe Advancer 60-622 Wired |
| Světla | Lezyne Fusion E550SM front light Rear Lezyne Superbright |
| Nosič & blatníky | Racktime SnapIt 2.0 15KG |
| Pedály | VP VPE-506 |
| Hmotnost v kg (cca) | 28.8 |
| Hmotnost v lb (cca) | 63.49 |
| Max. systémová hmotnost | 130kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| S | M | L | XL | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 65.4 ° | 65.4 ° | 65.3 ° | 65.3 ° | ||||||||||||||
| B | head tube length / hauteur tube de direction | 120.0 mm | 4.7 in | 125.0 mm | 4.9 in | 135.0 mm | 5.3 in | 145.0 mm | 5.7 in | ||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 578.2 mm | 22.8 in | 604.5 mm | 23.8 in | 625.4 mm | 24.6 in | 655.8 mm | 25.8 in | ||||||||||
| D | standover height / hauteur entre-jambes | 715.0 mm | 28.1 in | 715.0 mm | 28.1 in | 725.0 mm | 28.5 in | 728.0 mm | 28.7 in | ||||||||||
| E | BB offset / deport axe de pédalier | -37.3 mm | -1.5 in | -37.2 mm | -1.5 in | -37.0 mm | -1.5 in | -36.9 mm | -1.5 in | ||||||||||
| F | BB height / hauteur axe de pédalier | 339.7 mm | 13.4 in | 339.8 mm | 13.4 in | 340.0 mm | 13.4 in | 340.1 mm | 13.4 in | ||||||||||
| G | wheel base / entraxe roues | 1,218.5 mm | 48.0 in | 1,240.7 mm | 48.8 in | 1,270.5 mm | 50.0 in | 1,304.3 mm | 51.4 in | ||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 405.0 mm | 15.9 in | 435.0 mm | 17.1 in | 470.0 mm | 18.5 in | 500.0 mm | 19.7 in | ||||||||||
| J | seat angle / angle tube de selle | 77.6 ° | 77.4 ° | 77.3 ° | 77.3 ° | ||||||||||||||
| K | chainstay / longueur des bases | 453.5 mm | 17.9 in | 453.5 mm | 17.9 in | 453.5 mm | 17.9 in | 453.5 mm | 17.9 in | ||||||||||
| L | reach / reach | 440.5 mm | 17.3 in | 460.3 mm | 18.1 in | 485.7 mm | 19.1 in | 515.1 mm | 20.3 in | ||||||||||
| M | stack / stack | 641.6 mm | 25.3 in | 646.0 mm | 25.4 in | 654.8 mm | 25.8 in | 663.5 mm | 26.1 in | ||||||||||
| N | stem length / longueur potence | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | ||||||||||
| 0 | trail / chasse au sol | 123.9 mm | 4.9 in | 124.0 mm | 4.9 in | 124.2 mm | 4.9 in | 124.4 mm | 4.9 in | ||||||||||
| P | fork length / longueur fourche | 561.0 mm | 22.1 in | 561.0 mm | 22.1 in | 561.0 mm | 22.1 in | 561.0 mm | 22.1 in | ||||||||||
| Q | Maximum Seatpost Insertion / Insertion maximale de la tige de selle | 200.0 mm | 7.9 in | 230.0 mm | 9.1 in | 265.0 mm | 10.4 in | 295.0 mm | 11.6 in | ||||||||||
| R | Crank Length / longueur de manivelle | 165.0 mm | 6.5 in | 165.0 mm | 6.5 in | 165.0 mm | 6.5 in | 165.0 mm | 6.5 in |
