Sub eRIDE. Nemyslete už na šílené dopravní zácpy, nedostatková volná parkovací místa a nemožně prudké kopce! Začněte si každodenní dojíždění užívat, těšte se, že budete pochůzky vyřizovat na kole, žijte své město naplno! Městská elektrokola SCOTT konstruujeme jako silná, pohodlná a odolná, aby byla ideální pro všechny, kteří chtějí stylový produkt špičkové kvality s výkonem nejvyšší úrovně.

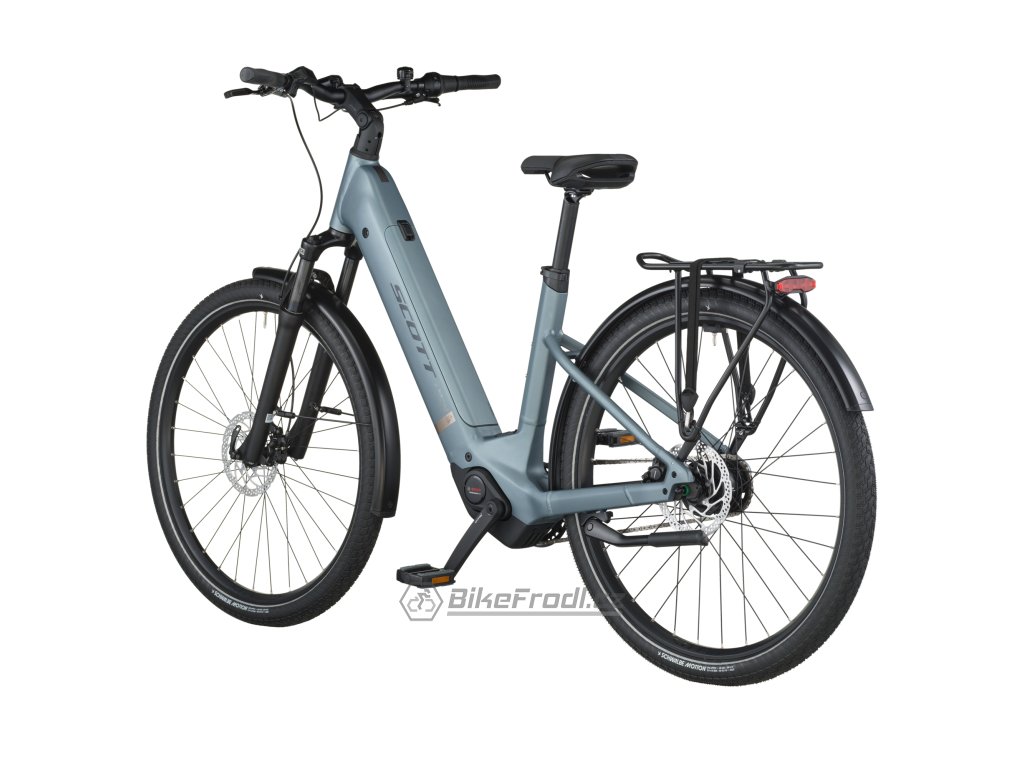

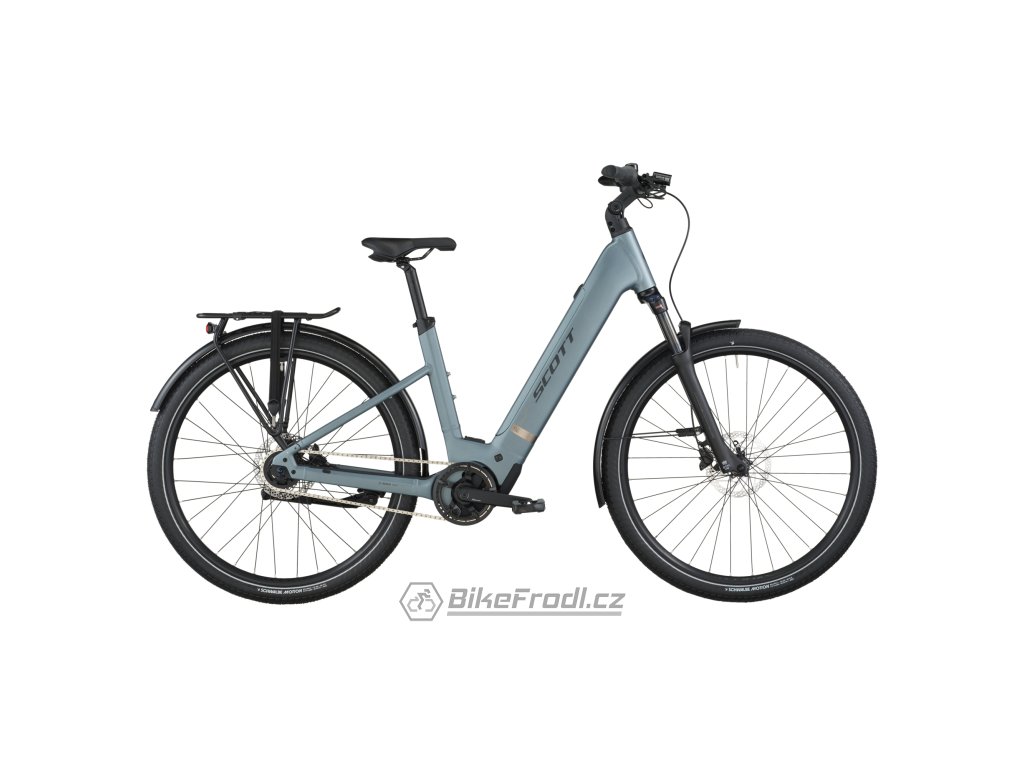

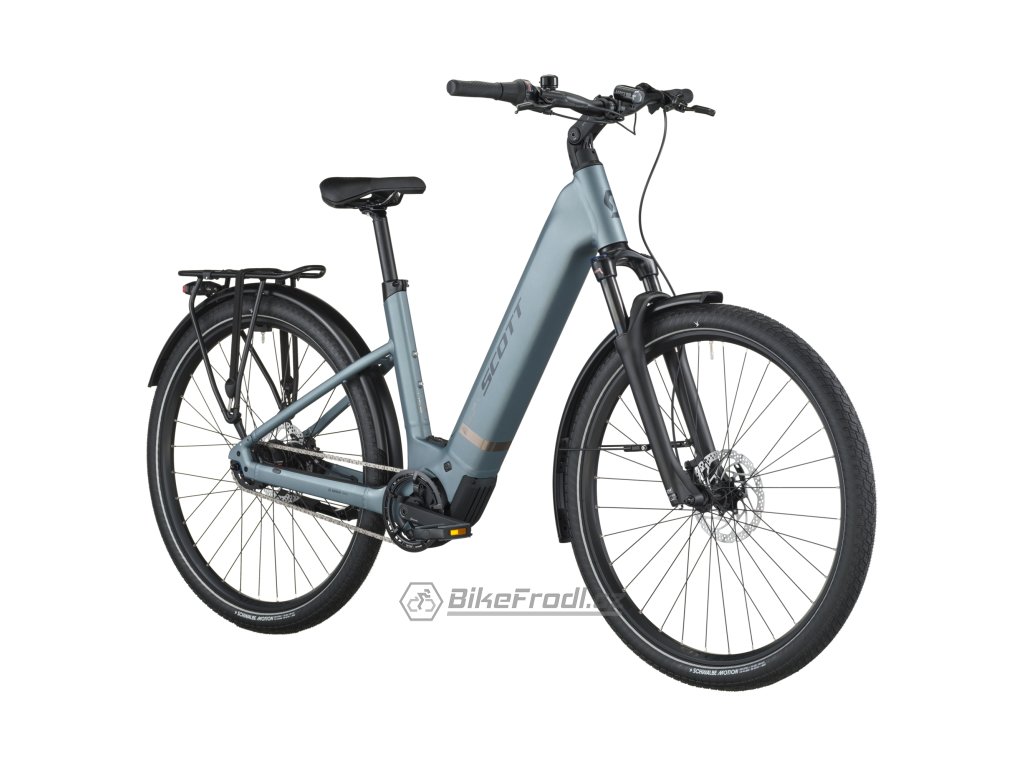

Městské elektrokolo SCOTT Sub Tour 40 Wave
Městské elektrokolo Sub Tour 40 Wave kombinuje finanční dostupnost, pohodlí a plynulý výkon. Nechte auto doma, užijte si město na kole.
Klíčové vlastnosti
- Hliníkový rám SUB eRIDE

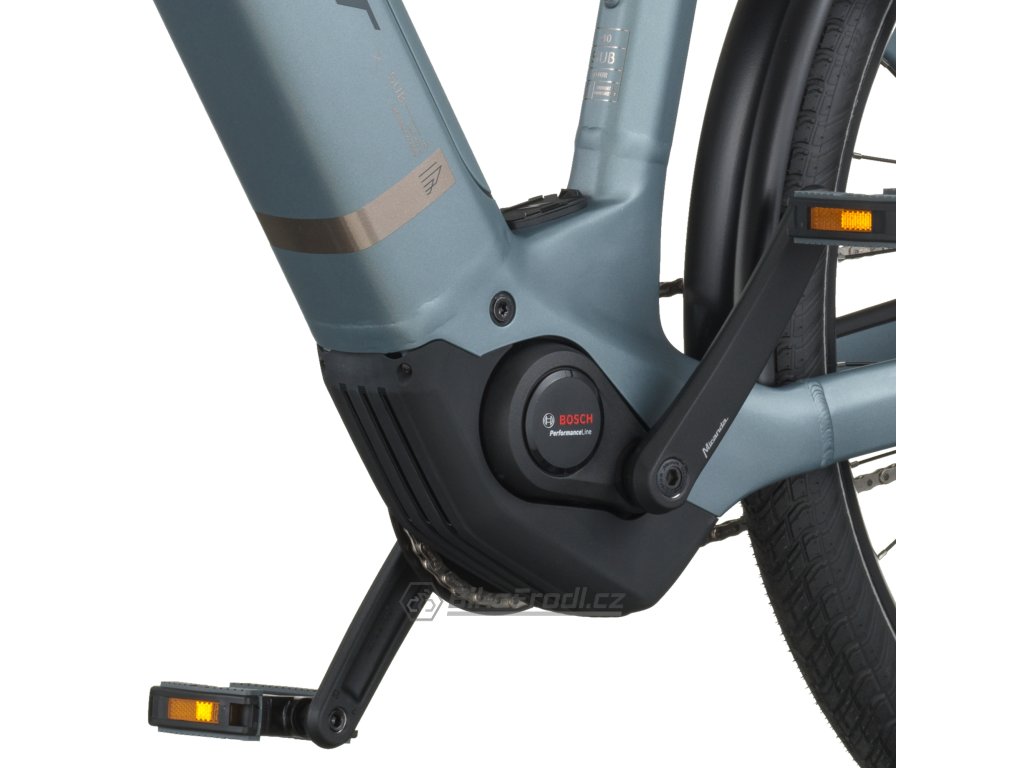

- Bosch Performance, PT540 SmartSystem Engine System

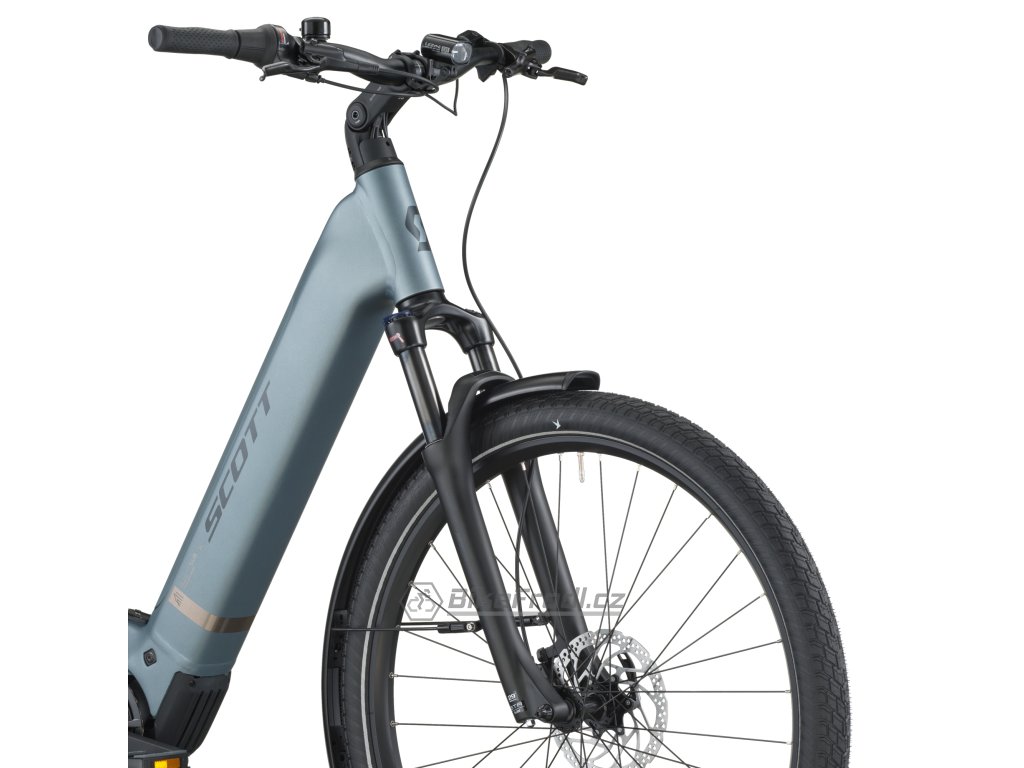

- Vidlice SR Suntour, zdvih 100 mm
- Převodovka Shimano Nexus Internal 5e v zadním náboji, řemenový pohon
- Diskové brzdy Shimano
- Pláště Schwalbe Big Apple
- Přední světlo Lezyne / zadní integrovaná světla Syncros, hliníkové blatníky Curana
- Kompatibilní s adaptérem na nosič Racktime Snap It 2.0, nosnost 25 kg
Technologie
HEAVY-DUTY REAR RACK AND POWERFUL LIGHTS
Planning to carry a heavy load? No problem. The e-bike comes with a heavy-duty rear rack that supports up to 27 kg, perfect for a kids’ seat as well. Compatible with the Racktime Snap it 2.0 system adapter, the bike also features a powerful Lezyne front light and Syncros rear light: the rear light, integrated into the rear rack, is still visible with a kids’ seat mounted and thanks to its wraparound design, ensures visibility from a broader spectrum of angles.

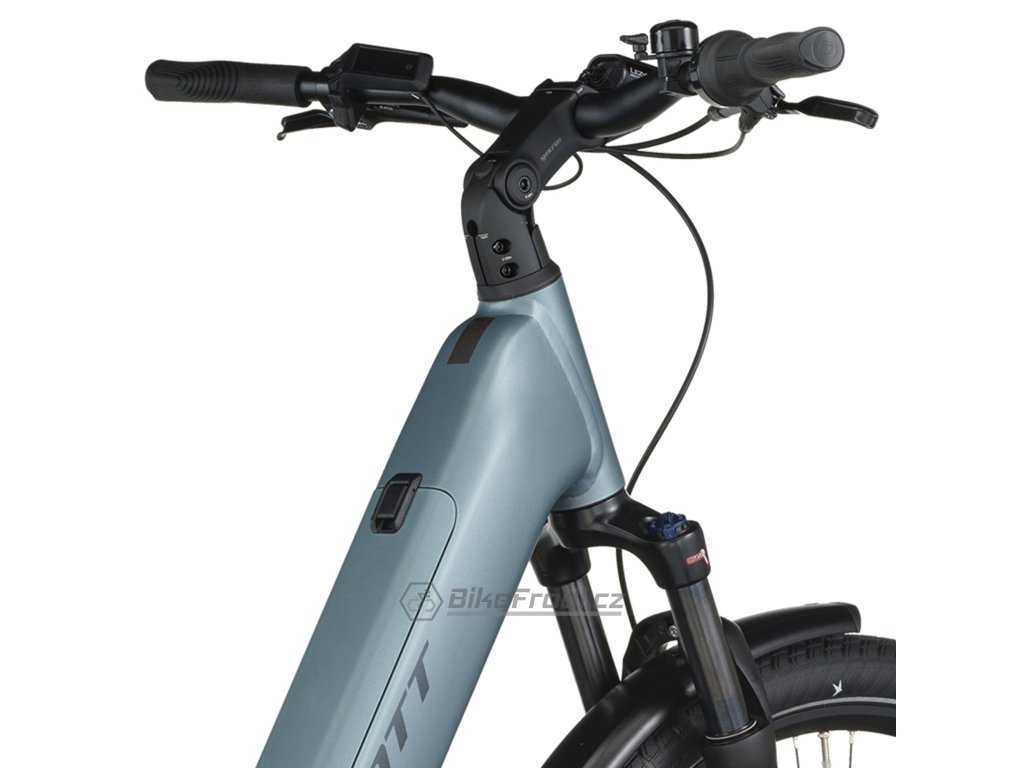

SYNCROS COCKPIT
The new Syncros cockpit, equipped with an adjustable stem, gives the handlebar a sleek and attractive look.

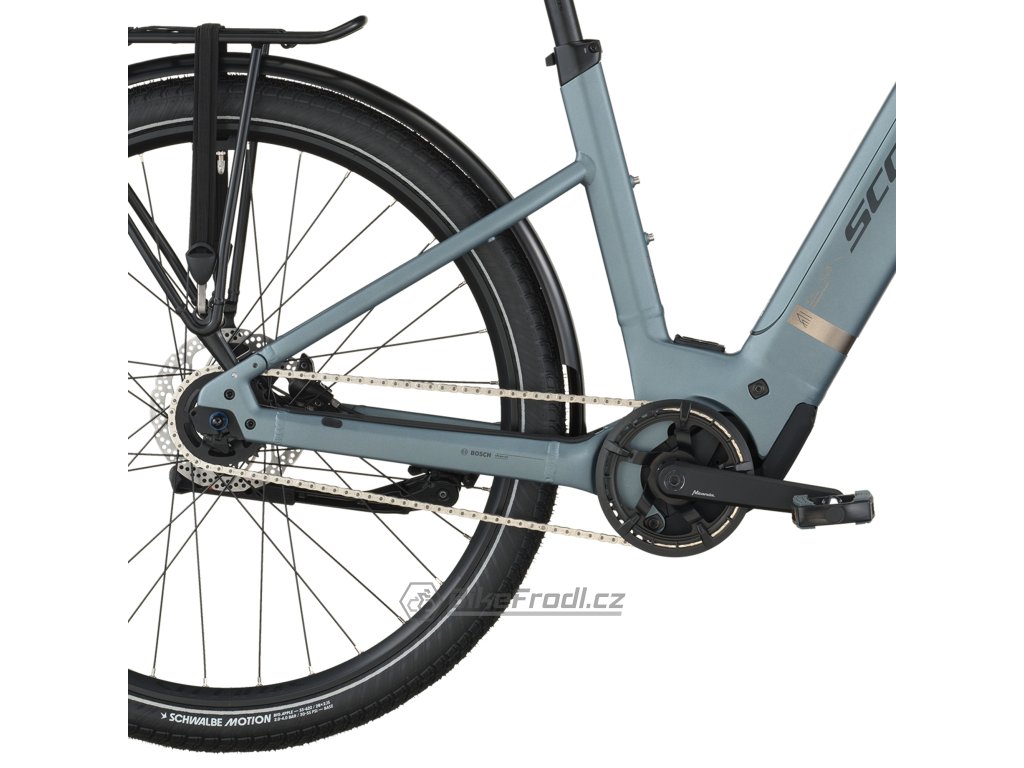

BELT AND NEXUS INTERNAL GEARED HUB
SUB features a belt-driven drivetrain and Shimano Nexus internal gear hub. This is the perfect combination for minimal maintenance, less noise and longer durability. A belt drive works without oil, meaning it needs to be replaced less often, no more getting dirty and no rust on the chain – a win-win-win situation!The Shimano Nexus hub shifts smoothly and, as it is protected in the hub housing the gear, it is easier to maintain.
Technická specifikace
| Rám | Alloy S-XL=29", 6061 Alloy custom butted tubing Top extraction battery UDH Interface, 135mm with 46mm Beltline |
| Zdvih | 100mm |
| Vidlice | SR Suntour NVX 32 5TA NLO Coil, Tapered, 5x100 TA, Lock Out, 100mm Travel |
| Pohonná jednotka | Bosch Performance Line (BDU346Y) EU: 25kmh |
| Baterie | PowerTube 540Wh |
| Displej | Bosch Purion 200 |
| Nabíječka | 2A Charger |
| Řazení | Shimano Nexus Inter 5e |
| Kliky | Miranda Virage 170mm |
| Převodník | Miranda 38T |
| Řetěz | KMC Z1 |
| Kazeta | Shimano CSC700027 27T |
| Brzdy | Shimano BR-MT200 Disc |
| Rotor | Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm |
| Řidítka | Syncros UC3.0 680mm, Rise 12mm, Backsweep 15° |
| Představec | Syncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount |
| Sedlovka | Syncros 3.0, 31.6mm, 350mm |
| Sedlovka | Syncros Capilano |
| Hlavové složení | Acros, 1.5"- 1.5" semi integ. OD 50/61mm, ID 44/55mm |
| Přední náboj | Shimano HBQC400B58LL, 5x100mm |
| Zadní náboj | Shimano Nexus Inter 5e |
| Výplet | Black Spokes |
| Ráfky | Syncros X18 Disc |
| Přední plášť | Schwalbe Big Apple Performance, 55-622 |
| Zadní plášť | Schwalbe Big Apple Performance, 55-622 |
| Světla | Front Lezyne Hecto E65 Rear Super Bright Lezyne Light |
| Nosič & blatníky | Racktime carrier SnapIt 2.0 25KG |
| Pedály | Marwi SP-828 |
| Hmotnost v kg (cca) | 29.7 |
| Hmotnost v lb (cca) | 65.48 |
| Max. systémová hmotnost | 160kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| S / 900 | M / 900 | L / 900 | XL / 900 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 68.2 ° | 68.2 ° | 68.2 ° | 68.2 ° | ||||||||||||||
| B | head tube length / hauteur tube de direction | 160.0 mm | 6.3 in | 160.0 mm | 6.3 in | 170.0 mm | 6.7 in | 170.0 mm | 6.7 in | ||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 575.0 mm | 22.6 in | 595.0 mm | 23.4 in | 615.0 mm | 24.2 in | 615.0 mm | 24.2 in | ||||||||||
| D | standover height / hauteur entre-jambes | 638.0 mm | 25.1 in | 633.0 mm | 24.9 in | 630.0 mm | 24.8 in | 630.0 mm | 24.8 in | ||||||||||
| E | BB offset / deport axe de pédalier | -75.5 mm | -3.0 in | -75.5 mm | -3.0 in | -75.5 mm | -3.0 in | -75.5 mm | -3.0 in | ||||||||||
| F | BB height / hauteur axe de pédalier | 299.5 mm | 11.8 in | 299.5 mm | 11.8 in | 299.5 mm | 11.8 in | 299.5 mm | 11.8 in | ||||||||||
| G | wheel base / entraxe roues | 1,190.0 mm | 46.9 in | 1,210.0 mm | 47.6 in | 1,232.0 mm | 48.5 in | 1,232.0 mm | 48.5 in | ||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 440.0 mm | 17.3 in | 480.0 mm | 18.9 in | 520.0 mm | 20.5 in | 560.0 mm | 22.0 in | ||||||||||
| J | seat angle / angle tube de selle | 76.9 ° | 76.9 ° | 76.9 ° | 76.9 ° | ||||||||||||||
| K | chainstay / longueur des bases | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | ||||||||||
| L | reach / reach | 413.0 mm | 16.3 in | 433.0 mm | 17.0 in | 450.0 mm | 17.7 in | 450.0 mm | 17.7 in | ||||||||||
| M | stack / stack | 696.0 mm | 27.4 in | 688.0 mm | 27.1 in | 705.0 mm | 27.8 in | 705.0 mm | 27.8 in | ||||||||||
| N | stem length / longueur potence | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | ||||||||||
| 0 | trail / chasse au sol | 100.0 mm | 3.9 in | 100.0 mm | 3.9 in | 100.0 mm | 3.9 in | 100.0 mm | 3.9 in |
