Elektrické stylové městské kolo navržené pro snadnou a bezproblémovou jízdu ve městě. To je Passage eRIDE. Je vybaveno lehkým motorem Bosch SX a baterií o kapacitě 400 Wh, které vám při jízdě dodávají pocit beztíže a zároveň vám poskytují sílu jet dál. Vaše cesta městem se právě stala snazší.

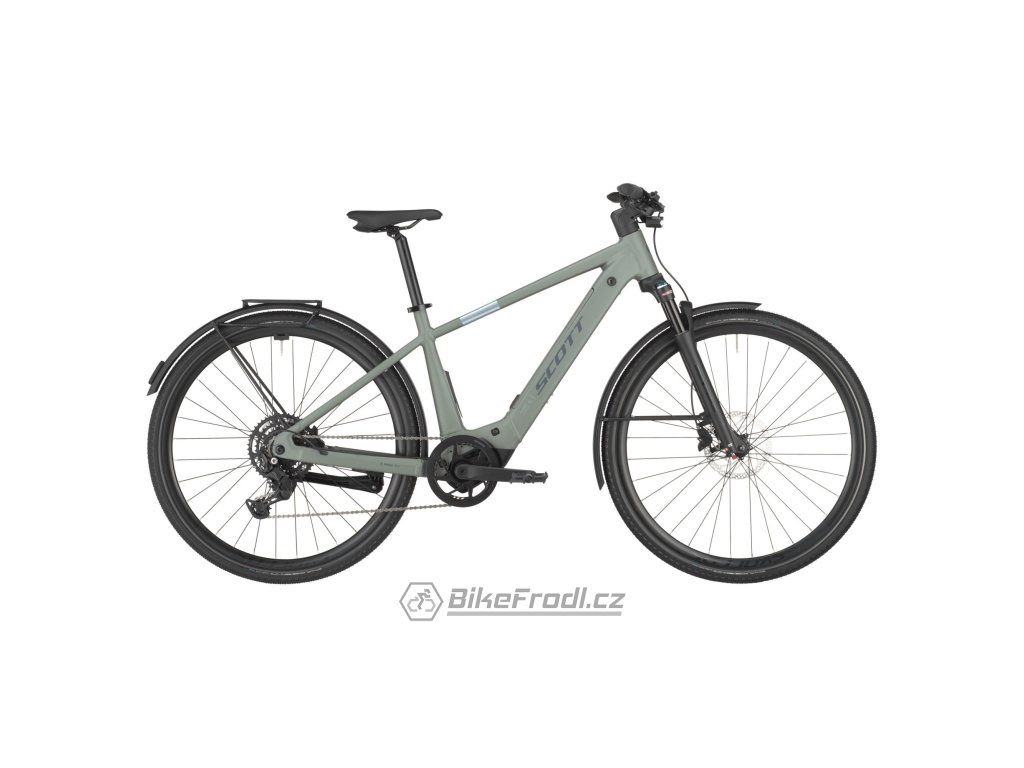

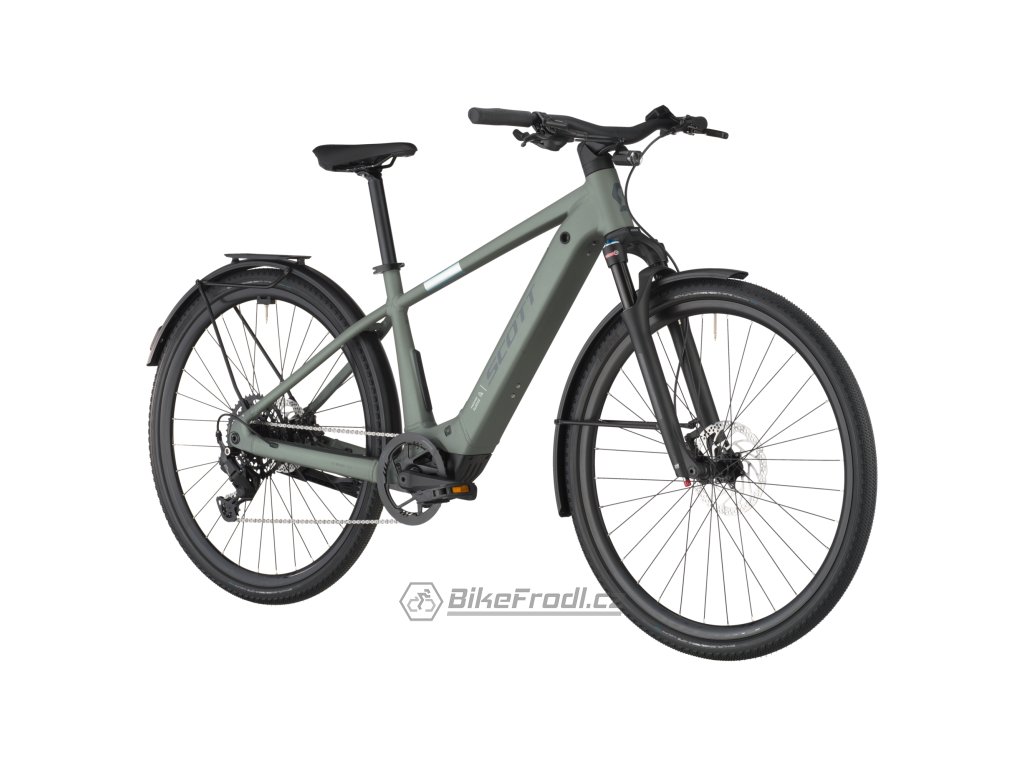

Městské elektrokolo SCOTT Passage 30
Jezdit každý den je naprostá pohoda.
Klíčové vlastnosti
- Shimano Cues 9 rychlostí
- Přední světlo Lezyne / zadní integrované Syncros
- Nosič Racktime Micro, kompatibilní se systémem Snap it 2.0, nosnost 8 kg
- Diskové brzdy Shimano
Technologie

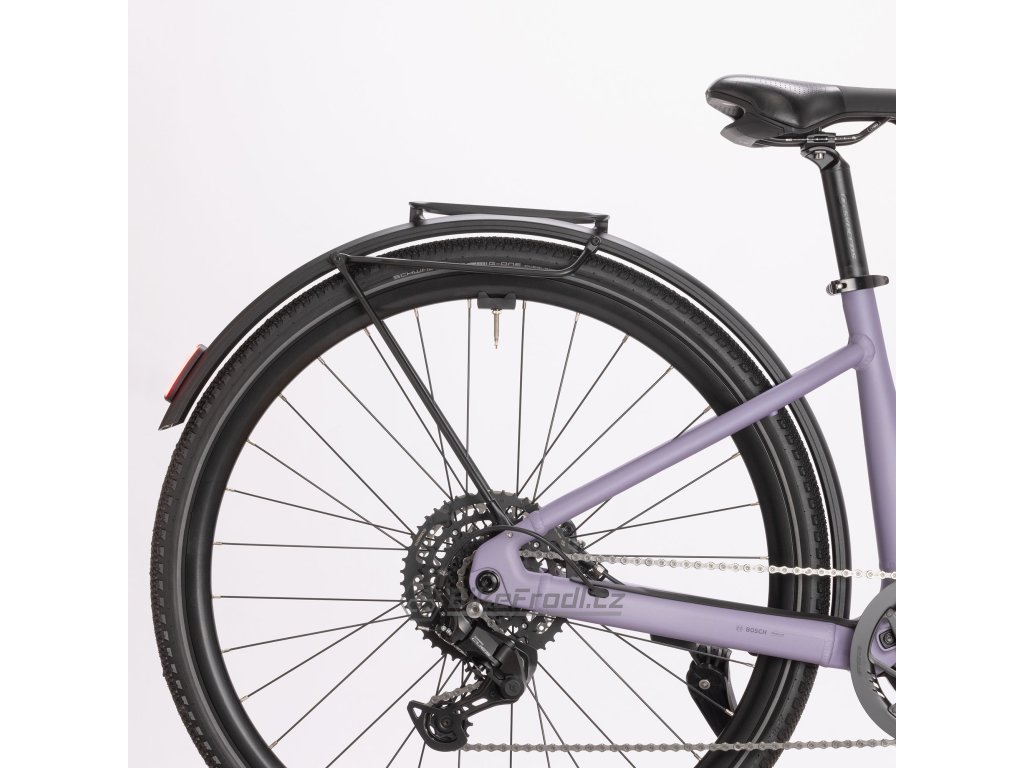

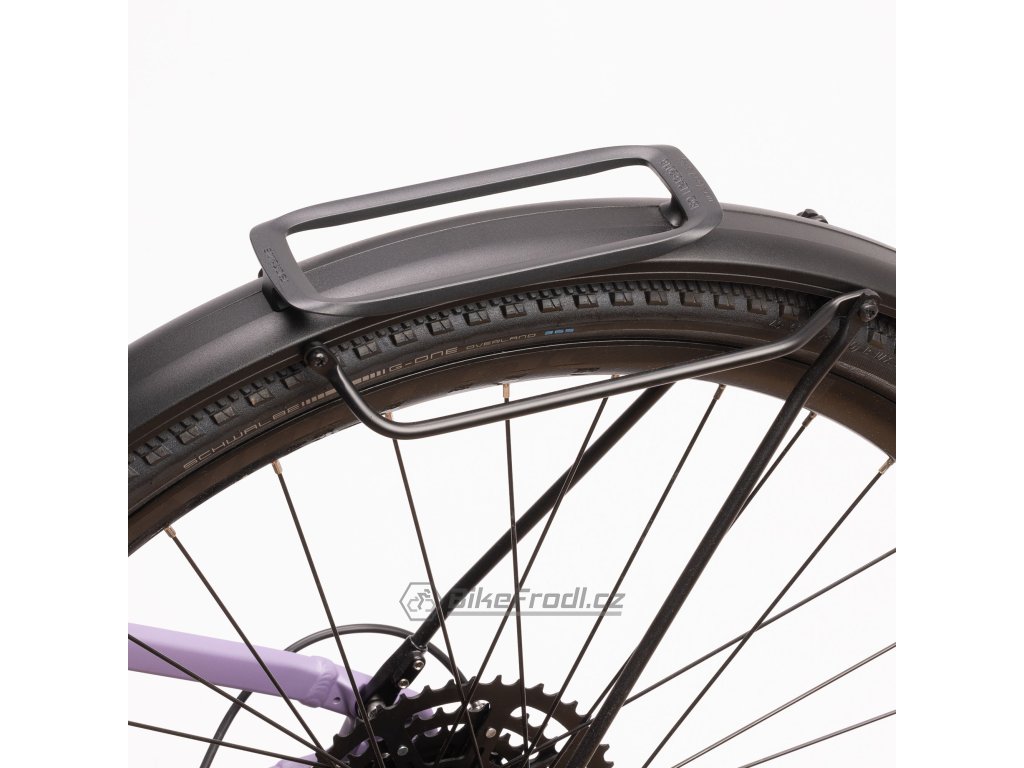

DESIGN REAR RACK
Lightweight is key on an e-bike, and the new minimalistic Racktime rear rack that can support 8kg + 8kg side bags integrated with fenders and Supernova rear light, not only achieve this goal, but it gives Passage a stylish look.
BOSCH SX - 400 WH BATTERY
Reliability is key when it comes to e-Bike systems and Bosch is among the leaders. The Performance Line SX drive unit with 55Nm – the lightest drive unit from Bosch - is extremely compact, sporty, and paired with the integrated 400 WH CompactTube battery make Passage a lightweight, yet powerful driven e-bike, easy to carry on the stairs. The e-bike is also compatible with the Bosch PowerMore 250 range extender.

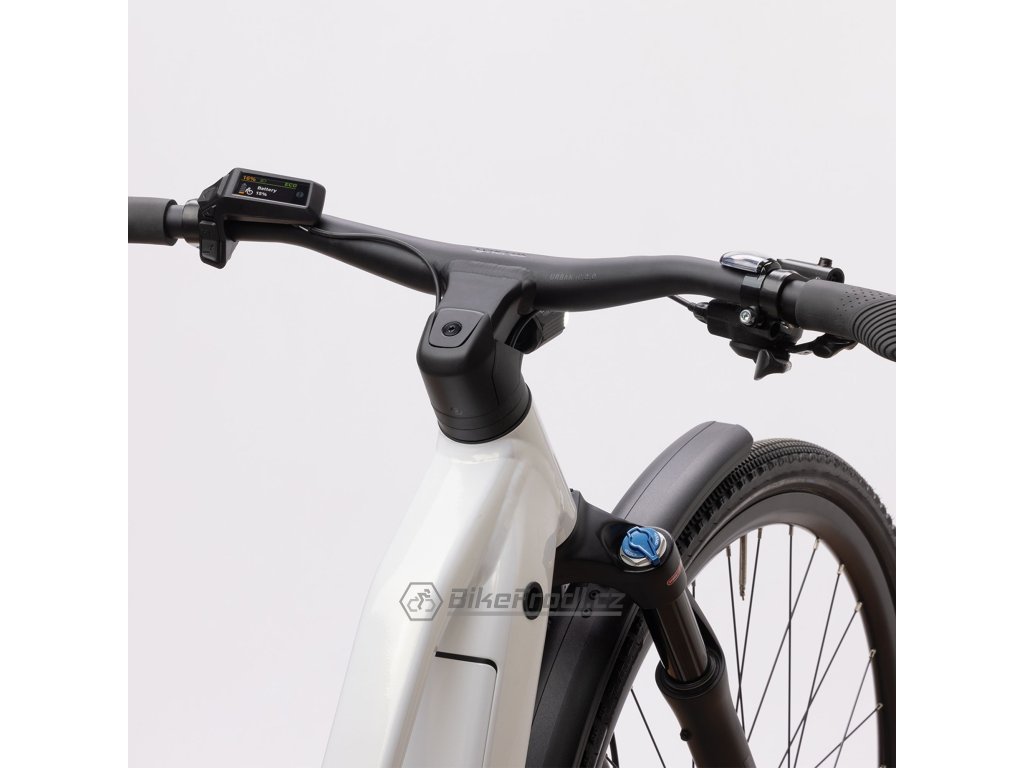

SYNCROS ALLOY COCKPIT
The new Syncros combo features a single-piece design with an integrated display, front light and cables, creating a sleek and aesthetically appealing handlebar.
TWO FRAME SHAPES
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a step-through. Pick the one that best suits you.
Technická specifikace
| Rám | Alloy S-XL=29" / 6061 Alloy custom butted tubing Top extraction battery |
| Zdvih | 75mm |
| Vidlice | SR Suntour NRX32-E Air LO R / Tapered / 15x100 bolt Axle / Remote Lock Out / Steel Steerer / 75mm Travel |
| Pohonná jednotka | Bosch Performance SX EU: 25kmh |
| Baterie | Compact Tube 400Wh |

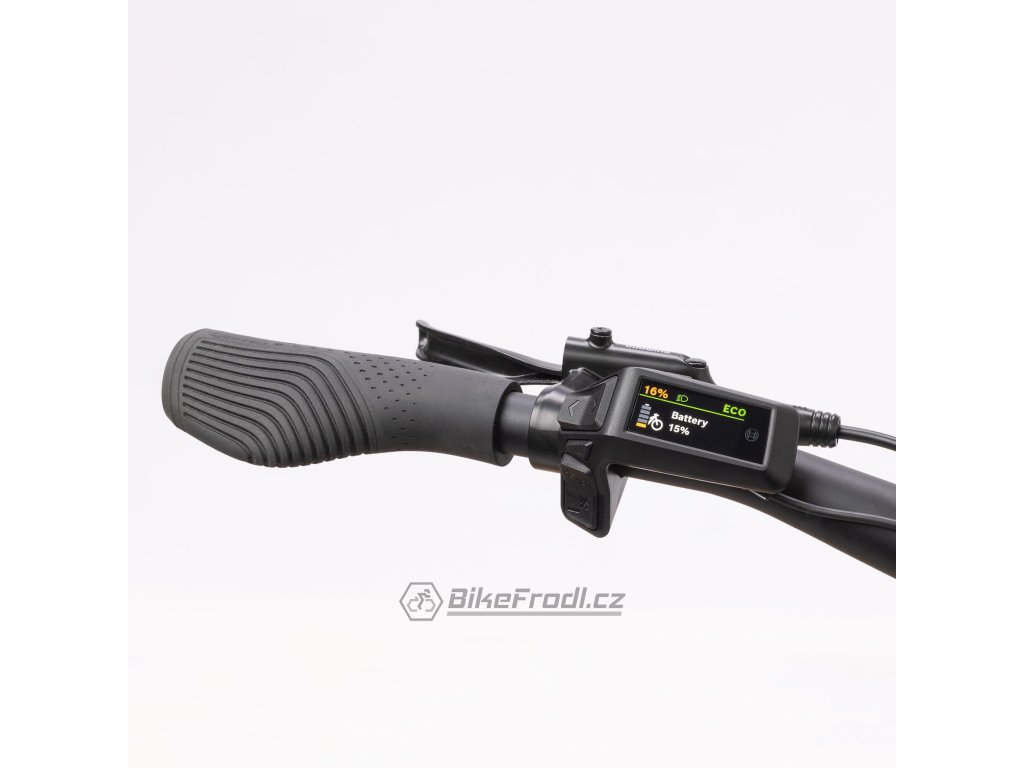

| Displej | Bosch Purion 200 |
| Nabíječka | 2A Charger |
| Přehazovačka | Shimano CUES RDU4000GS 9 Speed |
| Řazení | Shimano CUES SLU4009RC / 9 Speed |
| Kliky | FSA CK-220 170mm |
| Vodítko řetězu | Syncros |
| Převodník | FSA 38T |
| Řetěz | Shimano LG500 |
| Kazeta | Shimano LG300 / 11-46T |
| Brzdy | Shimano BR-MT200 Disc |
| Rotor | Front: SM-RT30 CL 180mm / Rear: SM-RT30 CL 160mm |
| Řidítka | Syncros Welded Alloy Combo 680mm / Backsweep 9° / Upsweep 8° / 70mm / with front Light mount |
| Sedlovka | Syncros M3.0 / 31.6 |
| Sedlovka | Syncros Capilano |
| Hlavové složení | Acros / 1.5"- 1.5" semi integ. OD 50/61mm / ID 44/55mm |
| Přední náboj | Shimano HBTC50015B CL / 15x100mm |
| Zadní náboj | Shimano FHTC500HMB CL / 12x142mm |
| Výplet | Black Spokes |
| Ráfky | Syncros X15 Disc |
| Přední plášť | Schwalbe G-One Overland 365 Performance 700x45C |
| Zadní plášť | Schwalbe G-One Overland 365 Performance 700x45C |

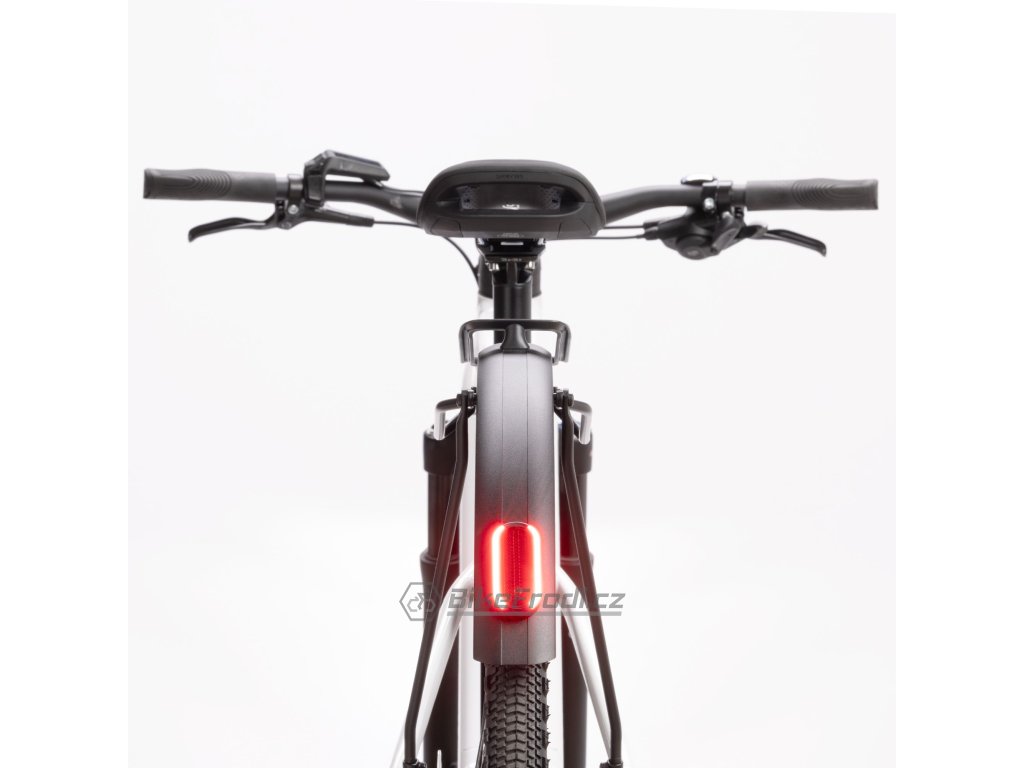

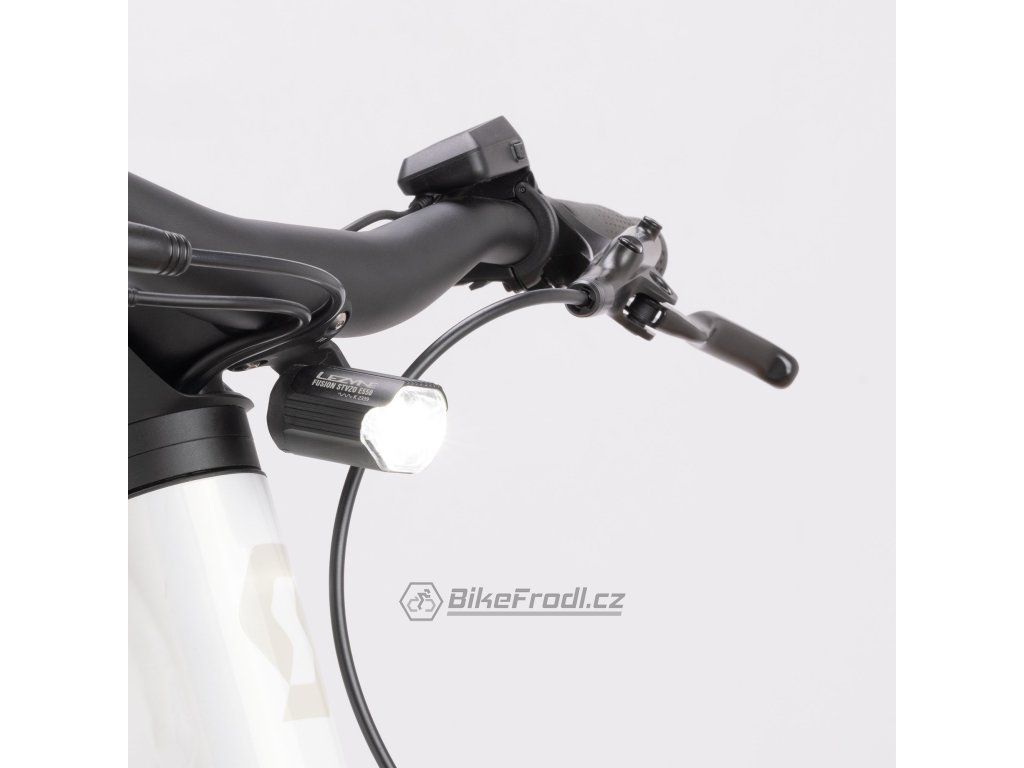

| Světla | Lezyne Fusion E550SM front light Rear Supernova TL3Z |
| Nosič & blatníky | Racktime Micro Rack SnapIt 2.0 8KG |
| Pedály | Marwi SP-827 |
| Extra | Alumee alloy profile Fender / Hebie Kickstand |
| Hmotnost v kg (cca) | 21.8 |
| Hmotnost v lb (cca) | 48.06 |
| Max. systémová hmotnost | 130kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| S / 900 | M / 900 | L / 900 | XL / 900 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 68.0 ° | 68.0 ° | 68.0 ° | 68.0 ° | ||||||||||||||
| B | head tube length / hauteur tube de direction | 110.0 mm | 4.3 in | 120.0 mm | 4.7 in | 130.0 mm | 5.1 in | 150.0 mm | 5.9 in | ||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 580.0 mm | 22.8 in | 600.0 mm | 23.6 in | 620.0 mm | 24.4 in | 640.0 mm | 25.2 in | ||||||||||
| D | standover height / hauteur entre-jambes | 740.0 mm | 29.1 in | 755.0 mm | 29.7 in | 787.0 mm | 31.0 in | 824.0 mm | 32.4 in | ||||||||||
| E | BB offset / deport axe de pédalier | -55.0 mm | -2.2 in | -55.0 mm | -2.2 in | -55.0 mm | -2.2 in | -55.0 mm | -2.2 in | ||||||||||
| F | BB height / hauteur axe de pédalier | 307.0 mm | 12.1 in | 307.0 mm | 12.1 in | 307.0 mm | 12.1 in | 307.0 mm | 12.1 in | ||||||||||
| G | wheel base / entraxe roues | 1,160.8 mm | 45.7 in | 1,182.1 mm | 46.5 in | 1,203.3 mm | 47.4 in | 1,225.8 mm | 48.3 in | ||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 400.0 mm | 15.7 in | 440.0 mm | 17.3 in | 490.0 mm | 19.3 in | 540.0 mm | 21.3 in | ||||||||||
| J | seat angle / angle tube de selle | 75.0 ° | 75.0 ° | 75.0 ° | 75.0 ° | ||||||||||||||
| K | chainstay / longueur des bases | 475.0 mm | 18.7 in | 475.0 mm | 18.7 in | 475.0 mm | 18.7 in | 475.0 mm | 18.7 in | ||||||||||
| L | reach / reach | 419.3 mm | 16.5 in | 436.8 mm | 17.2 in | 454.4 mm | 17.9 in | 469.4 mm | 18.5 in | ||||||||||
| M | stack / stack | 599.6 mm | 23.6 in | 608.9 mm | 24.0 in | 618.2 mm | 24.3 in | 636.7 mm | 25.1 in | ||||||||||
| N | stem length / longueur potence | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | 70.0 mm | 2.8 in | ||||||||||
| 0 | trail / chasse au sol | 96.6 mm | 3.8 in | 96.6 mm | 3.8 in | 96.6 mm | 3.8 in | 96.6 mm | 3.8 in |
