Celodpružený Axis eRIDE - dokonalé hybridní elektrokolo. Kompromis mezi městským a all-terain kolem, pohodlný na stezce i v terénu, připravený odvézt vše potřebné, kamkoli se vám zamane, o víkendu nebo při dojíždění ve všední dny.

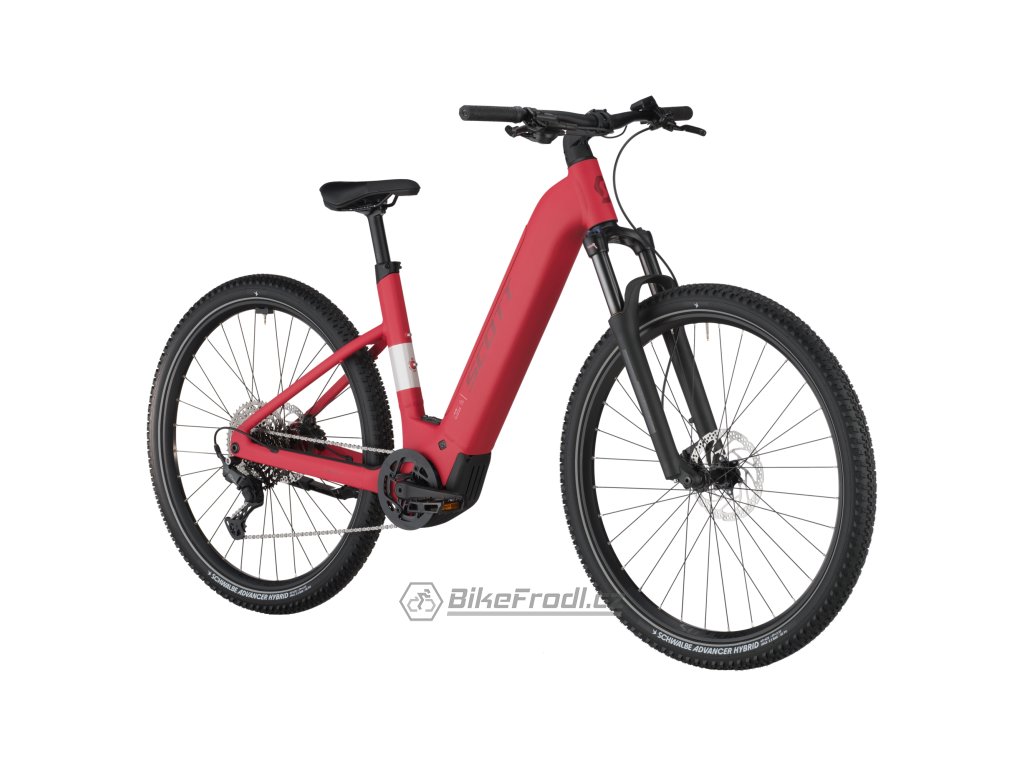

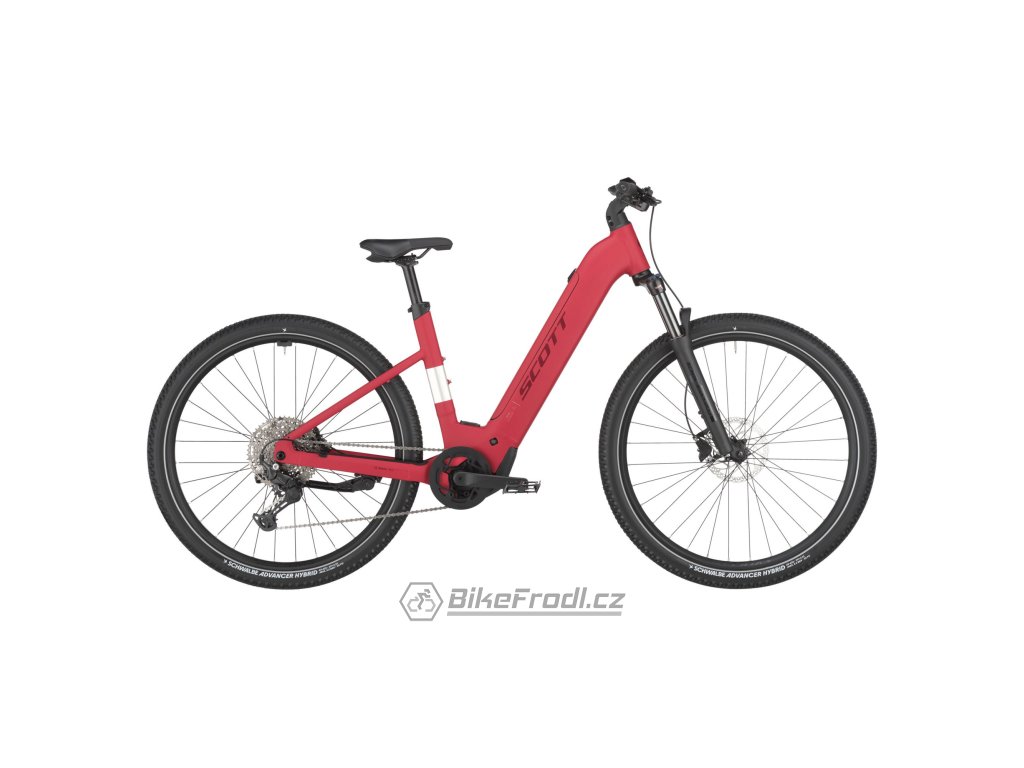

Trekingové elektrokolo SCOTT Axis 30 Wave
Dokonalý prostředek na cestování městem i na horskou cyklistiku.
Klíčové vlastnosti
- Vidlice Suntour, zdvih 120 mm
- Shimano CUES 11 rychlostí
- Diskové brzdy Shimano
- Adaptér Syncros na připojení vozíku za kolo
- Přední světlo Lezyne
Technologie
HEAVY-DUTY REAR RACK AND POWERFUL LIGHTS
Planning to carry a heavy load? No problem. The e-bike comes with a heavy-duty rear rack that supports up to 27 kg, perfect for a kids’ seat as well. Compatible with the Racktime Snap it 2.0 system adapter, the bike also features a powerful Lezyne front light and Syncros rear light: the rear light, integrated into the rear rack, is still visible with a kids’ seat mounted and thanks to its wraparound design, ensures visibility from a broader spectrum of angles.
SYNCROS ADAPTER FOR BIKE TRAILER
Need to bring your kids or pets along for the ride or just carry your grocery shopping bags? No problem! Our Syncros team has designed a thru-axle which enables you to tow any bike or cargo trailer so you can enjoy your time with your loved ones on your e-bike.

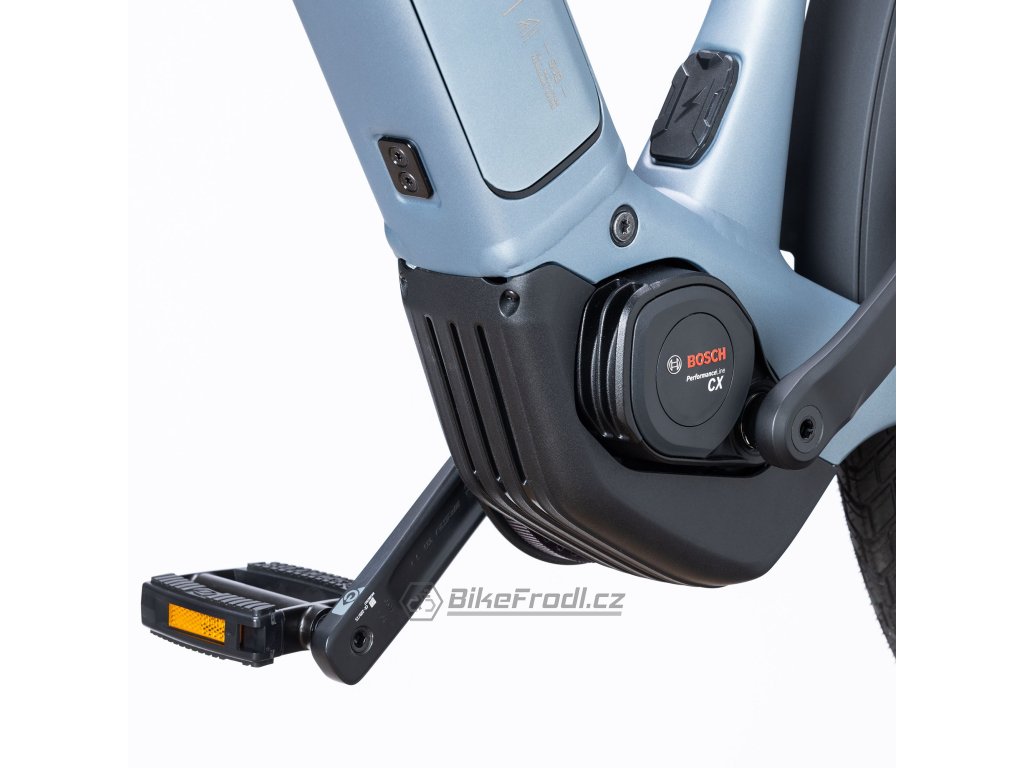

BOSCH EBIKE SYSTEM - 600 WH BATTERY
Reliability is key when it comes to e-Bike systems and Bosch is among the leaders. With the new Performance CX drive unit of 85 Nm, paired with the powerful, integrated PowerTube 600 WH battery, you can simply enjoy your ride. And if that’s still not enough, the e-bike is compatible with the Bosch PowerMore 250 range extender. The battery weight is also reduced to 3.9 kg thanks to its high energy density 205WH/kg.
SYNCROS COCKPIT
The new Syncros cockpit, equipped with an adjustable stem, gives the handlebar a sleek and attractive look.
AXIS 30 GEOMETRY
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a low step-through called “wave”, which is easier to mount and dismount. Pick the one that fits best suits you.
Technická specifikace
| Rám | Alloy S-XL=29" / 6061 Alloy custom butted tubing Top extraction battery UDH Interface / 12x148mm with 52mm Chainline |
| Zdvih | 120mm |
| Vidlice | SR Suntour XCM34 LO Coil / Tapered / 15x110 bolt Axle / Lock Out / 120mm Travel |
| Pohonná jednotka | Bosch Performance CX EU: 25kmh |
| Baterie | PowerTube 600Wh |
| Displej | Bosch Purion 200 |
| Nabíječka | 2A Charger |
| Přehazovačka | Shimano CUES RD-U6000GS 11 Speed |
| Řazení | Shimano SL-U600011RC |
| Kliky | FSA CK-220 165mm |
| Převodník | FSA 36T w/Chain Guard |
| Řetěz | Shimano LG500 |
| Kazeta | Shimano CS-LG40011 11-50T 11 Speed |
| Brzdy | Shimano BR-MT200 Disc Brakes |
| Rotor | Front: SM-RT30 CL 180mm / Rear: SM-RT30 CL 180mm |
| Řidítka | Syncros 3.0 720mm / 31.8mm / Backsweep 9° / 12mm rise Syncros Lock On Grip |
| Představec | Syncros |
| Sedlovka | Syncros M3.0 / 31.6 |
| Sedlovka | Syncros Capilano |
| Hlavové složení | Acros / 1.5"- 1.5" semi integ. OD 50/61mm / ID 44/55mm |
| Přední náboj | Shimano HB-TC50015BB CL / 15x110mm |
| Zadní náboj | Shimano FH-TC500HMBB CL / Boost 12x148mm |
| Výplet | Black Spokes |
| Ráfky | Syncros X18 Disc |
| Přední plášť | Schwalbe Advancer 60-622 Wired |
| Zadní plášť | Schwalbe Advancer 60-622 Wired |
| Pedály | VP VPE-506 |
| Extra | Ursus Kickstand |
| Hmotnost v kg (cca) | 28.2 |
| Hmotnost v lb (cca) | 62.17 |
| Max. systémová hmotnost | 160kg Celková hmotnost zahrnuje kolo, jezdce, vybavení a případné další zavazadlo |
Geometrie
| S / 900 | M / 900 | L / 900 | XL / 900 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle / angle tube de direction | 68.2 ° | 68.2 ° | 68.2 ° | 68.2 ° | ||||||||||||||
| B | head tube length / hauteur tube de direction | 160.0 mm | 6.3 in | 160.0 mm | 6.3 in | 170.0 mm | 6.7 in | 170.0 mm | 6.7 in | ||||||||||
| C | top tube horizontal / longueur horizontale tube supérieur | 575.0 mm | 22.6 in | 595.0 mm | 23.4 in | 615.0 mm | 24.2 in | 615.0 mm | 24.2 in | ||||||||||
| D | standover height / hauteur entre-jambes | 638.0 mm | 25.1 in | 633.0 mm | 24.9 in | 630.0 mm | 24.8 in | 630.0 mm | 24.8 in | ||||||||||
| E | BB offset / deport axe de pédalier | -75.5 mm | -3.0 in | -75.5 mm | -3.0 in | -75.5 mm | -3.0 in | -75.5 mm | -3.0 in | ||||||||||
| F | BB height / hauteur axe de pédalier | 299.5 mm | 11.8 in | 299.5 mm | 11.8 in | 299.5 mm | 11.8 in | 299.5 mm | 11.8 in | ||||||||||
| G | wheel base / entraxe roues | 1,190.0 mm | 46.9 in | 1,210.0 mm | 47.6 in | 1,232.0 mm | 48.5 in | 1,232.0 mm | 48.5 in | ||||||||||
| H | BB center to toptube center / dist. boitier - milieu tube supérieur | ||||||||||||||||||
| I | BB center to top of seattube / dist. boitier - sommet tube de selle | 440.0 mm | 17.3 in | 480.0 mm | 18.9 in | 520.0 mm | 20.5 in | 560.0 mm | 22.0 in | ||||||||||
| J | seat angle / angle tube de selle | 76.9 ° | 76.9 ° | 76.9 ° | 76.9 ° | ||||||||||||||
| K | chainstay / longueur des bases | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | 482.0 mm | 19.0 in | ||||||||||
| L | reach / reach | 413.0 mm | 16.3 in | 433.0 mm | 17.0 in | 450.0 mm | 17.7 in | 450.0 mm | 17.7 in | ||||||||||
| M | stack / stack | 696.0 mm | 27.4 in | 688.0 mm | 27.1 in | 705.0 mm | 27.8 in | 705.0 mm | 27.8 in | ||||||||||
| N | stem length / longueur potence | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | 90.0 mm | 3.5 in | ||||||||||
| 0 | trail / chasse au sol | 100.0 mm | 3.9 in | 100.0 mm | 3.9 in | 100.0 mm | 3.9 in | 100.0 mm | 3.9 in |
